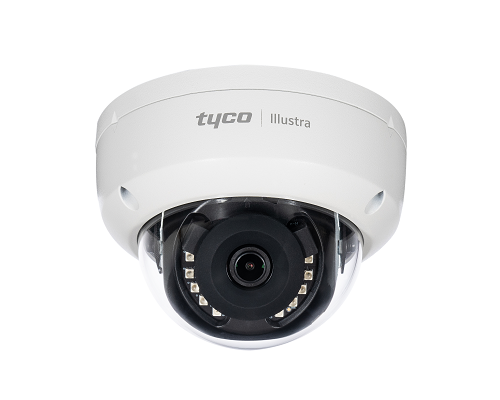

ExacqVision - TCCES02D07256 - Cloud Camera Essentials 2MP Mini Dome 2.8 TDNIR Indoor/Outdoor 256GB Internal Storage
Part number:
TCCES02D07256
Price:
2MP INDOOR/OUTDOOR DOME 2.8MM
1080 HD Night Vision Wide Dynamic Range Camera, H.265 2.8mm Focal Indoor/ Outdoor IP67 Corridor Mode
- • Factory Focused
- • Field of view: Wide Angle 110°/60°, Aperture: F/1.8
- • Dimensions (82mm height, 110mm width), Weight 0.53kg (1.16 lbs)
Essentials Mini-Dome camera provides up to 1080p resolution with IR illumination to manage low light scenes. The affordable cameras capture video in a variety of lighting conditions with features such as True Day/ Night and Wide Dynamic Range. Supports both H.265 and H.264 codecs and one-touch auto-focus. Rated IP67. The Essential Mini-Dome also features corridor mode which allows cameras to maximize video surveillance in narrow vertical situations.
| Operational | |
| Resolution & Aspect Ratio | 1920 x 1080 (1080p) 16:9 |
| Max Frame Rate | 30fps |
| Video Compression | H.264, H.265, MJPEG |
| Video Streams | Dual Stream with both streams at a maximum of 1080p @ 30ips |
| Imager | 1/2.8”, Sony CMOS |
| S/N Ratio | More than 50dB |
| Image Orientation Settings | Off, flip, mirror, both |
| Shutter Speed | 1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) / (Shutter-priority:default NTSC=1/60s, PAL=1/50s) |
| Minimum Illumination Color | B/W: 0.08 Lux (50IRE) | 0.03 Lux (30IRE) With IR: 0.05 Lux (50IRE) | 0.02 Lux (30IRE) 0.0 Lux |
| Day/Night | True Day/Night with ICR |
| IR LEDS | Yes |
| IR Distance | 30m |
| Noise Reduction | 3D |
| Wide Dynamic Range | True WDR 120dB |
| ONVIF-Compliant | Profile S/G/Q |
| Motion Detection Zones | 3 |
| Blur Detection Zones | Yes |
| Privacy Zones | 8 |
| Image Rotation | Corridor |
| Analog Video Output | No |
| Audio | No |
| Simultaneous Users | 5 |
| Network | |
| Ethernet Interface | IEEE 802.3, 10/100 Base-T/TX, auto sensing, 1 x RJ45 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, NTP, SMTP, WSSecu- rity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, SNMP, UPnP, RTSP, LLDP |
| Onboard Storage | |
| Card Support | SDXC up to 256GB |
| Pre-Alarm Recording | 1-10 sec |
| Recording Format | AVI |
| Recording Trigger | Bur Detection, Motion Detection |
| VideoEdge TrickleStor | No |
| Electrical | |
| Power Input | DC12V; PoE IEEE 802.3af Class 3 |
| Maximum Power Draw | 9.9W |
| Physical | |
| Housing Color | White RAL 9003 |
| Operating Temperature | Cold Start Temperature: -200 C to 600 C (-40 F to 1400 F) Operating Temperature: -300 C to 600 C (-220 F to 1400 F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Outdoor Rating | IP67 |
| Regulatory | |
| Safety | UL 62368-1, IEC 62368-1, EN 62338-1, IEC 62471 |
| Emissions | FCC CFR 47, Part 15 Class A, EN 55032 |
| Immunity | EN 50130-4, EN 61000-3-2, EN 61000-3-3 |
| Environment | RoHS, Reach, WEEE |
| Outdoor Rating | IP67 |
| Configuration Management | |
| Web Browser | IE 11 or above, Firefox, Chrome, Safari, Microsoft Edge |
