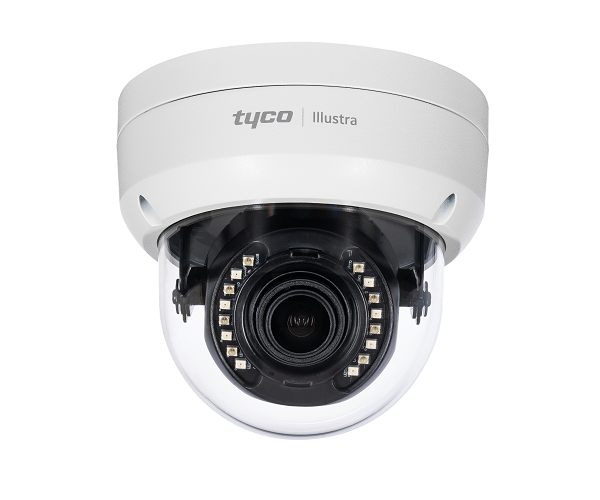

2MP INDOOR/OUTDOOR DOME 2.7-13.5MM VARIFOCAL
1080 HD Night Vision IR H.265 Wide Dynamic Range Camera, 2.7-13.5mm Varifocal Indoor/Outdoor IP67 Corridor Mode
- • Remote On-Push Focus and Remote Manual Adjustment
- • Field of view: Wide Angle 100°/53°, Telephoto 34°/20°, Aperture: F/1.7 (Wide) ~ F/2.8 (Telephoto)
- • Dimensions (113mm height, 124mm width), Weight 0.65kg (1.43 lbs)
The Essentials Varifocal Mini-Dome camera offers resolutions up to 1080p with IR illumination to manage low light scenes. Features True Day/Night and Wide Dynamic Range. Supports both H.265 and H.264 codecs resulting in reduced bandwidth and storage requirements. Supports one-touch auto-focus and motorized zoom. Rated IP67 for an additional degree of environmental protection. Features corridor mode which maximizes video surveillance in narrow vertical situations. Ideal for hallways, retail aisles, and tunnels this mode creates a unique high quality, vertical video.
| Operational | |
| Resolution & Aspect Ratio | 1920 x 1080 (1080p) 16:9 |
| Max Frame Rate | 30fps |
| Video Compression | H.264, H.265, MJPEG |
| Video Streams | Dual Stream with both streams at a maximum of 1080p @ 30ips |
| Imager | 1/2.8”, Sony CMOS |
| S/N Ratio | More than 50dB |
| Image Orientation Settings | Off, flip, mirror, both |
| Shutter Speed | 1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) / (Shutter-priority:default NTSC=1/60s, PAL=1/50s) |
| Minimum Illumination Color | B/W: 0.08 Lux (50IRE) | 0.03 Lux (30IRE) With IR: 0.05 Lux (50IRE) | 0.02 Lux (30IRE) 0.0 Lux |
| Day/Night | True Day/Night with ICR |
| IR LEDS | Yes |
| IR Distance | 30m |
| Noise Reduction | 3D |
| Wide Dynamic Range | True WDR 120dB |
| ONVIF-Compliant | Profile S/G/Q |
| Motion Detection Zones | 3 |
| Blur Detection Zones | Yes |
| Privacy Zones | 8 |
| Image Rotation | Corridor |
| Analog Video Output | No |
| Audio | No |
| Simultaneous Users | 5 |
| Network | |
| Ethernet Interface | IEEE 802.3, 10/100 Base-T/TX, auto sensing, 1 x RJ45 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, NTP, SMTP, WSSecu- rity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, SNMP, UPnP, RTSP, LLDP |
| Onboard Storage | |
| Card Support | SDXC up to 256GB |
| Pre-Alarm Recording | 1-10 sec |
| Recording Format | AVI |
| Recording Trigger | Bur Detection, Motion Detection |
| VideoEdge TrickleStor | No |
| Electrical | |
| Power Input | DC12V; PoE IEEE 802.3af Class 3 |
| Maximum Power Draw | 9.9W |
| Physical | |
| Housing Color | White RAL 9003 |
| Operating Temperature | Cold Start Temperature: -200 C to 600 C (-40 F to 1400 F) Operating Temperature: -300 C to 600 C (-220 F to 1400 F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Outdoor Rating | IP67 |
| Regulatory | |
| Safety | UL 62368-1, IEC 62368-1, EN 62338-1, IEC 62471 |
| Emissions | FCC CFR 47, Part 15 Class A, EN 55032 |
| Immunity | EN 50130-4, EN 61000-3-2, EN 61000-3-3 |
| Environment | RoHS, Reach, WEEE |
| Outdoor Rating | IP67 |
| Configuration Management | |
| Web Browser | IE 11 or above, Firefox, Chrome, Safari, Microsoft Edge |
