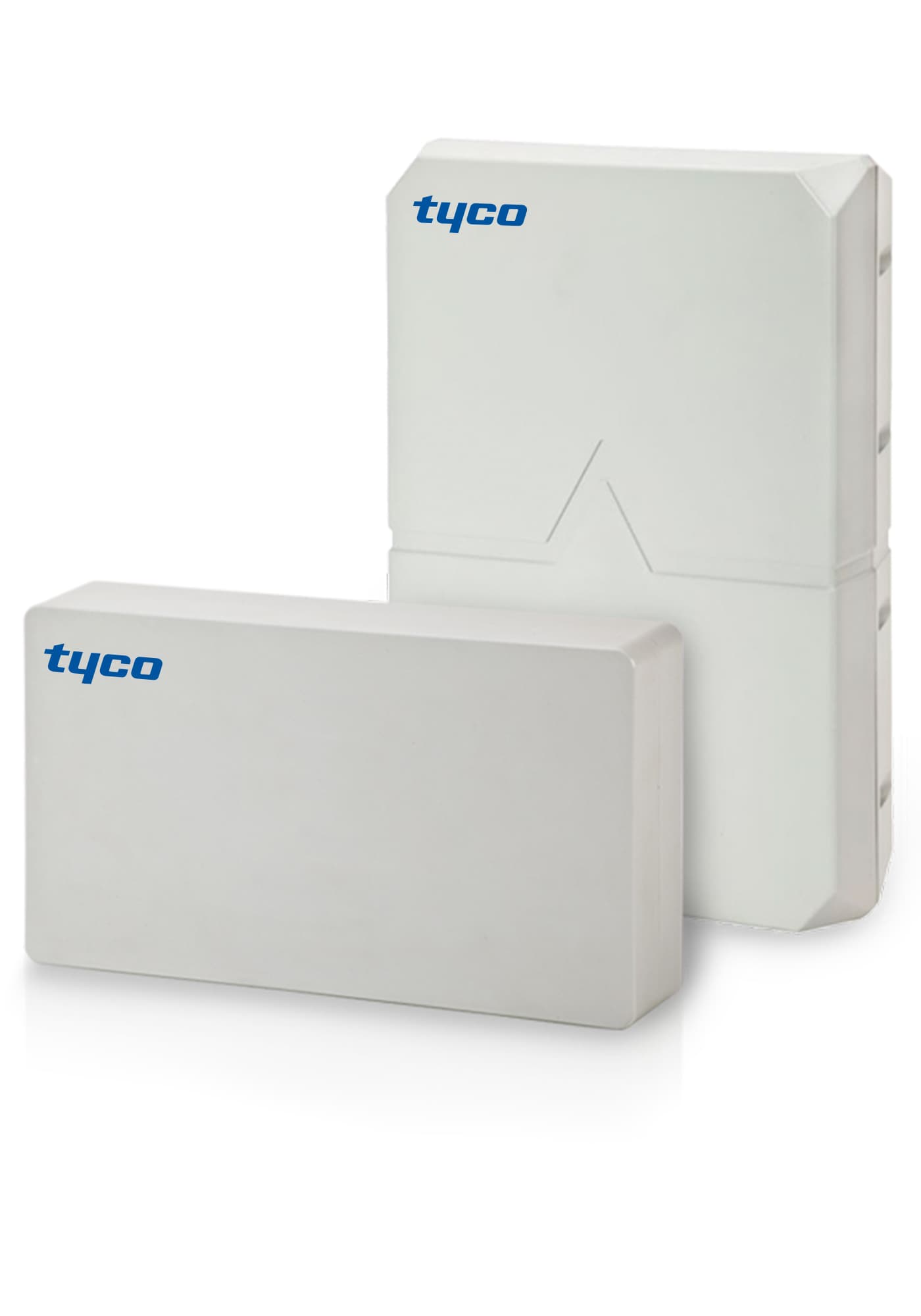

Tyco Radar Detection
Tyco Radar Detection provides a low-cost radar detection solution that easily integrates into new and existing Exacq VMS systems while providing 24/7 coverage to any size site. With easy installation and seamless maintenance, this family of radar sensors results in simplified multi-sensor integrations and auto PTZ slew-to-cue, all while ensuring performance no matter the weather conditions.
Easily Integrated with exacqVision VMS Software
Integrating easily with exacqVision VMS software, Tyco Radar Detection provides an easy-to-use, flexible, and scalable solution with video analytics for license plate recognition, heat mapping, and intrusion data. exacqVision users can effectively monitor video, audio, and data in real time.
Safeguard Against Cyber Attacks Across Devices
Tyco Radar Detection is designed to be resilient against cyber-threats. Our Tyco Radar Detection products are gated, analyzed, tested, and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program for every consecutive release. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.
| Specifications | 250 | 500 | 1000 |
|---|---|---|---|
| Sensor type | High resolution MIMO digital beam-forming radar | High resolution MIMO digital beam-forming radar | High resolution solid state ground based radar |
| Frequency | C-Band | C-Band | C-Band |
| Detection range | Up to 250m | Up to 100m Drone 400m Human 600m Vehicle/Boat | Up to 200m Drone 800m Human 1,000m Vehicle/Boat |
| No moving parts | MTBF of 50,000 hours | MTBF of 50,000 hours | MTBF of 50,000 hours |
| Built-in tracker | Extremely low required bandwidth (<1kbps) | Extremely low required bandwidth (<1kbps) | Extremely low required bandwidth (<1kbps) |
| Scan rate | 2 scans per second | 2 scans per second | 2 scans per second |
| Azimuth coverage | 120° | 120° | 100° |
| Elevation coverage | 30° | 30° | 30° |
| High Range accuracy | <1.0m | <1.0m | <1.0m |
| Azimuth accuracy | 1° | 1° | 1° |
| Target detection speed | 0.3 - 30m/sec | 0.3 - 30m/sec | 0.3 - 30m/sec |
| Power | 48v, 3.5W | 48v, 3.5W | 48v, 3.5W |
| System interface | Ethernet, POE - IEEE 802.3at Type 1 (802.3af) & Type 2 | Ethernet, POE - IEEE 802.3at Type 1 (802.3af) & Type 2 | Ethernet, POE - IEEE 802.3at Type 1 (802.3af) & Type 2 |

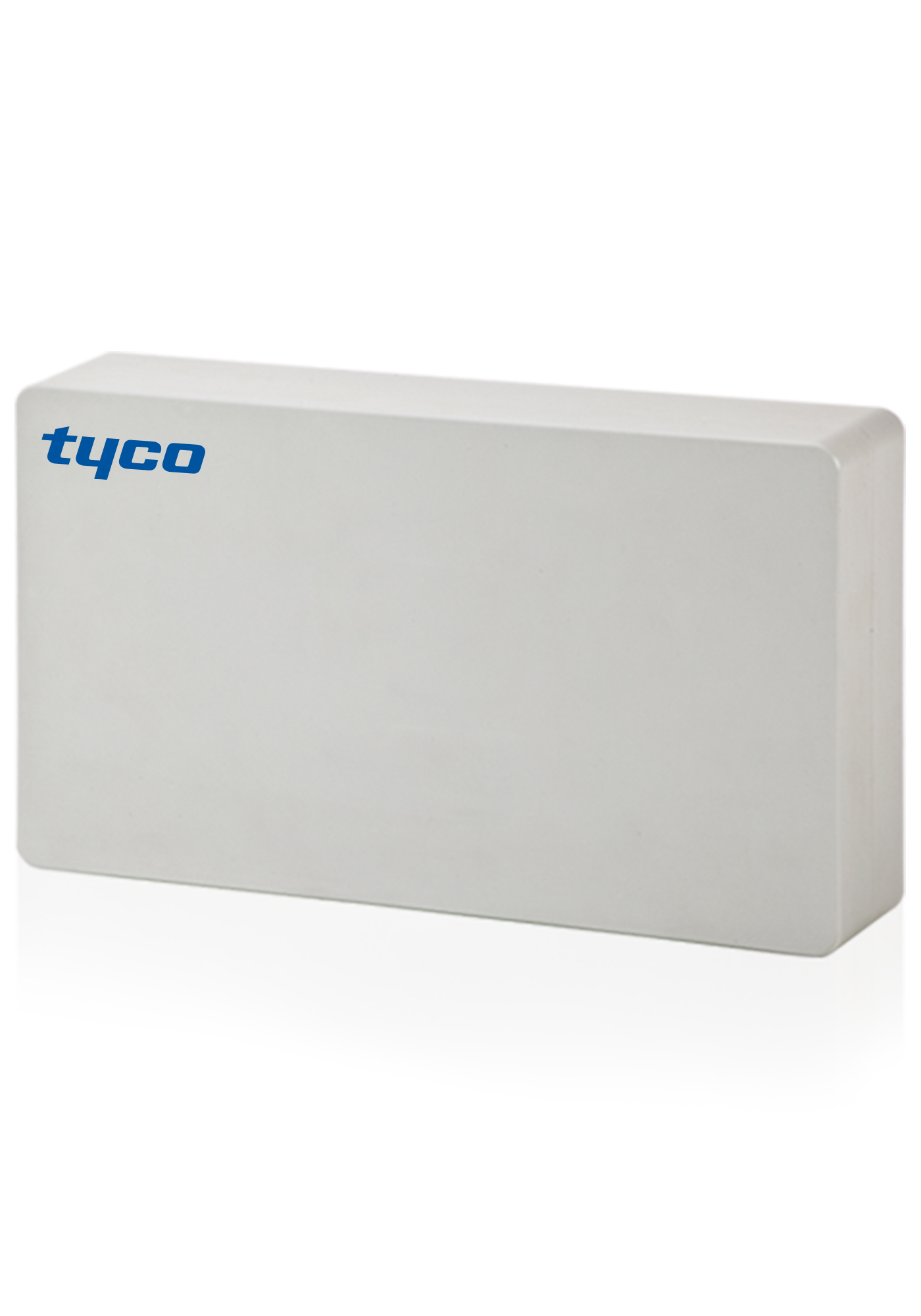

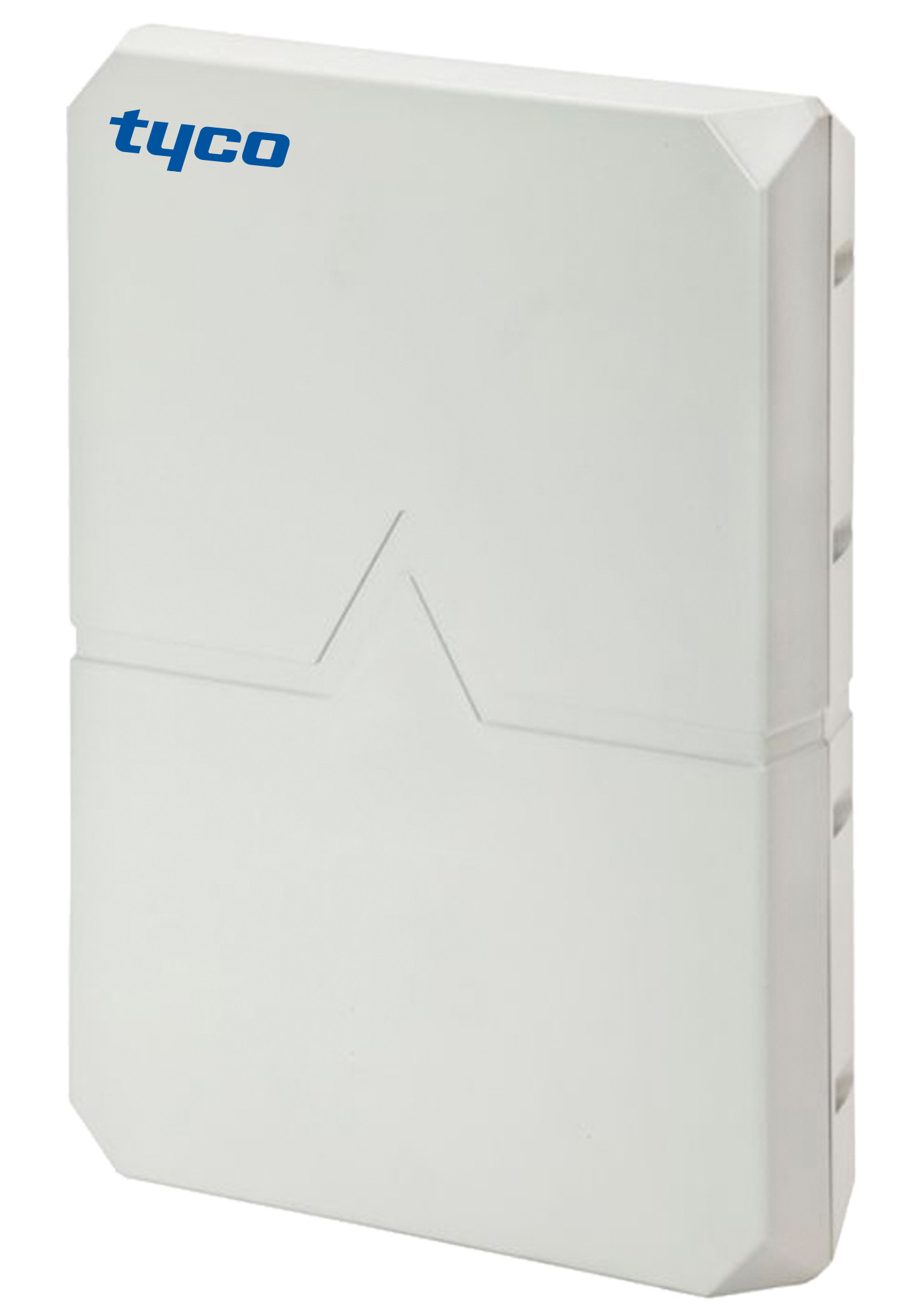

| Dimensions (W x H X D) | 250 x 150 x 59 mm 9.8 x 5.8 x 2.3 in | 250 x 150 x 59 mm 9.8 x 5.8 x 2.3 in | 250 x 300 x 80 mm 9.8 x 11.8 x 3.15 in |
| Weight | 1.5 Kg 3.3 lbs | 1.5 Kg 3.3 lbs | 3 Kg 6.6 lbs |
| Environmentals | FCC & UL Compliant | Full outdoor functionality, IP67, FCC & CE Compliant | FCC & CE Certified |
| Approvals | FCC, UL | FCC, UL | FCC, UL |
| Operating temperature | -45°C to +85°C -49°F to 185°F | -45°C to +85°C -49°F to 185°F | -45°C to +85°C -49°F to 185°F |
