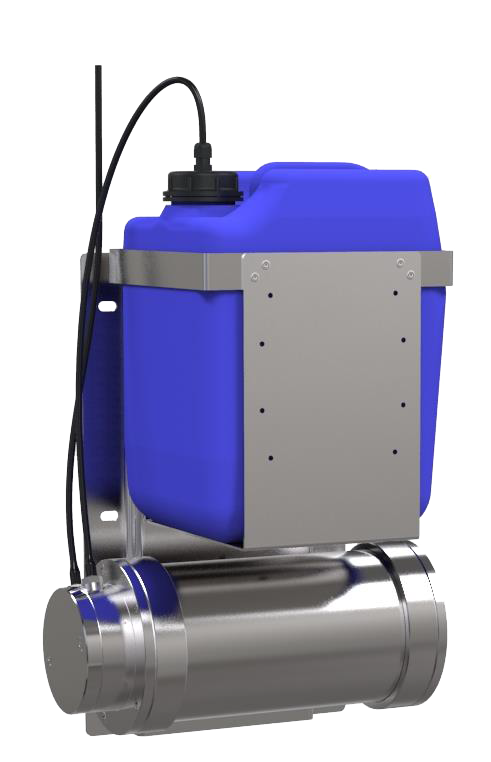

Hanwha - HT-E-XWP10UL - Explosion Proof Accessories Washer Tank
Part number:
HT-E-XWP10UL
Price:
Stainless steel Washer tank for cameras with Wiper model (TNP-6320E2W, TNP-6320E2WF, TNP-6320E1W, TNP-6320E1WF, TNU positioning camera, TNO-6070E2WF, TNO-6320E2WF, TNO-6070E1W)
Features:
- Class 1 Division 1 and Zone 1 certified for US and Canada
- Electro-polished 316L stainless steel on all metal components
- NPT entries as standard
- Certified temperature from -58˚F to +158˚F (ranging from T4 - T6)
- Pump is powered directly from the camera station telemetry card
- Compatible with:
TNP-6320E2W-Z, TNP-6320E2WF-Z, TNP-6320E1W-Z,
TNP-6320E1WF-Z, TNO-6070E2WF-Z, TNO-6320E2WF-Z,
& TNO-6070E1W-Z
| SPECIFICATIONS | HT-E-XWP10UL |
| Capacity | 10 liters (2.64 gallons) |
| Head Height | Up to 40 feet* (Measured using pure water at ambient 70°F Units supplied with 33 feet of hose) |
| Electrical | 12° |
| Voltage | 24 VAC, 50/60Hz |
| Power Consumption | Maximum 14 watts |
| Construction | 316L stainless steel |
| Mounting | 316L stainless steel back plate |
| Cable Entry | 3 X ¾” NPT (2 certified stopping plugs fitted as standard) |
| Certifications | cULus Class I, Division 1, Groups B, C, D, T4+ -50°C to +70°C (-58°F to +158°F) Class II, Division 1, Groups E, F, G IP67 Class 1 Zone 1 A Ex d IIB + Hydrogen T4 (T5 On Request) On Request: T5 -50°C to +70°C (-58°F to +158°F), T6 -50°C to +50°C (-58°F to +122°F) UL Listing: E477542 |
| Operating Temperature | -4°F to +140°F (-40°C to 60°C) (dependant on wash fluid freezing point) |
| Weight | 43Lbs (19.5Kg) empty |
| Ingress Protection Rating | IP66/67 (excluding washer bottle and hose) |
