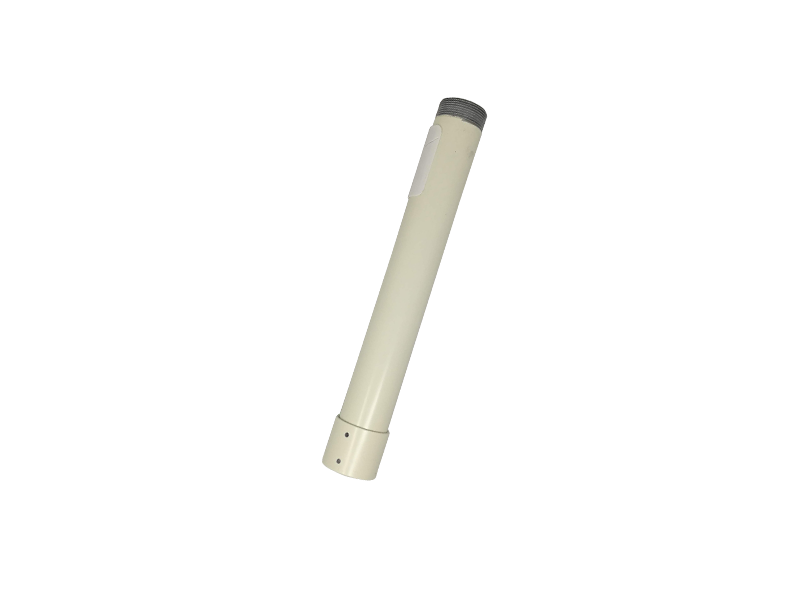

Hanwha - SBP-302CM-12 - Extension pendant pipe 12" long, fit the SBP-302CMB (Mounting backbox), SBP-302CMA (mounting plate), SBP-302CM (telescopic pendant mount) and the extension pipes SBP-302CM-12 and SBP-302CM-36
Part number:
SBP-302CM-12
Price:
Extension pendant pipe 12" long, fit the SBP-302CMB (Mounting backbox), SBP-302CMA (mounting plate), SBP-302CM (telescopic pendant mount) and the extension pipes SBP-302CM-12 and SBP-302CM-36
Features:
- Aluminum and steel construction
- 12 inch length
- Compatible with all ivory Hanwha Hanging Mounts
| Materials | Aluminum and steel |
| Dimensions (WxHxD) | Ø1.89" (Ø 48.0mm) Length: 14.56" (369.8mm) |
| Pipe Thread | 1.5" NPT male (top) / 1.5" NPT female (bottom) |
| Weight | 1lb (0.45kg) |
| Maximum Load | 30lb (13.6kg) |
| Color | Ivory |
| Optional Accessories | SBP-302CM telescopic pendant mount SBP-302CMA single joist ceiling mount adapter SBP-302CMB backbox for pendant and ceiling mount SBP-302CM-12 extension pipe, 12" SBP-302CM-36 extension pipe, 36" SBP-302CMS |
| Cable Routing | Cable hole |
Name
Description
Size
Downloads
File
SBP-302CM / 302CM-12 / 302CM-36 Specifications
1mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.8mb
File
SBP-302CM-12 / 302CM-36 Manual
0.5mb
File
SBP-302CM-12 CAD
1mb
