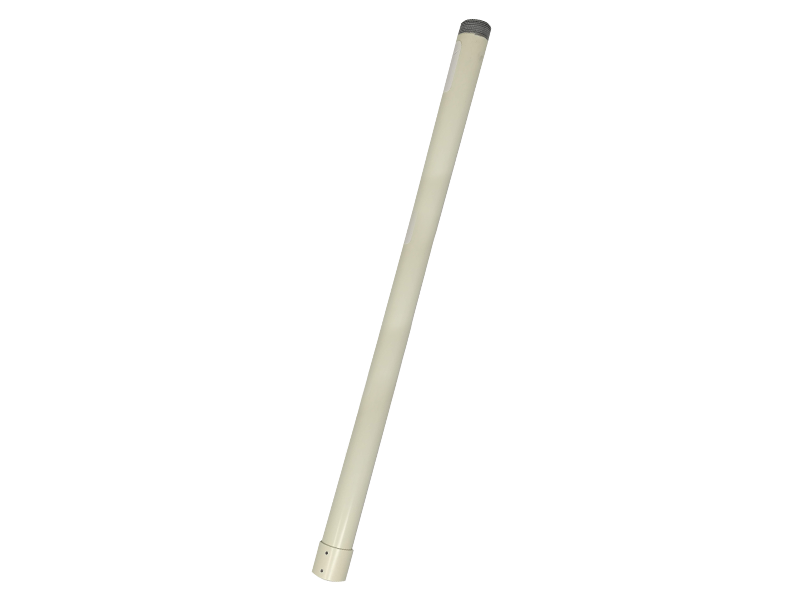

Hanwha - SBP-302CM-36 - Extension Pipe (Ivory)
Part number:
SBP-302CM-36
Price:
Extension pendant pipe 36" long, fit the SBP-302CMB (Mounting backbox), SBP-302CMA (mounting plate), SBP-302CM (telescopic pendant mount) and the extension pipes SBP-302CM-12 and SBP-302CM-36
Features:
- Aluminum and steel construction
- 36 inch length
- Compatible with all Ivory Hanwha Hanging Mounts
| Materials | Aluminum and Steel |
| Dimensions | Ø1.89" (Ø 48.0mm) Length: 38.55" (979.4mm) |
| Pipe Thread | 1.5" NPT male (top) / 1.5" NPT female (bottom) |
| Color | Ivory |
| Weight | 3lb (1.36kg) |
| Max Load | 30lb (13.6kg) |
| Optional Accessories | SBP-302CM telescopic pendant mount SBP-302CMA single joist ceiling mount adapter SBP-302CMB backbox for pendant and ceiling mount SBP-302CM-12 extension pipe, 12" SBP-302CM-36 extension pipe, 36" SBP-302CMS |
| Cable Routing | Cable hole |
| Applicable Mount | All Hanwha Hanging Mount (1.5" NPT) |
