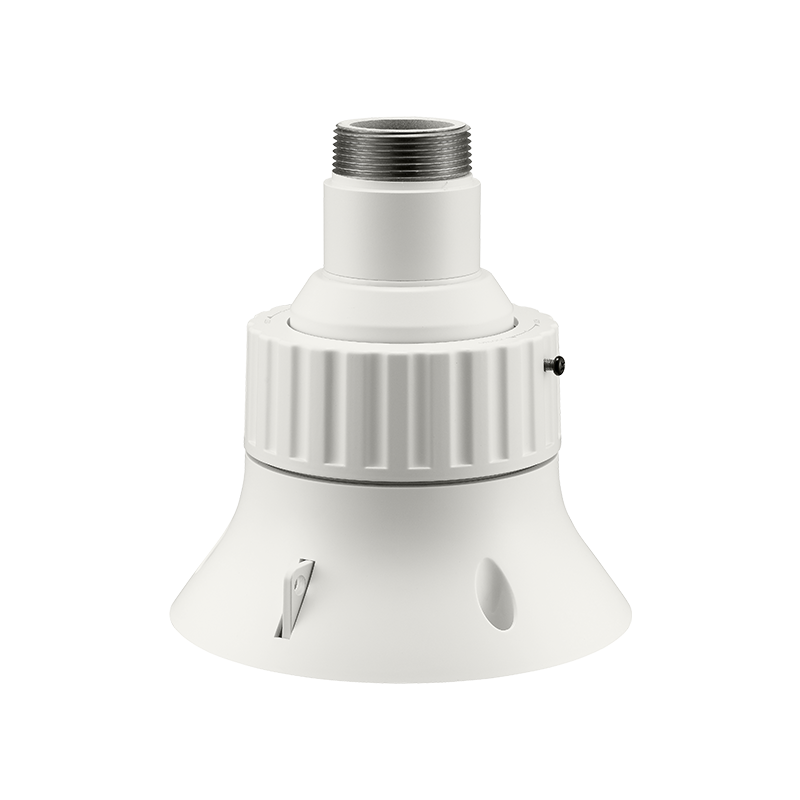

Hanwha - SBP-303HF - RJ-45 to Fiber mounting accessory for PTZ XNP-6320H/6321H, XNP-6550RH and QNP-6230H
Part number:
SBP-303HF
Price:
RJ-45 to Fiber mounting accessory for PTZ XNP-6320H/6321H, XNP-6550RH and QNP-6230H
Features :
- Aluminum
- LC SFP port type
- 100Mbps Ethernet speed (Default speed : 1000Mbps)
- IEEE 802.3u, IEEE 802.3z support
- Audio input/output, 3.5mm type
- 24V AC, IP66, IK10, -50°C to +55°C
- Mount screw size : PF 1 1/2"
| COMPATIBLE MODEL | |
| Camera List | XNP-6550RH/ 6371RH/ 6320H/ QNP-6230H/ 6230RH |
| EXTERNAL CONNECTION | |
| Alarm I/O | Input 4ea / Output 2ea |
| Remote Control Interface | RS-485/422 |
| Audio | Input/Output, 3.5mm type |
| CVBS | BNC Type, For Installation |
| Power Line | 24V AC, 2-wire |
| OPTICAL CHARACTERISTICS | |
| Support SFP Voltage | 3.3V Typical |
| Support SFP Current | 300mA Max |
| Support SFP Cage | Standard mini-SFP Cage (for 6.5mm pitch SFP) |
| Support SFP Port Type | LC Type |
| Required SFP Speed | 1250Mbps(For 1000Mbps Ethernet) 155Mbps(For 100Mbps Ethernet) |
| Required SFP’s BER (Bit Error Rate) | Max 10-12 |
| Transmission Method (Optical) | Mode Depends on SFP Module |
| Optical Mode (Long/Short Wave) | Mode Depends on SFP Module |
| Cable Insertion Loss(dB) | Mode Depends on SFP Module |
| NETWORK CHARACTERISTICS | |
| RJ-45 : Ethernet Speed | 100Mbps |
| RJ-45 : Ethernet Physical Layer | 100 Base-T |
| RJ-45 : Ethernet Standard | IEEE 802.3u Support |
| Speed Transition (100<>1000Mbps) | External Dip Switch |
| Fiber : Default Speed | 1000Mbps |
| Fiber : Ethernet Speed | 100Mbps, 1000Mbps |
| Fiber : Ethernet Physical Layer | 100 Base-FX, 1000 Base-X |
| Fiber : Ethernet Standard | IEEE 802.3u, IEEE 802.3z Support |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -50°C to +55°C / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Power Consumption | 4.1A, 92W Max (Heater ON) |
| Input Voltage / Current | 24V AC |
| MECHANICAL | |
| Colour / Material | Aluminum |
| Dimension (Ø x H) | Ø163.9 x H157.9mm Ø163.9 x H187.9mm (with NPT-Coupling) |
| Weight | 1.1kg 1.4kg (with NPT-Coupling) |
