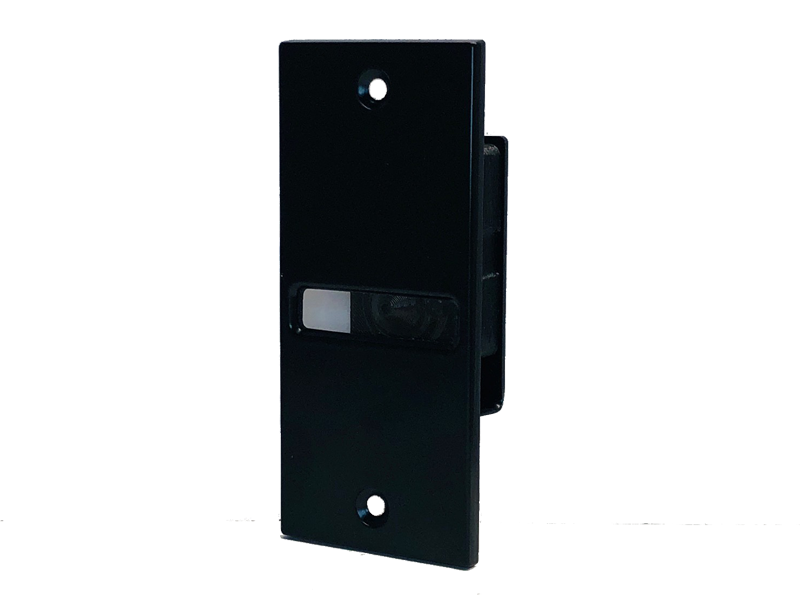

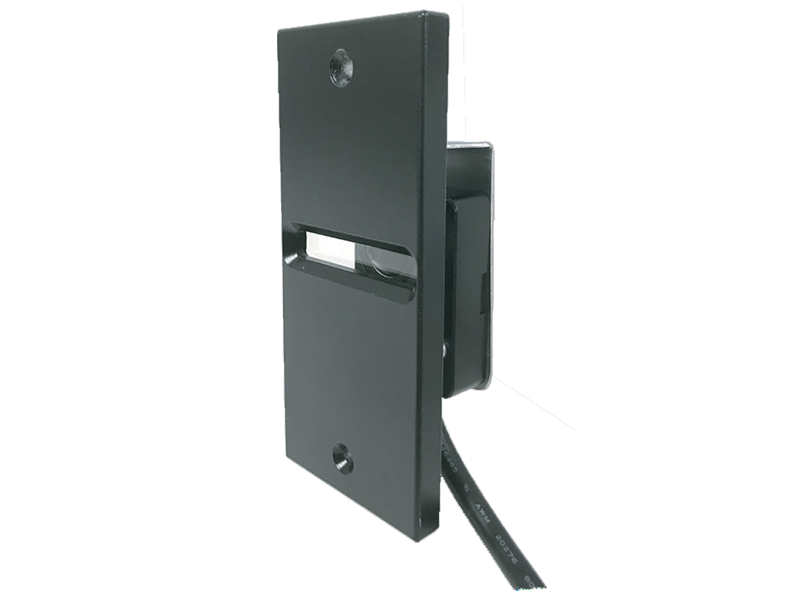

Hanwha - SHD-46VDB - Flush Door Jamb Lens Housing for SLA-T4680V lens (not included) and XNB-6001 (not included), black color
Part number:
SHD-46VDB
Price:
The SHD-46VDB provides an economical, integrated solution for any indoor flush mount application for Hanwha XNB-6001 / XNB-6002 / PNM-9000QB with SLA-T4680V / SLA-T4680VA lens module. Like all of our products, this mount is designed for quick, simple installation and servicing. Black finish.
Features:
- Compatible with XNB-6001 with SLA-T4680V
- Flexible panning ± 30 degrees
- Easy Installation
- Black or Silver color options to match the door jamb
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Operating Humidity | Less than 90% RH |
| Materials | Body:Outer Cover: High-Impact Polystyrene (HIPS), Bracket: Steel; black powder-coat Outer Cover: High-Impact Polystyrene (HIPS), Bracket: Steel; silver powder-coat Bubble: Acrylic |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Dimensions (WxHxD) | 1.76” x 4.01” x 1.11” (44.7 x 101.9 x 28.2mm) |
| Weight | 0.16 lb (72.57g) |
| Input Voltage | N/A |
| Power Consumption | N/A |
| Color | Black/Silver |
| Applicable Model | SLA-T4680V |
