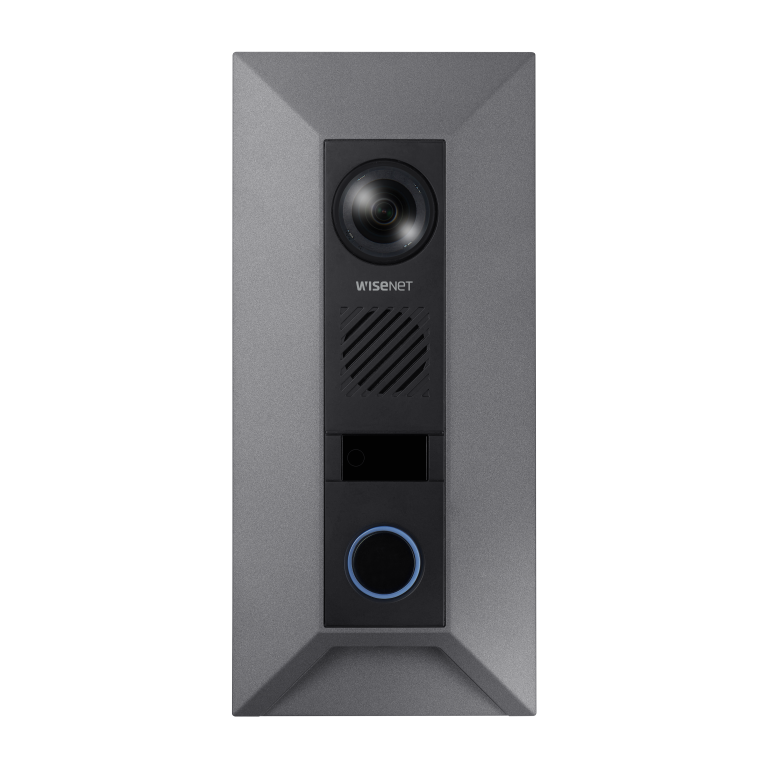

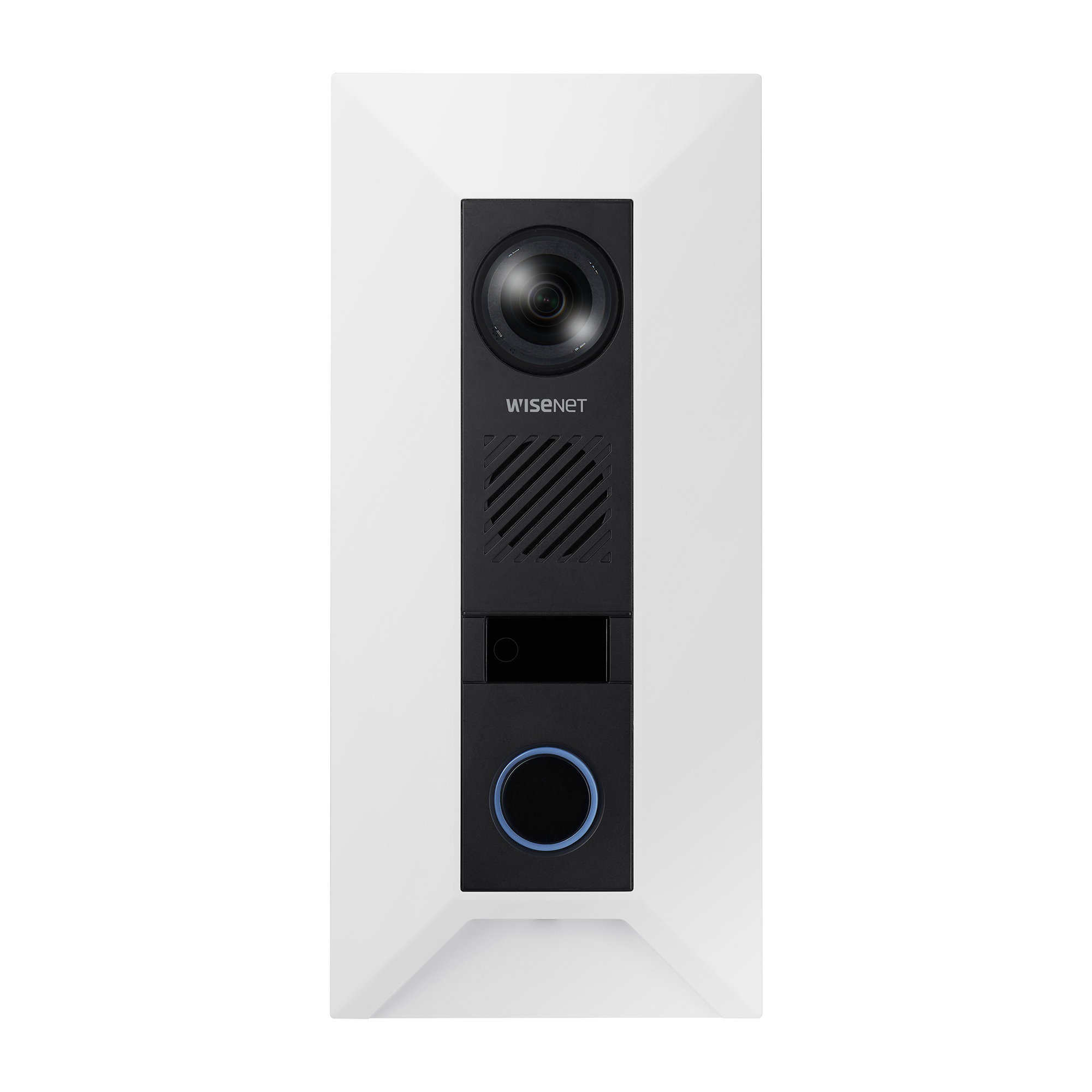

Hanwha - SHS-165F - Flush Mount For Video Intercom TID-600R
Part number:
SHS-165F
Price:

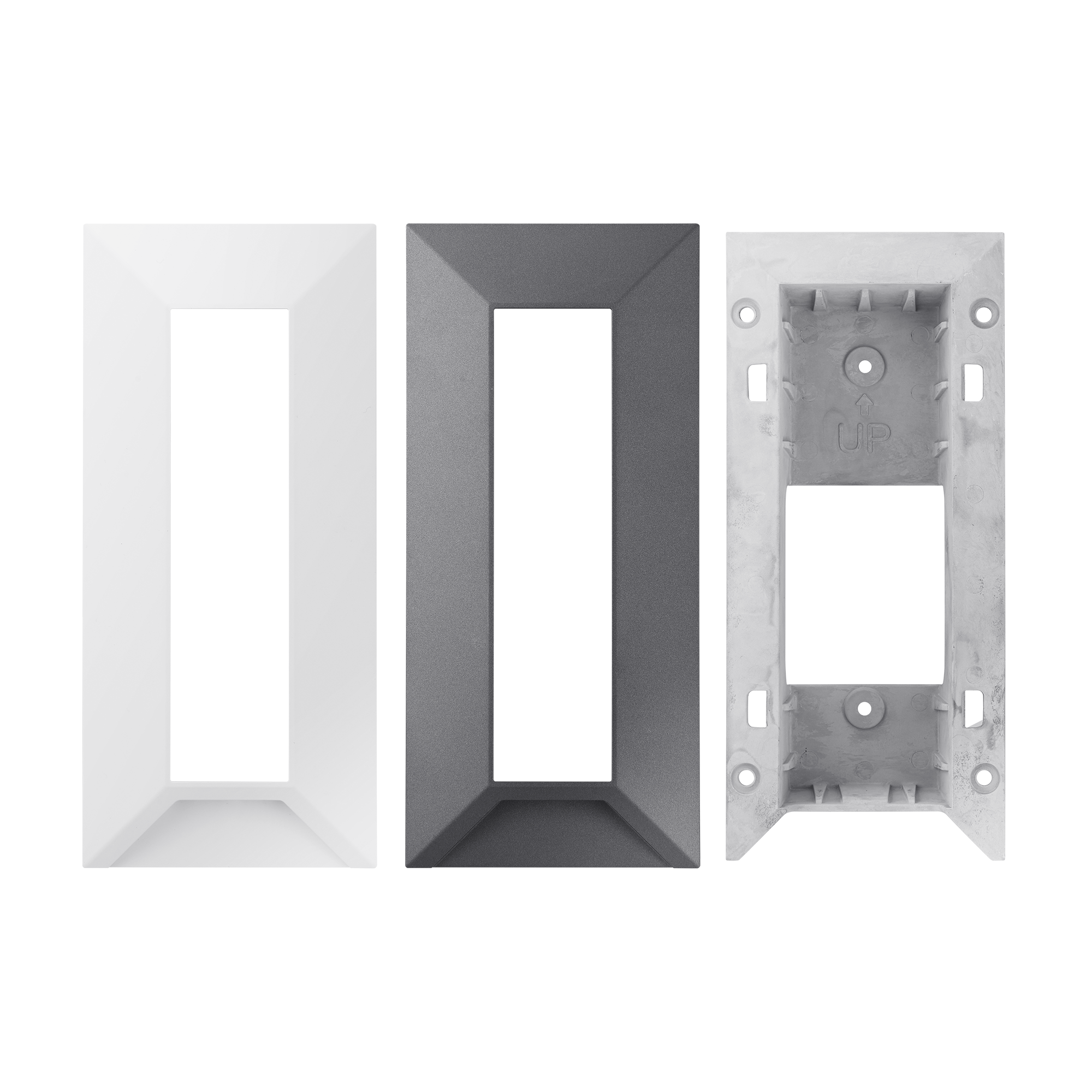

Flush Mount for TID-600R, 2 Cover plates included (White, Dark Grey)
Features:
- White & Dark Grey Covers
- Material : Poly Carbonate, Aluminum
- Dimensions : 98.2(W)x52.7(D)x214.3(H)mm(3.87x2.07x8.44in)
- Weight: 185g(0.41lb)
| Environmental | |
| Operationg Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~100% RH |
| Storage Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~100% RH |
| Mechanical | |
| Color | White, Dark gray |
| Material | Poly Carbonate, Aluminium |
| Product dimensions / weight | 98.2(W)x52.7(D)x214.3(H)mm(3.87x2.07x8.44"), 185g(0.41lb) |
| Supported products | TID-600R |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
Manual
1.4mb
File
Drawings
0.3mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.5mb
