Hanwha - SBO-090GP - Gang plate (for bullet) Adaptor plate for Single, Double, 4" Octagon Compatible with QNO-C8083R / QNO-C9083R / ANO-L6012R / ANO-L6022R / ANO-L6082R / ANO-L7012R / ANO-L7022R / ANO-L7082R

Hanwha - SBO-090GP - Gang plate (for bullet) Adaptor plate for Single, Double, 4" Octagon Compatible with QNO-C8083R / QNO-C9083R / ANO-L6012R / ANO-L6022R / ANO-L6082R / ANO-L7012R / ANO-L7022R / ANO-L7082R

Name: Hanwha - SBO-090GP - Gang plate (for bullet) Adaptor plate for Single, Double, 4" Octagon Compatible with QNO-C8083R / QNO-C9083R / ANO-L6012R / ANO-L6022R / ANO-L6082R / ANO-L7012R / ANO-L7022R / ANO-L7082R
Brand: Hanwha Vision
SKU: SBO-090GP

Part number:

SBO-090GP

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

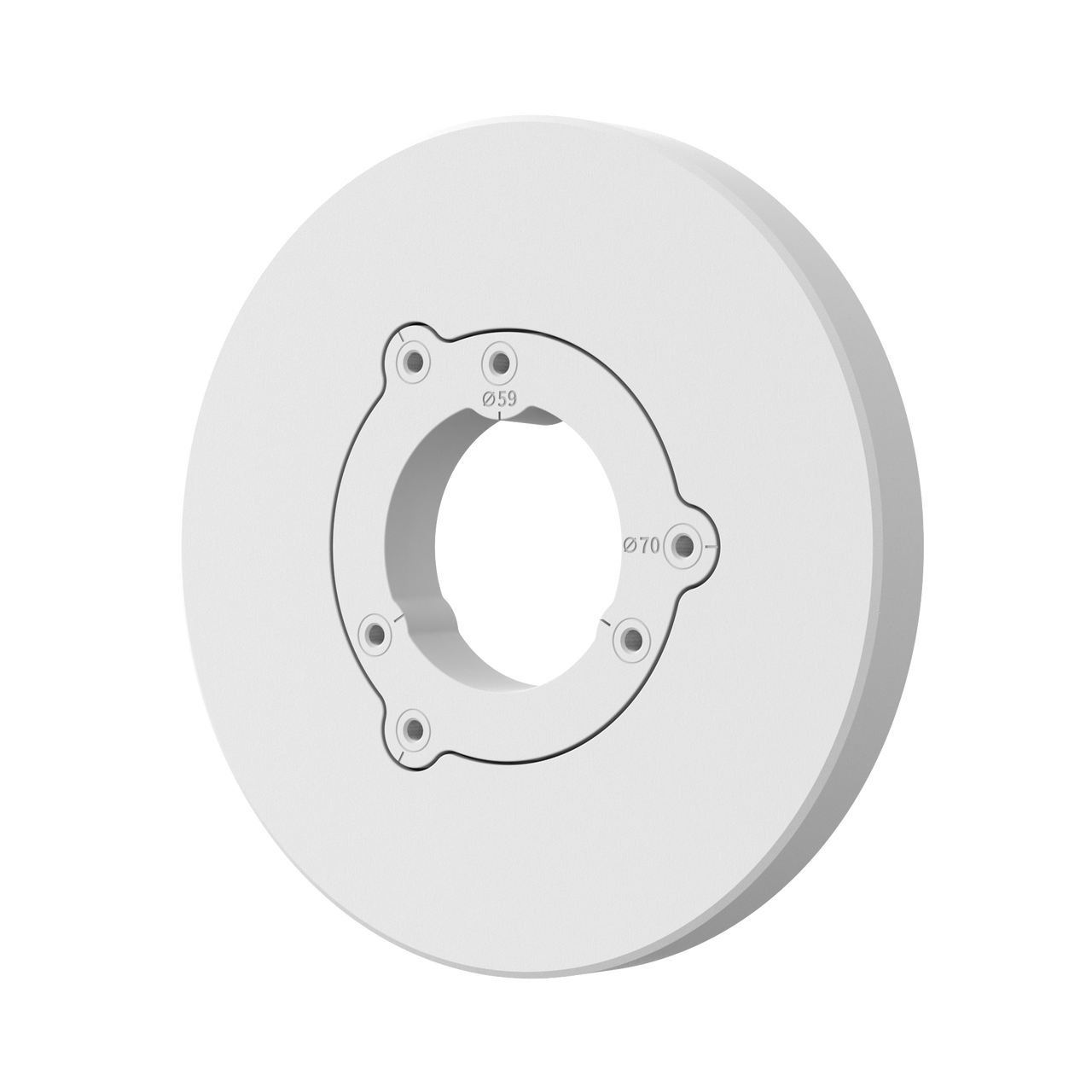

Gang plate (for bullet) Adaptor plate for Single, Double, 4" Octagon Compatible with QNO-C8083R / QNO-C9083R / ANO-L6012R / ANO-L6022R / ANO-L6082R / ANO-L7012R / ANO-7022R / ANO-7082R.

Features:

Color: White
Material: Core-Aluminum / Cap-Plastic
Dimensions/ Weight: ø140x13.2mm(ø5.52x0.52")/ 190g(0.42lb)
Mount Screw size: TR20

Mechanical
Color	White
Material	Core : Aluminum / Cap : Plastic
RAL code	RAL9003
Product dimensions / weight	ø140x13.2mm(ø5.52x0.52"), 190g(0.42lb)
Mount Screw size	TR20
Supported products	QNO-C8083R/C9083R, ANO-L6012R/L6022R/L6082R, ANO-L7012R/L7022R/L7082R
