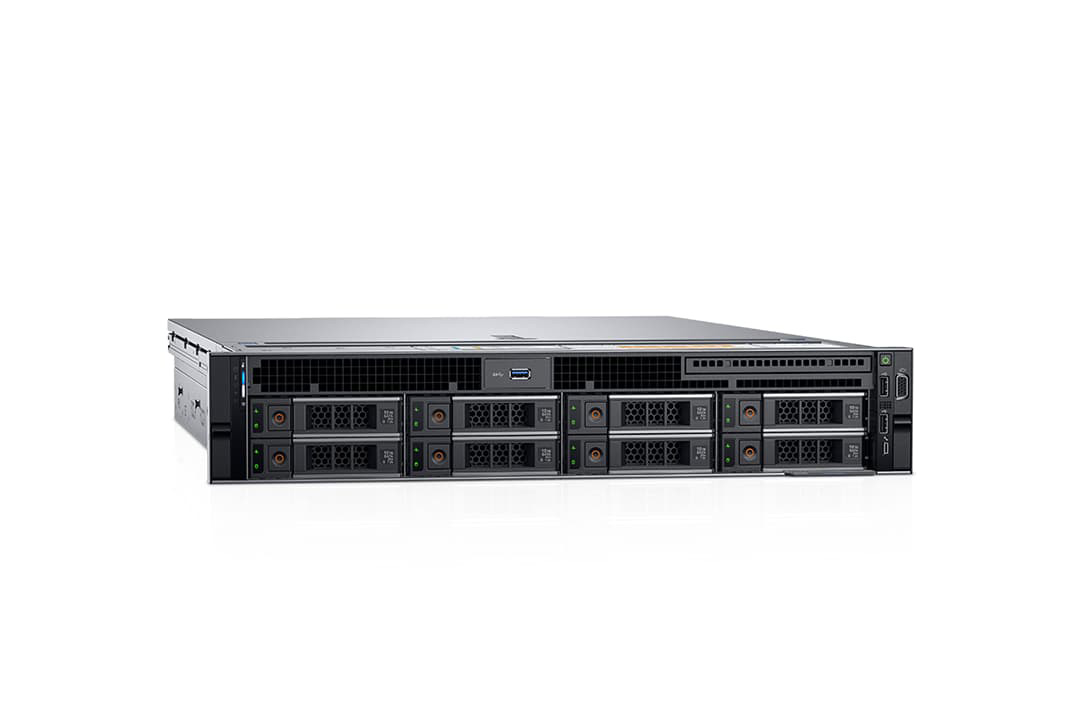

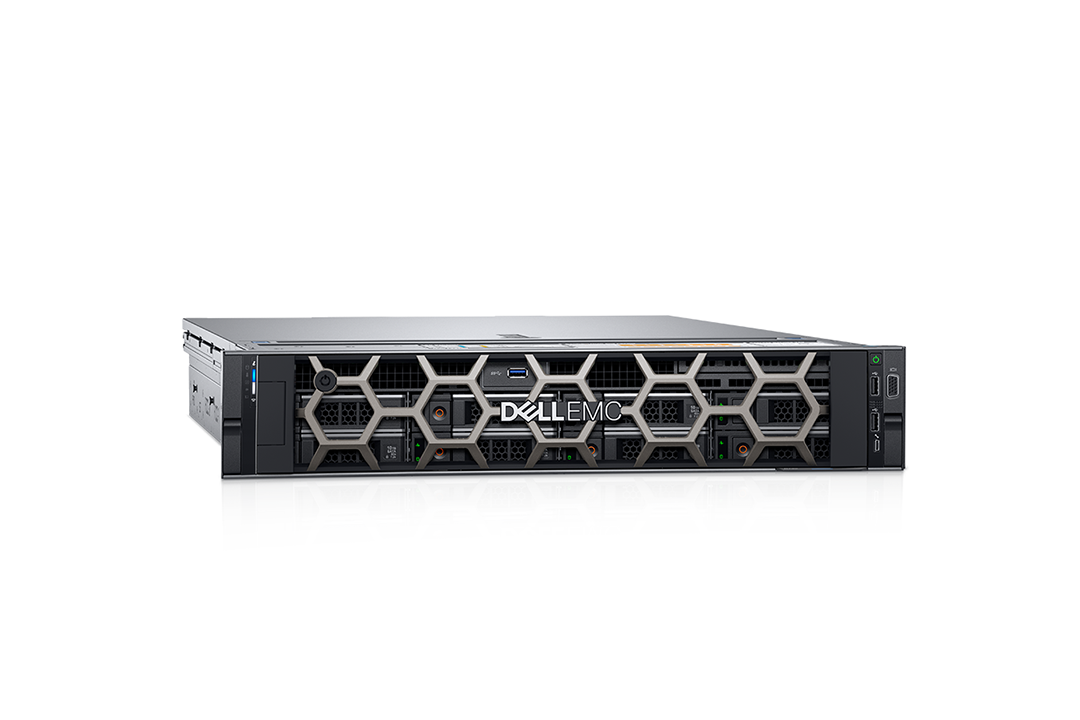

The D-2XR enterprise 2U server is developed on Dell EMC infrastructure and designed to provide the flexibility, performance and scale needed to support the high camera counts, megapixel resolutions, high frame rates and long retention times demanded by the industry. Optimized to work with Ganz CORTROL Surveillance software.
This series is designed to provide the flexibility, performance and scale needed to support high camera counts, megapixel resolutions, high frame rates and long retention times demanded by the industry.
Ganz Enterprise Servers powered by Dell EMC are backed by a Dell ProSupport 3 year warranty. For warranty information and options go to ganzsecurity.com/dell-emc.
Features:
Model | D-2XR-xTB - Intel Dual Xeon RAID-6 |
Power Supply | Dual, Hot-plug, redundant power supply (1+1), 750W |
Form Factor | 2U Chassis with up to 8 x 3.5“ SAS/SATA Hard Drives |
Cooling System | 2x 120mm front fans, 2x 80mm top fans |
Operating System | Windows Server 2016 (64 Bit) on dedicated mirrored solid-state drive |
NIC | Broadcom 5720 Quad Port 1GB network daughter card |
DVD/CD RW | Front panel access |
Storage (SATA-3Gb/s-7200 RPM) | Hot Swap 12TB ~ 48TB internal |
Graphics Card | Matrox G200eW3 16MB Video Adapter with VGA output |
CPU | (2) Intel Xeon Silver 4114 2.2G, 10C/2OT, 9.6GT/s, 14M Cache, Turbo, HT (85W) DDR4-2400 |
RAM | 16GB 2666MT/s RDIMMs |
Dimensions (W x D x H) | 18.98“ x 26.72“ x 3.42“ / 482.0 mm x 678.8 mm x 86.8 mm |
Rails | ReadyRails sliding rails with cable management arm |
Additional | Includes keyboard and mouse |
