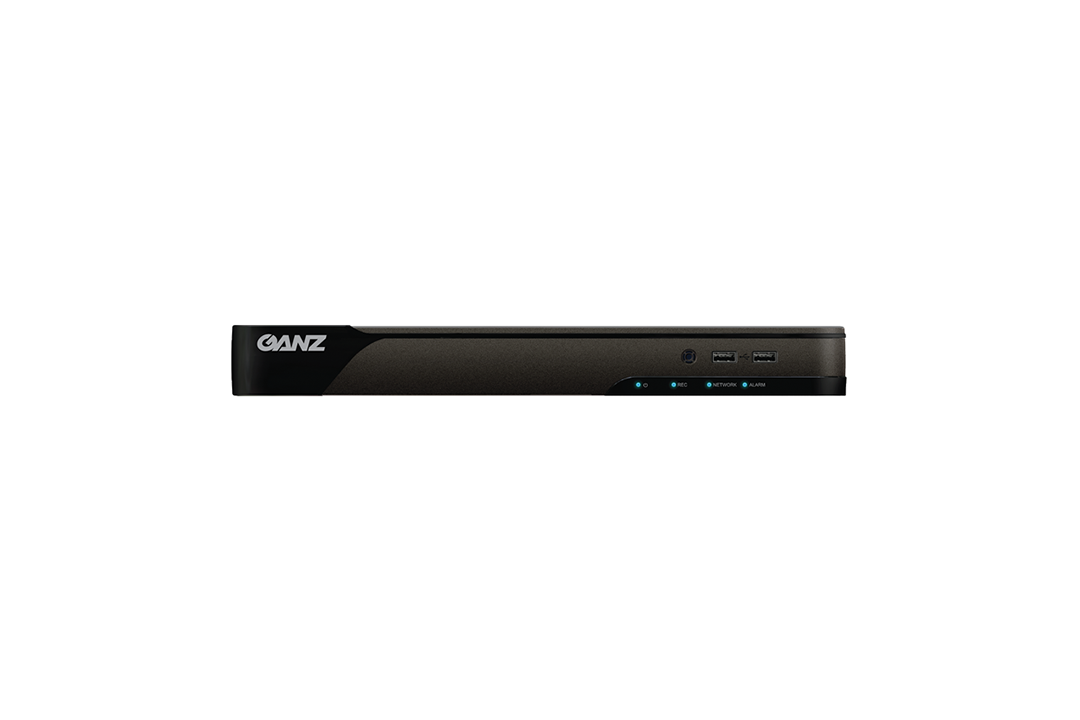

GANZ - DR-16M52-4TB - 16ch AHD,TVI,IP, 4K, up to 480FPS, 4TB HDD, HDMI, No Loop Through, 1U
GANZ - DR-16M52-4TB - 16ch AHD,TVI,IP, 4K, up to 480FPS, 4TB HDD, HDMI, No Loop Through, 1U
GANZ - DR-16M52-4TB - 16ch AHD,TVI,IP, 4K, up to 480FPS, 4TB HDD, HDMI, No Loop Through, 1U

GANZ - DR-16M52-4TB - 16ch AHD,TVI,IP, 4K, up to 480FPS, 4TB HDD, HDMI, No Loop Through, 1U

Part number:
DR-16M52-4TB
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

16ch AHD, TVI, IP, 4K, up to 480FPS, 4TB HDD, HDMI, No Loop Through, 1U.



Features:

  • Supports H.264/H.265 CODEC
  • Supports dual display
  • Up to max. 8MP recording
  • All In One - TVI / AHD / CVBS / IP
  • Compatible with ONVIF cameras
  • Supports CVBS spot monitor
  • HD monitor and VGA video output
  • Supports P2P
  • Compact size & easy to install HDD
  • Available in 2TB, 4TB, and 8TB
  • NDAA Compliant
MODELS DR-8M52-A-VDR-16M52-AV
VIDEOINPUT SIGNALSD(960) / AHD,TVI(HD,FHD)/ 3,4,5MSD(960) / AHD,TVI(HD,FHD)3,4,5M
IP HYBRIDMax. 8CH, 2MP@30Max. 16CH, 2MP@30
MAIN MONITORHDMI / VGAHDMI / VGA
SPOT OUT1(CVBS)1(CVBS)
LOOP THROUGHnono
AUDIOINPUT SIGNAL4CH(10KOhm, 2.8Vpp)4CH(10KOhm, 2.8Vpp)
OUTPUT SIGNAL1CH(600Ohm, 2.8Vpp)1CH(600Ohm, 2.8Vpp)
CODECG.711 ulawG.711 ulaw
RECORDINGCODECH.264H.264
REC. RATE

Analog: Up to 160FPS@1296x1944 (5M Half),

96FPS@2592x1944 (5M), 240FPS@1344x1520 (4M Half),

240FPS@1280x1440 (4M Half), 120FPS@2592x1520 (4M),

120FPS@2560x1440 (4M), 240FPS@1024x1536 (3M half),

144FPS@1920x1536 (3M), 240FPS@ FHD

 IP: Up to 240FPS@ FHD

Analog: Up to 160FPS@1296x1944 (5M Half),

96FPS@2592x1944(5M), 240FPS@1344x1520(4M Half),

240FPS@1280x1440(4M Half), 120FPS@2592x1520(4M),

120FPS@2560x1440(4M), 240FPS@1024x1536(3M half),

144FPS@1920x1536(3M), 240FPS@ FHD(2/3/4/5M Noise Filter Off)   IP: Up to 480FPS@ FHD

REC. RESOLUTIONCIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5MCIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M
ALARM I/OALARM INPUT2CH2CH
ALARM OUT1CH (RELAY)1CH (RELAY)
STORAGEINTERNAL HDD2EA2EA
EXTERNAL STORAGEnono
INTERNAL ODDnono
INTERFACEUSB2x front2x front
RS-48511
RS-232--
LAN1x 10/100/10001x 10/100/1000
REMOTE CONTROLYESYES
SIGNAL SWITCHNONO
ADDITIONALWATCHDOGYESYES
COOLING FAN11
POWERPOWER SUPPLY12V/3A12V/3A

POWER

CONSUMPTION

13W max. without HDD14W max. without HDD
ENVIRONMENTTEMPERATURE / HUMIDITY 0ºC ~ 40ºC (32ºF~104ºF) / 10 ~ 90% NC0ºC ~ 40ºC (32ºF~104ºF) / 10 ~ 90% NC
CHASSISDIMENSIONS (mm)380(W) x 314.6(D) x 44(H)380(W) x 314.6(D) x 44(H)
NET WEIGHT(kg)2.522.58
GROSS WEIGHT(kg)3.633.69
CERTIFICATIONSCERTIFICATIONSCE, FCC, KCCE, FCC, KC
MONITORINGDISPLAY RATE

Analog: Up to 160FPS@5M Half, 240FPS@4M Half,

144FPS@3, 240FPS@ 2M

Up to 240FPS@ 2M

Analog: Up to 320FPS@5M Half, 480FPS@4M Half, 216FPS@3M half, 480FPS@ 2M IP: Up to 480FPS@ 2M
DISPLAY RESOLUTION1920x1080(HD Display, VGA), Dual Display (Mirroring)1920x1080(HD Display, VGA), Dual Display (Mirroring)
DISPLAY MODE1 4 6 8 91,4,6,8,9,16
SEQUENCEProgrammable SequenceProgrammable Sequence
DIGITAL ZOOMYESYES
COVERT CAMERASYESYES
CAMERA COLOR CONTROLYES (CONTRAST, COLOR, TINT, BRIGHTNESS)YES (CONTRAST, COLOR, TINT, BRIGHTNESS)
PTZ CAMERAYESYES
SCHEDULE METHODDAILY/WEEKLY EACH HOURDAILY/WEEKLY EACH HOUR
 MODELSDR-8M52-A-VDR-16M52-AV

MONITORING

(continued)

PROGRAMMABLE FOR CHYESYES
MANUAL RECORDINGYESYES
POST-EVENT RECORDING5/10/15/20/30/60/180 SEC5/10/15/20/30/60/180 SEC
EVENT RECORDINGYESYES
PRE-EVENT RECORDING0/1/2/3/4/5/10/15 SEC0/1/2/3/4/5/10/15 SEC
PANIC RECORDINGYESYES
EVENT LOGGINGYES (MOTION,ALARM,PANIC,VLOSS)YES (MOTION,ALARM,PANIC,VLOSS)
SYSTEM LOGGINGYES (SYSTEM ON/OFF, TIME CHANGED, HDD/EMAIL OPERATIONS, SYSTEM OPERATIONS)
SETUP LOGGINGYES (SETUP CHANGED)YES (SETUP CHANGED)
REMOTE LOGGINGYES (WHO, IP ADDRESS, REMOTE OPERATIONS)
SEARCH & PLAYBACKPLAYBACK RATESame as Recording RateSame as Recording Rate
PLAYBACK SPEEDx1, x2, x4, x8, x16, x32, x64x1, x2, x4, x8, x16, x32, x64
SEARCH TYPECALENDER / EVENT / TIME / THUMBNAILCALENDER / EVENT / TIME / THUMBNAIL
ARCHIVINGARCHIVING DEVICESUSB Memory, FTPUSB Memory, FTP
REMOTE ARCHIVINGYES (WEB RA, VMS, FTP)YES (WEB RA, VMS, FTP)
SNAPSHOT ARCHIVINGYESYES
DATA RESERVINGYESYES
RESERVED DATA LIST MANAGEMENTYESYES
BACKUP DATA FORMATAVI, RAWAVI, RAW
WATERMARK / VERIFICATIONYESYES
ARCHIVED DATA PLAYBACKYESYES
NETWORKMAX. CONNECTIONS32 USERS32 USERS
DHCP / DDNSYESYES
TRANSMISSION RATEMAX 240 FPSMAX 480 FPS
BANDWIDTH CONTROLYESYES
WEB BROWSER ACCESSYESYES
REMOTE FUNCTIONREMOTE MONITORING /PLAYBACK / ARCHIVING / SETUP / PTZ CONTROL / HEALTH CHECK
VMS SUPPORTYESYES
TWO-WAY AUDIOYESYES
PC BASED REMOTE AGENTYESYES
SMARTPHONE APPLICATIONYES (iOS, Android)YES (iOS, Android)
WEB BASED REMOTE AGENTYES (WINDOWS®, LINUX, MAC OS/X®, ETC.)YES (WINDOWS®, LINUX, MAC OS/X®, ETC.)
SDKYES (HTTP, RTSP Protocol Base)YES (HTTP, RTSP Protocol Base)
AUTO ROUTER PORT FORWARDINGYESYES
DUAL STREAMINGYESYES
FTP CLIENTYES (For ARCHIVING)YES (For ARCHIVING)
E-MAILYES (SMTP CLIENT)YES (SMTP CLIENT)
AUTHORITY CONTROLADMIN / MANAGER / USERADMIN / MANAGER / USER
PROTOCOLSRTP, RTSP, RTCP, SMTP, NTP, HTTP, FTP, DDNS, DHCP, Upnp (Router Port Forwarding)
EVENTTYPEVIDEO LOSS EVENT / EVENT NOTIFICATION/ EVENT POPUP / MOTION DETECTION/ MOTION SENSOR AREA
ADDITIONALLANGUAGEMULTI-LANGUAGEMULTI-LANGUAGE
KEYBOARD CONTROLLER YESYES
OPERATING SYSTEMLINUX®LINUX®
FILE SYSTEMITX FILESYSTEMITX FILESYSTEM
DST SETUPYESYES
DISK TEMPERATURE CHECKYES (DEPEND ON HDD SPEC)YES (DEPEND ON HDD SPEC)
DISK S.M.A.R.T CHECK, AUTO DISK RECOVERY, F/W UPGRADE, SETUP IMPORT/EXPORT
PTZ CONTROLYES (PAN / TILT / ZOOM /FOCUS / IRIS / PRESET)YES (PAN / TILT / ZOOM /FOCUS / IRIS / PRESET)
