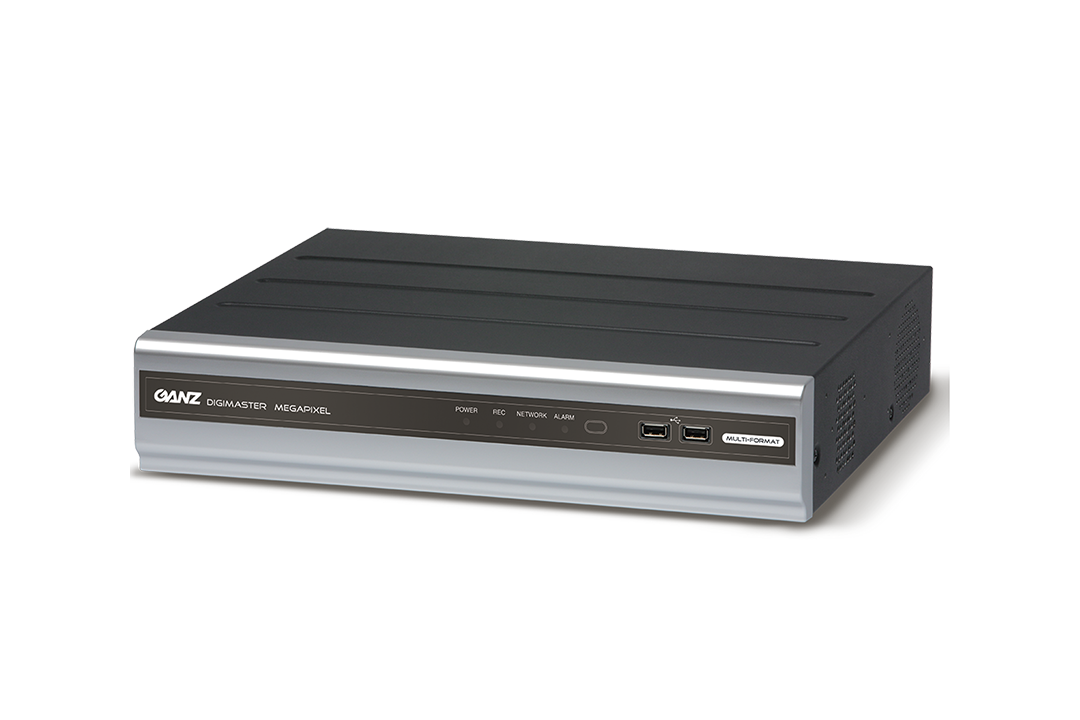

Ganz - DR-16M85-RA - 16ch AHD, TVI, Analog, IP, HDMI, BNC Spot Out, 2U, up to 4K
Part number:
DR-16M85-RA
Price:
16ch AHD, TVI, Analog, IP, HDMI, BNC Spot Out, 2U, up to 4K.
Features:
- Multi-Technology Platform – Analog / AHD / TVI / IP
- High resolution IP recording up to 4K
- Remote access via Network through web browser
- Pentaplex Operation: Simultaneous Live / Record / Playback / Archive / Network
- Video access through mobile devices
- Hand-held remote
- NDAA Compliant
| MODEL | DR-16M85-RA | ||
| Channels | 16CH | ||
VIDEO | Analog Video Input | AHD (8M,5M, 4M, 3M 2M, 720p),TVI (8M, 5M, 4M, 3M 2M, 720p),SD (NTSC, PAL) | |
| IP VideoInput | IP (8M, 5M, 4M, 3M, FHD) | ||
| Video Standard | NTSC, PAL | ||
| Video Compression | H.264/H.265 | ||
AUDIO | Audio InputSignal | 16CH (10KOhm, 2.8Vpp) | |
| Output Signal | 1CH (600Ohm, 2.8Vpp) | ||
| CODEC | G.711 ulaw | ||
DISPLAY | Interface | 1 HDMI,1 VGA / Dual Display(mirroring) | |
| Output Resolution | 4k/30 (HDMI), 1080p(VGA) | ||
| Display Rate | 480@2M, 480@3M, 480@4M, 400@5M, 240@8M | ||
| Display Split | 1, 4, 6, 8, 9, 16 | ||
| Spot Out | 2 BNC (NTSC,PAL) | ||
| Loop Through | Yes | ||
| Sequence | Programmable Sequence | ||
| Digital Zoom | Yes | ||
| Covert Cameras | Yes | ||
| Camera ColorControl | Yes (contrast, color,tint, brightness) | ||
| PTZ Camera | YES | ||
RECORDING | Recording CODEC | H.264/H.265 | |
| Recording Resolution | 8M / 5M / 4M / 3M / 1080P / 720P / 960H / D1/ 2CIF/ CIF | ||
Recording Rate |
[Analog] | Up to 64FPS@2560x2160 (8M) / Up to 128FPS@1920x2160 (8M Half) Up to 96FPS@2560x1944 (5M) / Up to 160FPS@1296x1944 (5M Half) Up to 120FPS@2560x1520 (4M)/ Up to 240FPS@1344x1520 (4M Half) Up to 120FPS@2560x1440 (QHD) / Up to 240FPS@1280x1440 (QHD Half) Up to 144FPS@2048x1536 (3M) / Up to 240FPS@1024x1536 (3M half) Up to 240FPS@ FHD / Up to 480FPS@HD or 2CIF or CIF | |
| [IP] | Up to 240FPS@ 8M / Upto 240FPS@ 5M Upto 480FPS@ 4M/ Up to480FPS@ 3M Up to 480FPS@ FHD | ||
| Audio Compression | G.711 | ||
| Recording Resolution | 8M / 5M / 4M / 3M / 1080P / 720P / 960H / D1/ 2CIF/ CIF | ||
| Schedule Method | Daily / Weekly/ Hourly | ||
| Programmable For Ch | Yes | ||
| Manual Recording | Yes | ||
| Post-Event Recording | 5 / 10 / 15 / 20 / 30 / 60 /180Sec | ||
| Event Recording | Yes | ||
| Pre-Event Recording | 0 / 1 / 2 / 3 / 4 / 5 / 10 /15 Sec | ||
| Panic Recording | Yes | ||
| Event Logging | Yes (Motion, Alarm, Panic, VLOSS) | ||
RECORDING (CONT.) | System Logging | Yes (System On/Off, Time Change, HDD/Email Operations, System Operations) |
| Setup Logging | Yes (Setup changed) | |
| Remote Logging | Yes (Who, IP Address, Remote Operations) | |
DETECTION | Video Loss Event | Yes |
| Event Notification | Yes | |
| Event Popup | Yes | |
| Motion Detection | Yes | |
| Motion SensorArea | Yes | |
ALARM I/O | Alarm Input | 18CH [16CH + 2CH] (pulledup to 5V via 10KOhm) |
| Alarm Out 1 | 8CH, relay (125VAC, 60VDC) | |
| Alarm Out 2 | 8CH, O.C. (pulledup to 5V via 1KOhm) | |
| STORAGE | Internal HDD | Max 5EA |
| External Storage | eSATA, NAS (FTPServer for Backup) | |
INTERFACES | USB | 3 Ports (2 Front + 1 Rear) |
| RS-485 / RS-232 | 2 /1 | |
| LAN | 1 (LAN) + 1 (WAN)- 10/100/1000 Mbps | |
| Remote Control | Yes | |
SEARCH &PLAYBACK | Display Mode | 1 / 4 / 9 / 16 |
| Playback Rate | Same as recording rate | |
| Playback Speed | x1, x2, x4, x8, x16, x32, x64 | |
| Calendar Search | Yes (2008/1/1 – 2036/1/1) | |
| Event Search | Yes | |
| Time Search | Yes | |
| Thumbnail Search | Yes | |
ARCHIVING | Archiving Devices | USB Memory, FTP |
| Remote Archiving | YES (Web RA, VMS, FTP) | |
| Snapshot Archiving | Yes | |
| Data Reserving | Yes | |
| Reserved DataList Management | Yes | |
| Backup Data Format | AVI, RAW | |
| Watermark | MD5 | |
| Watermark Verification | Yes | |
| Archived Data Playback | Yes | |
NETWORK | Max. Connections | 32 Users |
| DHCP / DDNS | Yes / Yes | |
| Transmission Rate | Max 480 FPS | |
| Bandwidth Control | Yes |
NETWORK (CONT.) | Web Browser Access | Yes |
| Remote Monitoring | Yes | |
| Remote Playback | Yes | |
| Remote Archiving | Yes | |
| Remote Setup | Yes | |
| Remote PTZ Control | Yes | |
| Remote HealthCheck | Yes | |
| VMS Support | Yes | |
| Two-Way Audio | Yes | |
| PC Based RemoteAgent | Yes | |
| Smart PhoneApplication | Yes (iOS, Android) | |
| Web BasedRemote Agent | Yes (Windows®, LINUX, Mac OS/X®, etc.) | |
| SDK | Yes (HTTP, RTSP Protocol Base) | |
| Auto Router Port Forwarding | Yes | |
| Dual Streaming | Yes | |
| FTP Client | Yes (for Archiving) | |
| Yes (SMTP Client) | ||
| Authority Control | Admin / Manager / User | |
| Protocols | RTP, RTSP, RTCP,SMTP, NTP, HTTP, FTP, DDNS, DHCP, UPNP (Router Port Forwarding) | |
ADDITIONAL | Language | Multi-Language |
| Keyboard Controller | Yes | |
| Operating System | LINUX® | |
| DST Setup | Yes | |
| Disk Temperature Check | Yes (Depending on HDD Spec) | |
| Disk S.M.A.R.T Check | Yes | |
| Auto Disk Recovery | Yes | |
| F/W Upgrade | Yes | |
| Setup Import/Export | Yes | |
| Signal Switch | No | |
| Watchdog | Yes | |
| Cooling Fan | Max 2x 80mm | |
| PTZ Control | Yes (Pan / Tilt / Zoom / Focus / Iris /Preset) | |
| CHASSIS | Dimensions | 2U 17” x 14.4” x 3.5”(430 X 367 X 88.4) |
| Weight | TBD | |
| POWER | Power Supply | DC12V, Adapter, 7.5A,100~200V AC, 50-60Hz |
| Power Consumption | 24W max. withoutHDD | |
| ENVIRONMENT | Temperature / Humidity | 32ºF~104ºF / 0ºC ~ 40ºC, 10 ~ 90% NC |
| CERTIFICATIONS | CE, FCC, c-Tick,NDAA Compliant | |
