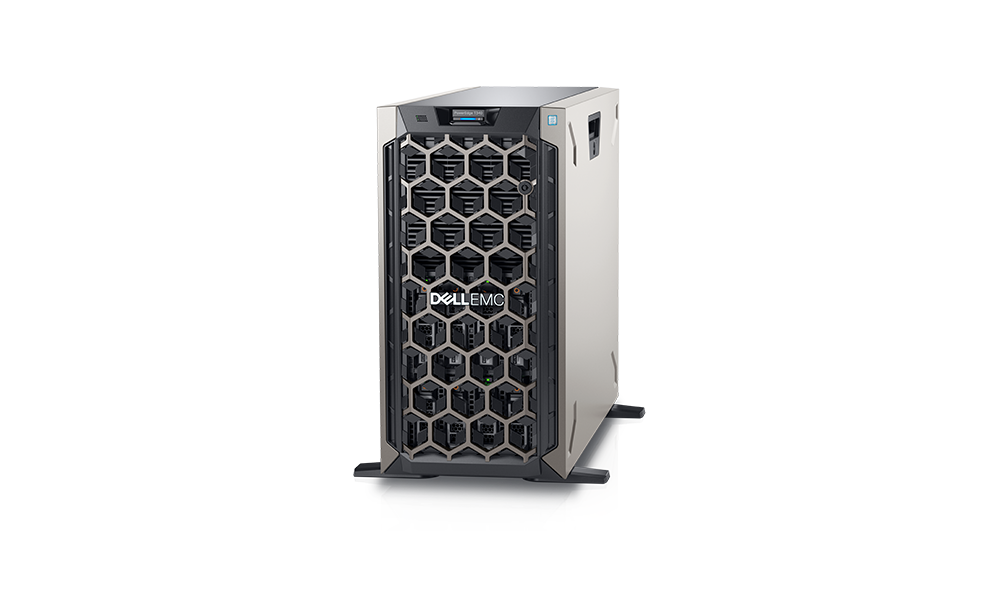

The DT-1X enterprise tower server is developed on Dell EMC infrastructure and designed to provide the flexibility, performance, and scale needed to support the high camera counts, megapixel resolutions, high frame rates and long retention times demanded by the industry and optimized to work with Ganz CORTROL Surveillance software.
Ganz Enterprise Servers powered by Dell EMC are backed by a Dell ProSupport 3 year warranty. For warranty information and options go to ganzsecurity.com/dell-emc.
Features:
- 5U
- JBOD Network Video Recorder (NVR) servers for up to 128 channel
- Advanced Intel Xeon E-2124 processor
- 4x DDR4 DIMM slots support UDIMMs, speeds up to 2666MT/s, 64GB max.
- Internal HDD configurations from 4TB to 60TB
- Matrox G200eW3 16MB video adapter with VGA output
- 16GB of RDIMM 2666MT/s memory
- iDRAC9 basic
- Pre-installed with 64bit Windows Server 2019 OS on 1TB Mechanical HDD
- The advanced cooling system ensures optimal performance & long-term reliability
- Optimized to work with Ganz CORTROL Surveillance software
- Optional Dell DT front bezel available
| DT-1X-xTB | DT-1X-4TB - Intel Xeon |
| Power Supply | Dual, Hot-plug, redundant power supply (1+1),750W |
| Form Factor | 5U Chassiswith up to 8 x 3.5“hot-pluggable bays |
| Operating System | Windows Server 2019 (Dedicated 1TB Mechanical HDD) |
| NIC | Dual port 1GB network card |
| DVD/CD RW | - |
| Storage (SATA-3Gb/s-7200 RPM) | 4TB ~ 60TB internal |
| Graphics Card | Dual port 1GB network card |
| CPU | Advanced Intel Xeon E-2124 processor |
| RAM | 6GB of RDIMM 2666MT/s memory |
| Chassis Dimensions (W x D x H) | 8.58“ x 23.7“ x 16.94“ / 218mm x 603 mm x 430.3mm *Note: These metricsdo not include PSU handle,bezel, or tower foot |
| Chassis Weight | 55.67 lb. / 26 kg |
