Ganz - GBK-25-HD - Gang Box Camera Kit, 1080p AHD, 2.5mm lens
Part number:
GBK-25-HD
Price:

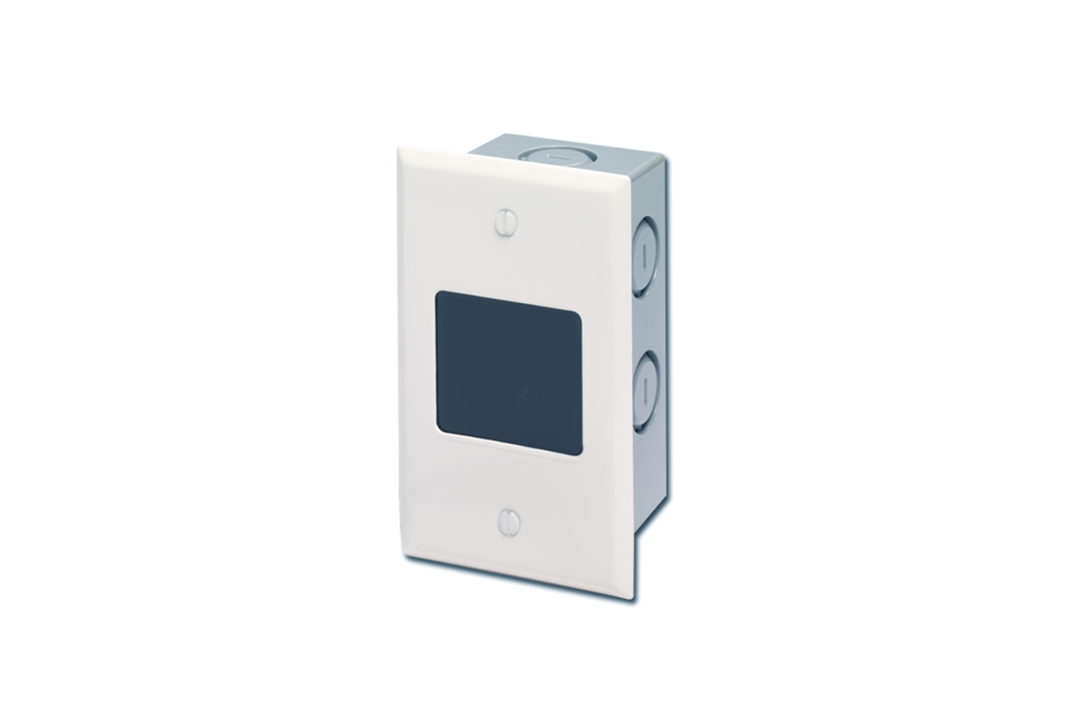

Our gang box camera kits are designed to fit into most single electrical boxes, making them ideal for discrete surveillance in various environments. The kits include a white, ivory, and silver faceplate. Interchangeable clear & tinted windows are also included. The camera can be tilted and swiveled inside the gang box to achieve the desired angle of view.
Features:
- 1080p AHD resolution
- Tamper-resistant mounting screws
- 2-axis camera adjustment
- Interchangeable clear & tinted windows
- Super-wide 2.5mm lens
- 3D-DNR, Sens-up, D-WDR
- White, ivory, and silver faceplate included
- 12VDC power input
| Model | GBK-25-HD |
| Image Sensor | 1/3” CMOS |
| Effective Pixels | 1944 (H) x 1092 (V) (2.1 MP) |
| Scanning System | Progressive Scan |
| Resolution | 1080p @ 30 FPS, 720P @ 30FPS |
| Min. Illumination | 0.1 lux @ F2.5, 30 IRE |
| Lens | 2.5mm , F2.5 |
| HFOV | 88° |
| DSP Features | 3D-DNR, Sens-up, D-WDR |
| Frame Rate | 30fps |
| Power Supply | 12VDC |
| Power Consumption | 100mA max |
| Operating Temperature | 14º ~ 122º F ( -10º ~ 50º C) |
| Installation | Indoor (<80% RH) |
| Dimensions | 4.5” H x 2.8” W x 1.6” D |
| Construction | Aluminum, powder coat |
