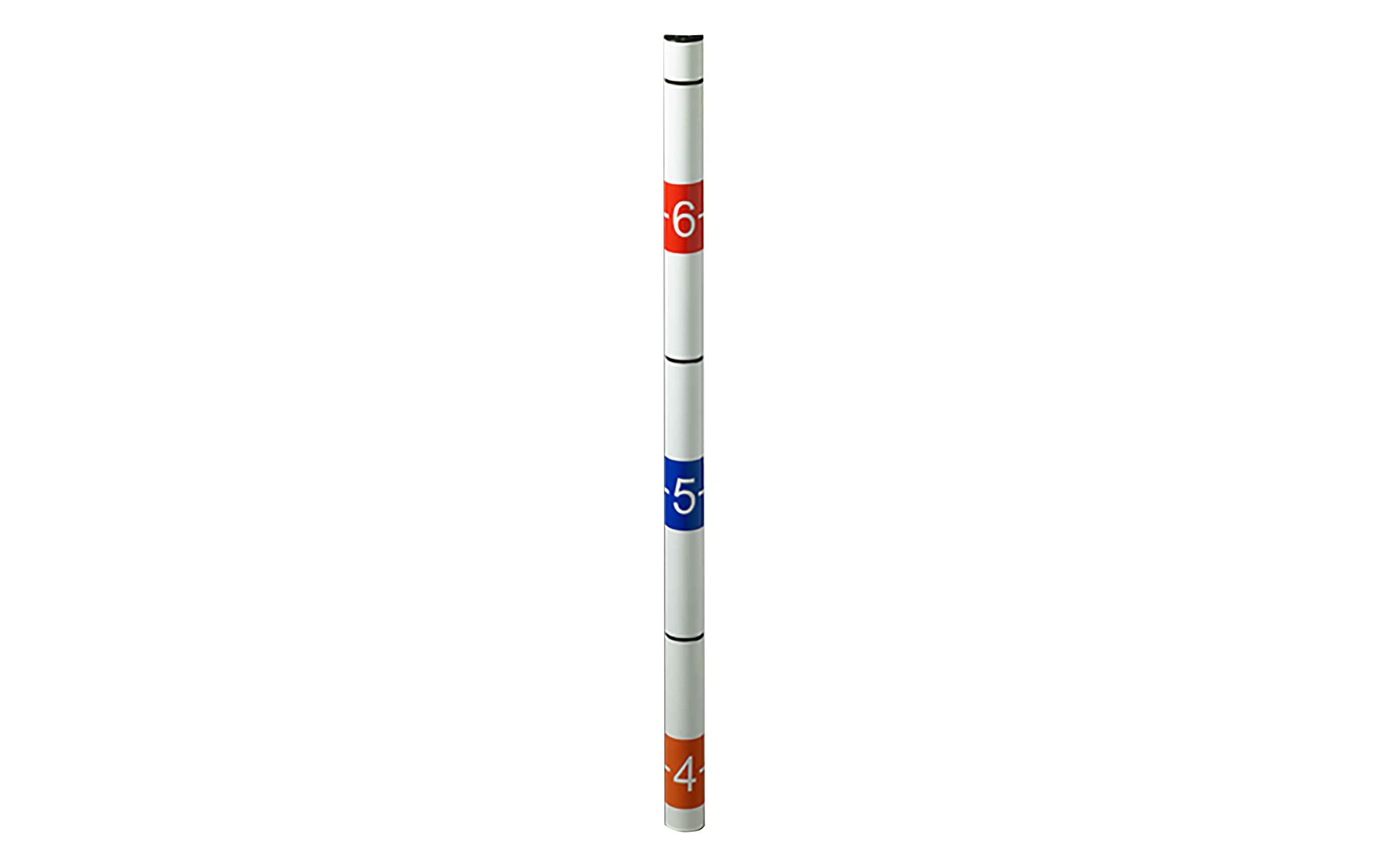

Ganz - HSW-H37-24HD - Height Strip Camera 1080p AHD, 3.7mm lens, 24VAC, white
Part number:
HSW-H37-24HD
Price:
The Ganz AHD height strip camera delivers 1080p resolution and mounts discreetly to a doorframe. It’s designed to supplement standard surveillance cameras by capturing facial images and height.
Features:
- 1080p AHD resolution
- 3.7mm wide-angle lens
- Designed for easy installation
- Fits most standard door frames
- Durable aluminum construction
- Highly visible color-coded height levels
- Curved surface with 180º camera adjustment
- Wrap-around labels visible from the side
- One on-board camera included with the base model
- 24VAC
- White housing
| Image Sensor | 1/3” CMOS | |
| Effective Pixels | 1944 (H) X 1080 (V) | |
| Scanning System | Progressive Scan | |
| Resolution | 1080p @ 30 FPS, 720P @ 30FPS | |
| Min. Illumination | 0.1 lux @ F2.5, 30 IRE | |
| Lens | 3.7mm Pinhole, F2.5 | |
| HFOV | 66° | |
| DSP Features | 3D-DNR, Sens-up, D-WDR | |
| Frame Rate | 30fps | |
| Power Supply | 12VDC, 130mA max or 24VAC options | |
| Power Consumption | Max. 80mA | |
| Operating Temperature | 14º ~ 122º F ( -10º ~ 50º C) | |
| Ambient Humidity | 90% RH | |
| Installation | Indoor | |
| Dimensions | 1.7” W x 1.4” D x 34.1” H | |
| Weight | 2 lbs. / 907g | |
| Color & Power Options | 12VDC | HSW-H37-HD (white), HSB-H37-HD (black), HSS-H37-HD (silver) |
| 24VAC | HSW-H37-24HD (white), HSB-H37- 24HD (black), HSS-H37-24HD (silver) | |
