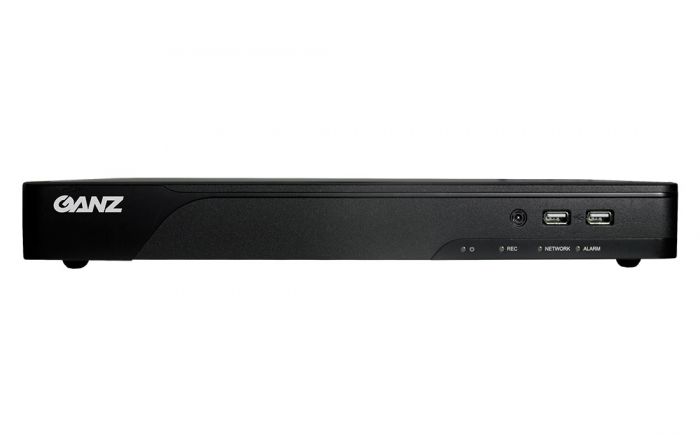

Ganz - NR-16F82-16P-8TB - 16 Channel 4K Embedded NVR - 8TB
Part number:
NR-16F82-16P-8TB
Price:
16ch-480fps @ 4K, 1U, 2 HDD slots, H.264/H.265, Built in POE-8TB.
Features:
- Supports 4K Live Display
- Up to 4K Recording
- 2TB-8TB HDD
- Automatic Router Port Forwarding
- FW Upgradeable by USB or Network
- Supports P2P - Network Setup by QR Code Scan
- Network Ports (WAN/LAN) - 2 each
- HDD Failure Notification (S.M.A.R.T)
- PC & Web-based Remote Agent, Smartphone Applications
- Plug and Play PixelPro IP Cameras with No Configuration Required
- NDAA Compliant
| MODEL | NR-16F82-16P - 16 Channels | |
Video | Input Signal | 16 x IP Camera(Max 8MP) |
| Main Monitor | VGA or HD Display | |
| Main Monitor Resolution | 2160p / 1080p / 720p / SXGA | |
| Spot | 1 CVBS | |
| Motion Detection | Yes (FromIP Camera) | |
Audio | Input Signal | 16 CH (From IP Camera) |
| Output Signal | 1CH | |
| Microphone | 1CH | |
| CODEC | G.711 | |
Recording | Recording CODEC | H.264 / H.265 |
| Rec. Rate | Max. 30 FPS@9MP/CH (Dependson IP Camera) | |
| Rec. Resolution | Max. 9MP (Depends on IP Camera) | |
| Alarm I/O | Alarm Input | 16 CH (IP) (Depends on IP Camera) / 8 IN |
| Alarm Out | 16 CH (IP) + 1 RELAY (Internal) (Depends on IP Camera) | |
Storage | Internal HDD | 2 EA |
| External Storage | - | |
| Internal ODD | NONE | |
Interface | USB | 2 Ports |
| Interface | 1 RS-485 | |
| LAN | 16 (IP Camera, PoE [802.3at]) + 1 (LAN)+ 1 (WAN) | |
| Remote Control | YES | |
Hub | Network | - |
| Total PoE Power | - | |
| Manageable by IPX | - | |
| Adapter | - | |
| Additional | Watchdog | YES |
| Cooling Fan | 1EA | |
| Power | Power Supply | SMPS 51V 200W |
| Power Consumption | 16W max. without HDD/CAM | |
| Power Budgetfor IP Camera | 180W | |
| Environment | Temperature / Humidity | 32ºF~104ºF (0ºC~ 40ºC) / 10 ~ 90% NC |
| Chassis | Dimensions (W x D x H) | 1U 15” x 12.4”x 1.7” / 380mm x 314.6mm x 44mm |
| Weight | 6.1 lbs.(2.75 kg) | |
| Certifications | Certifications | FCC, CE |
Monitoring | Display Rate | Up to 480fps/400fps (Real-time) |
| Decoding Rate | Max Total 60fps @ 8M | |
| Display Resolution | 2160p / 1080p / 720p / SXGA | |
| Display Mode | 1, 4, 8, 9,16 | |
| Sequence | Programmable Sequence | |
| Digital Zoom | YES | |
| Covert | YES | |
| Camera Color Control | Yes (Contrast, Hue, Tiny, Brightness) (Depending on IP Camera) | |
| Camera Image Control | Yes (WhiteBalance, Exposure, Flickerless) Depending on IP Camera | |
| Audio Monitoring | Yes (FromIP Camera) | |
| Microphone | Yes (MIC to IP Camera) | |
| PTZ Camera Support | YES (IP,RS485) | |
Record | Schedule Method | Daily/Weekly EachHour |
| Programmable For Ch | Yes | |
| Record Time Limit | Yes | |
| Event Recording | Yes | |
| Intensive Recording | Yes (Motion / Alarm) | |
| Pre-Event Recording | 0/1/2/3/4/5/10/15 Sec | |
| Panic Recording | Yes | |
Search & Playback | Display Mode | 1,4,9,16 |
| Playback Rate | Up To 480FPs | |
| Playback Speed | X1, X2, X4, X16, X32, X64 | |
| Type | Calendar / Event / Time / Thumbnail | |
| Playback Zoom | Yes | |
| Snapshot | Yes (JPEG) |
| MODEL | NR-16F82-16P - 16 Channels | |
Archiving | Archiving Devices | USB Memory, FTP |
| Remote Archiving | Yes (WEB RA, VMS, FTP) | |
| Snapshot Archiving | Yes | |
| Data Reserving | Yes | |
| Reserved Data List Management | Yes | |
| Backup Data Format | AVI, RAW | |
| Watermark | MD5 | |
| Watermark Verification | Yes | |
| Archived Data Playback | Yes | |
Network | Max. Connections | 10 Users |
| Incoming / Outgoing Bandwidth | 148Mbps / 72Mbps | |
| DHCP, HTTPS, SSL, DDNS | Yes | |
| Transmission Rate | MAX 480 FPS | |
| Bandwidth Control | Yes | |
| Web Browser Access | Yes | |
| Remote Monitoring, Playback, and Archiving | Yes | |
| Remote Health Check | Yes | |
| VMS Support | Yes | |
| Onvif Camera Support | Yes (Profile-S) | |
| Two-Way Audio | Yes | |
| PC Based Remote Agent | Yes | |
| Smart Phone Application | Yes (iPhone, iPad,Android) | |
| Web Based RemoteAgent | Yes | |
| SDK | Yes (HTTP BasedSDK, PC CodecLibrary) | |
| IP Filtering | Yes | |
| Auto Router Port Forwarding | Yes | |
| Dual Streaming | Yes | |
| FTP Client | Yes (For Archiving) | |
| Yes (SMTP Client) | ||
| Authority Control | Admin / Manager / User | |
| Auto IP Cam Installation (Plug and Display) | Yes | |
| Protocols | WS-Discovery, RTP, RTSP, RTCP,S MTP, NTP, HTTP, FTP, DDNS, DHCP, uPNP (Router Port Forwarding), HTTPS,SSL | |
| WiFi | - | |
Event & Actions | Alarm Out | Yes |
| Event Notification | Yes | |
| Video Popup | Yes | |
| Alarm Sensor Event | Yes | |
| Video Loss Event | Yes | |
| Motion Detection Event | Yes | |
| Motion Sensor Area | Dependant on IP Camera | |
| Disk Event | Yes | |
| System Event | Yes | |
| Network Event | Yes | |
Storage | Disk S.M.A.R.T Check | Yes (Dependant on HDD Spec) |
| External Storage | Yes (eSATA, NAS (for Backup)) | |
| Auto Disk Recovery | Yes | |
| Deleting Partial Data | Yes | |
| User | Group Authority | Yes (Admin / Manger / User) |
Additional | Operating System | LINUX® |
| F/W Upgrade | Yes (USB / Network) | |
| Setup Import/Export | Yes | |
| Keyboard Controller | No | |
| Backup Viewer | Yes (Multi-channel Playback Support ) | |
| Language | Multi-Language | |
| Video Analytics | Yes, in combination with 4MP Ganz PixelProCameras | |
AI | SMART Motion | YES (Dependant on IP camera ) |
| AI Rule R0 Support (Basic AI Rule Setup) | YES (Dependant on IP camera/AIBOX) | |
| AI Rule R1 Support (Smart Event Receiver) | YES (Dependant on IP camera/AIBOX) |
