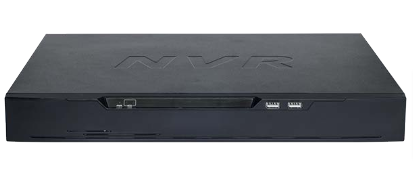

Ganz - NR8-16F82-4TB - 16CH 2HDD 16CH PoE 4K NVR 4TB
Part number:
NR8-16F82-4TB
Price:
16CH 2HDD 16CH PoE 4K NVR 4TB
Key Features
- Up to 16-ch IP camera access
- Up to 160 Mbps incoming/outgoing bandwidth
- Up to 1-ch @ 12MP/4-ch @ 4MP/8-ch @ 1080P/16-ch D1 decoding capacity
- Supports mask detection, facial recognition, and multi-object recognition
- Supports some specialty cameras, including people-counting cameras, ANPR
- cameras, fisheye cameras, panoramic cameras and thermal cameras
- Supports VCA alarm linkage
- Up to 4-ch perimeter protection
- Plug & play with a 16 PoE interface
- Supports 1 HDMI and 1 VGA interface
| Video Input | |
| IP Camera Input | 16 Channel |
| Incoming Bandwidth | 160 Mbps (112 Mbps with AI enabled) |
| Outgoing Bandwidth | 160 Mbps (112 Mbps with AI enabled) |
| Video Output | |
| HDMI Output | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 |
| VGA Output | 1920 × 1080, 1280 × 1024, 1024 × 768 |
| Different Source Output | Support |
| Decoding Capacity | 1ch 12MP, 4ch 4MP, 8ch 1080P, 16ch D1 |
| Dual Stream | Support |
| Multi-screen Display | 1/4/9/16 |
| AI Recognition | |
| Face Comparison | Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity) |
| Multi-objective | Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity) |
| Smart Search | Time, Properties, Pictures, License plate |
| Trigger Events | Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc. |
| Recording | |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
| Recording Mode | Manual, Schedule (Regular, Continuous), Event |
| Trigger Events | Motion Detection, Video Loss, Alarm in, IVS |
| Playback and Backup | |
| Sync Playback | 16/9/4/1 |
| Search Mode | Time/Date, Alarm, Picture Grid, Event |
| Backup Mode | USB Device, Network |
| Alarm | |
| General Alarm | Motion Detection, Video Loss, Alarm in, Alarm out |
| Intelligent Analysis (By Camera) | Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Smart motion detection, Enter Area, Leave Area, etc. |
| Abnormal Alarm | Disk Alarm, IP Address Conflict, Network Disconnect |
| Intrusion Detection (By NVR) | 4-ch, support the accurate detection of human and vehicle |
| Network | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
| Remote Users | 8 users |
| P2P | Support |
| Interoperability | ONVIF, SDK, CGI |
| Storage | |
| ANR | Support |
| Disk Group | Support |
| Interface | |
| HDD Interface | 2 SATA interfaces, up to 12TB capacity for each disk |
| Network Interface | 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| PoE Interface | 16 ports, 10/100Mbps, 802.3af/at, max 128W |
| HDMI | 1 |
| VGA | 1 |
| Audio In/Out | 1/1 |
| Alarm In/Out | 8/2 |
| USB Interface | Front panel: 2 × USB 2.0, Rear panel: 1 × USB 2.0 |
| Reset Button | On-board reset button |
| General | |
| Power Supply | 100 to 240VAC |
| Power Consumption | < 15 W (without HDD) |
| Operating Conditions | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Conditions | Less than 90% RH |
| Certifications | CE/FCC |
| Dimensions | 16.65 × 12.33 × 1.83 inch (372 × 311.2 × 46.4 mm) |
| Net Weight | 6.05 lb (2.75 kg) without HDD |
