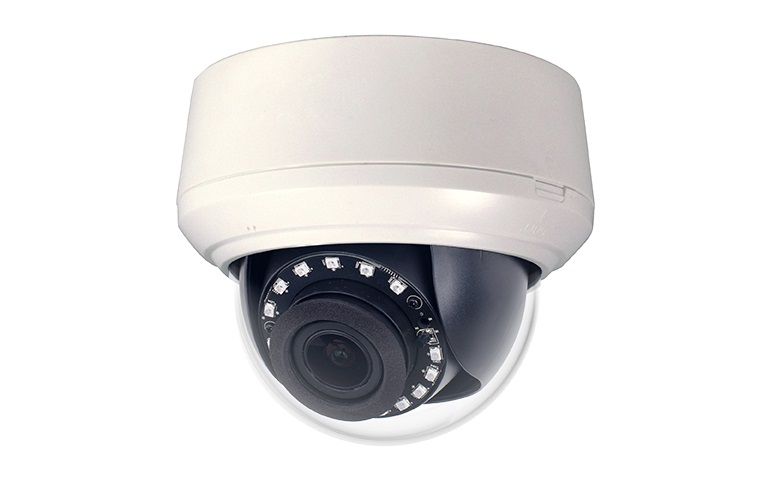

Ganz - Z8-D2M-2 - 1080p AHD Indoor Hybrid Motorized Dome
Part number:
Z8-D2M-2
Price:
1080p, 2.8-12mm MFZ, IR, dWDR, 12VDC/24VAC, 4-in-1
Features:
- 1/2.8" SONY Progressive Scan CMOS
- 2.8-12mm Motorized Lens
- Full HD 1080p @ 30fps
- 4-in-one AHD/TVI/CVI/CVBS
- True Day/Night
- 984 (300m) Video Transmission
- IR Range 98
- 2D/3D DNR, WDR, ICR, BLC
| Image Sensor | 1 / 2.8” Progressive Scan CMOS |
| Signal System | NTSC/PAL |
| Minimum Illumination | Color:0.001Lux@(F1.2, AGC ON) / B/W:0LUX@(IR LED ON) |
| S/N Ratio | ≥50dB |
| Day / Night Performance | True Day / Night (ICR) |
| Wide Dynamic Range | Digital WDR |
| Shutter Speed | NTSC:1/30s-1/10000s |
| Digital Noise Reduction | 2D / 3D |
| Lens | 2.8-12mm Lens |
| Iris | Fixed |
| Field of View | 90° ~ 35° |
| IR LED | 15 IR LEDs (98’ Range) |
| IR Wavelength | 850nm |
| OSD Joystick | Support |
| Up the Coax | Support |
| Max. Resolution | NTSC:1920x1080/30fps / PAL:1920x1080/25fps |
| Alarm Trigger | Mirror, Defog, HLC, Privacy Masking, Motion Detection |
| Max Distance | 75-5 984’ (300m) |
| Video Output | AHD / TVI / CVI / CVBS |
| Power Supply | 12VDC/24VAC ±10% |
| Power Consumption | 4.5W (Max 12V DC, IR ON) |
| Operating Temperature | 14°F ~ 131°F (-10°C ~ 55°C) |
| Operating Humidity | 0% - 85% RH |
| Material | Metal |
| Dimensions | 5.1” (Ø) x 4.4” / 130mm (Ø) x 112mm |
| Weight | 0.93lb (0.42kg) |
| Certifications | CE, FCC |
