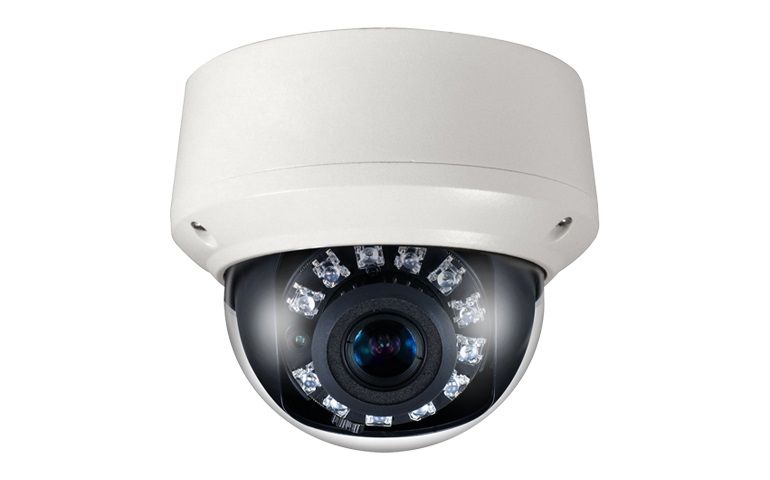

Ganz - Z8-VD2V-2 - 1080p AHD Outdoor Hybrid IR Dome
Part number:
Z8-VD2V-2
Price:
1080p,2.8-12mm, IR, dWDR, IP67, 12VDC/24VAC, 4-in-1
Features:
- 1/2.8" SONY Progressive Scan CMOS
- 2.8-12mm Lens
- Full HD 1080P @ 30fps
- 4-in-one AHD/TVI/CVI/CVB
- True Day/Night 1080p AHD Outdoor Hybrid IR Dome Z8-VD2V-2
- 984' (300m) Video Transmission
- IR Range 98’
- 3D DNR, WDR, ICR, BLC
- IP67, IK10
| Image Sensor | 1 / 2.8” Progressive Scan CMOS |
| Signal System | NTSC/PAL |
| Minimum Illumination | Color: 0.001 Lux @ (F1.2,AGC ON) / B/W: 0 LUX@ (IR LED ON) |
| S/N Ratio | >50dB |
| Day / Night Performance | True Day / Night (ICR) |
| Wide Dynamic Range | Digital WDR |
| Shutter Speed | NTSC:1/30s-1/10000s |
| Digital Noise Reduction | 3D DNR, AUTO/MANUAL(0-30) |
| Lens | 2.8-12mm Lens |
| Iris | Fixed |
| Field of View | H: 110° ~ 39.3°, V:60.5° ~ 23.1° |
| IR LED | 12 IR Piranha LEDs (98’ Range) |
| OSD Joystick | Support |
| Up the Coax | Support |
| Max. Resolution | 1920x1080 / 30fps |
| Alarm Trigger | Mirror, Defog, HLC, Privacy Masking, Motion Detection |
| Max Distance | 75-5 984’ (300m) |
| Video Output | AHD / TVI / CVI / CVBS |
| Power Supply | 12VDC/24VAC ±10% |
| Power Consumption | 4.5W Max (12VDC, IR ON) |
| Operating Temperature | 14 °F ~ 131 °F (-10 °C ~ 55 °C) |
| Operating Humidity | 0% - 85% RH |
| Material | Aluminum Alloy |
| Dimensions | 5.1” (Ø) x 4.4” / 130mm (Ø) x 112mm |
| Weight | 1.5 lb / 0.67 kg |
| Certifications | CE, FCC, IP67, IK10 |
