Ganz - ZA8-CBK101A - Pole Mount for ZNT8-B1F Thermal Camera

Product Overview

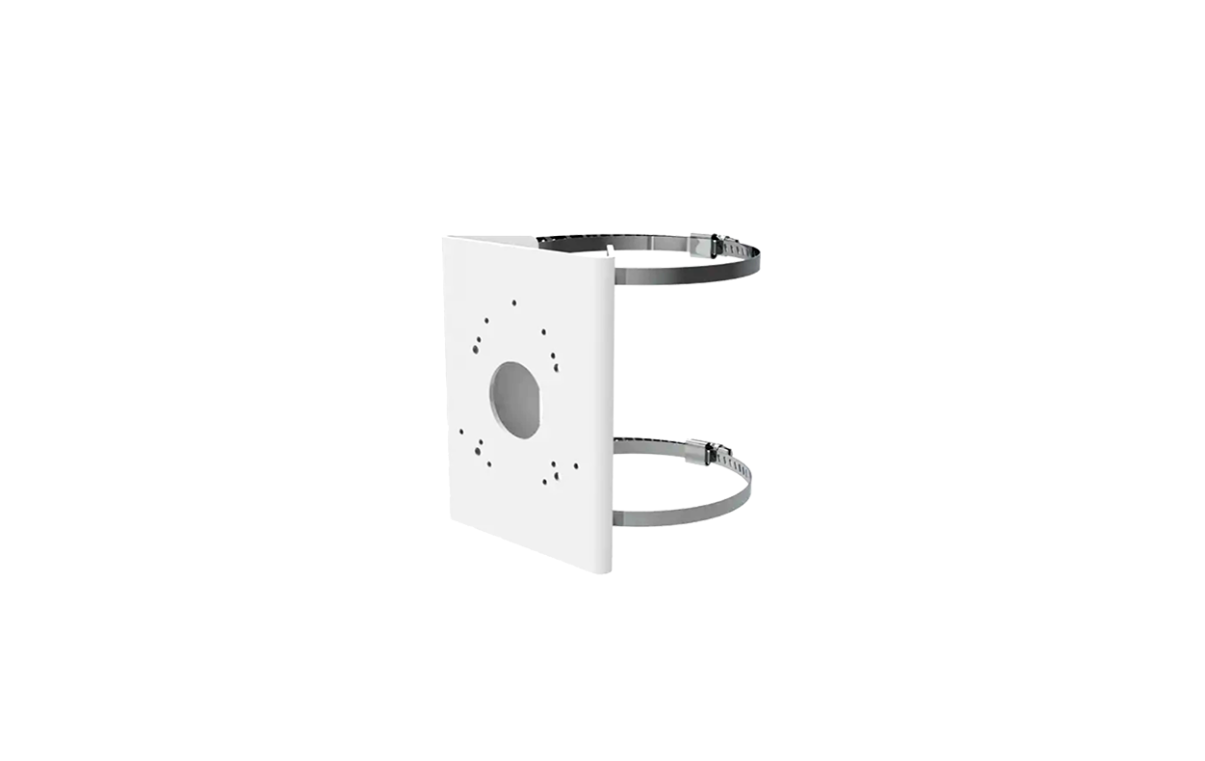

The Ganz ZA8-CBK101A is a pole-mount bracket designed for ZNT8-B1F thermal bullet cameras. Constructed from aluminum alloy and stainless steel with a white finish, it supports equipment weighing up to 4 kg and accommodates pole diameters from 130 to 152 mm.

Key Configuration

Model: ZA8-CBK101A | Compatible Camera: ZNT8-B1F series | Mounting Type: Pole mount | Material: Aluminum alloy and stainless steel | Load Capacity: 4 kg | Pole Diameter: 130-152 mm

Key Features

• · Pole-mount bracket for Ganz ZNT8-B1F thermal bullet cameras
• · Supports a maximum equipment load of 4 kg
• · Fits poles with a 130-152 mm diameter range
• · Aluminum alloy and stainless-steel construction provides a durable mounting structure
• · White finish matches compatible camera installations
• · Designed for stable outdoor camera positioning on poles
• · Compact dimensions support practical pole installation

Technical Context

The bracket transfers the camera load to a pole through a wraparound mounting hoop. Its 130-152 mm diameter range and 4 kg load rating are suitable for the specified ZNT8-B1F camera family when the pole and mounting surface meet the installation requirements.

Installation Notes

The bracket measures 130.2 × 46 × 170 mm and weighs 0.41 kg. Verify that the pole diameter is within the 130-152 mm range and that the mounted camera does not exceed the 4 kg load capacity. The accessory is intended for ZNT8-B1F series cameras.
