Ganz - ZN-AIBOX-PRO - New Generation AI-Based Intelligent Video Analytics Solution
Product Overview

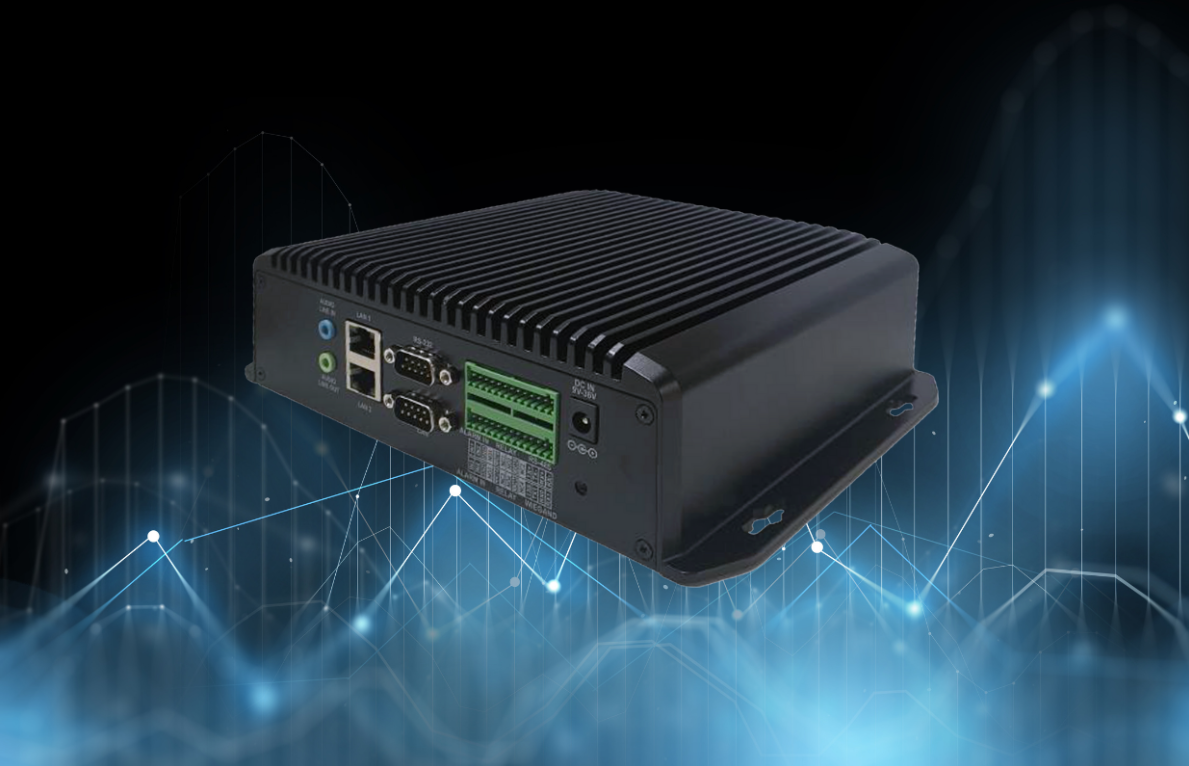

The Ganz ZN-AIBOX-PRO is an on-premise AI video analytics appliance designed to run multiple intelligent applications simultaneously across IP camera channels. It supports up to 16 camera channels in extension mode, 4K video input at up to 60 fps, and more than 50 AI applications for human, vehicle, behavior, safety, and scene analysis. RTSP and ONVIF compatibility, event-action automation, and optional LTE, GPS, cloud, and local recording functions support flexible security deployments.
Key Configuration
Model: ZN-AIBOX-PRO | Camera Capacity: 8-channel basic package, up to 16-channel extension mode | Video Input: Up to 4K at 60 fps, H.265/H.264 via RTSP or ONVIF | Connectivity: 2 × 10/100/1000Mbps Ethernet, USB 3.0, RS-485, RS-232, Wiegand | Power: DC 9-36V, 12V/3.3A adapter
Key Features
- · Supports up to 16 IP camera channels in extension mode
- · Runs more than 50 on-premise AI video analytics applications
- · Supports multiple AI algorithms simultaneously on a single channel
- · Accepts 4K video at up to 60 fps and 2MP video at up to 240 fps
- · Supports RTSP, RTSP over HTTP/S, and ONVIF video input
- · Provides intrusion, loitering, people, vehicle, zone, occupancy, fire, smoke, and fallen-person detection applications
- · Event actions support HTTP, TCP, FTP, email, S3, VMS, ONVIF, and audio back-channel handlers
- · Includes four alarm inputs and four relay outputs rated up to 3A and 30VDC/250VAC
- · Provides dual Gigabit Ethernet, USB 3.0, RS-485, RS-232, and Wiegand interfaces
- · Supports optional LTE/GPS modules, cloud dashboard, and M.2 NVMe recording
Technical Context
The appliance processes video locally using scene interpretation and AI analytics, reducing dependence on external cloud processing and helping filter false alarms. Its event-action engine can combine system and analytic events with automated notifications, VMS commands, network requests, snapshots, and annotated video streams. Optional hybrid AI boost applications can extend the analytics package for specialized detection tasks.
Installation Notes
The fanless appliance supports wall or desktop mounting and measures 213.6 × 175.8 × 60 mm. It operates from DC 9-36V with a maximum consumption of 16W without an NVMe SSD. The operating temperature range is -30°C to 70°C without an NVMe SSD, or -20°C to 60°C with a commercial NVMe SSD; relative humidity is 10% to 90% non-condensing.
| Technical Specifications | |
| Product Model | ZN-AIBOX-PRO |
| Product Type | On-premise AI and video analytics appliance |
| AI Application Capacity | Supports more than 50 AI applications Multiple AI algorithms can run simultaneously on a single channel |
| Camera Channel Capacity | Up to 16 camera channels |
| Available Configurations | 16-channel basic package 8-channel extension package 8-channel advanced package |
| AI Features | Human behavior analysis, false-alarm reduction, accurate event detection, hybrid AI boost mode, and scene interpretation |
| Video and AI Processing | |
| Maximum Video Input | 4K at 60 fps 2MP at up to 240 fps, depending on configuration |
| Video Input Protocols | RTSP, RTSP over HTTP/HTTPS, and ONVIF |
| Supported Video Formats | H.265 and H.264 |
| Video Output Methods | RTSP over TCP/UDP, RTSP over WebSocket, and RTSP over HTTP/HTTPS |
| Basic AI Applications | Dynamic privacy masking, dynamic face masking, license plate masking, basic attributes, intrusion detection, loitering detection, people counting, vehicle counting, zone counting, multi-zone counting, virtual fence, stopping detection, stay and go, enter/exit detection, speed anomaly detection, occupancy counting, occupancy car counting, and basic heatmap |
| Advanced AI Applications | e-Crowd detection, advanced visitor analysis, hand and foot intrusion, intentional body gaze detection, imminent threat detection, fallen person detection, animal detection, fire and smoke detection, vehicle type counting, vehicle type detection, thermal intrusion detection, and fish-eye camera support |
| Optional AI Licenses | LPR-US, LPR-Europe, LPR-Japan, LPR-Korea, advanced heatmap, PPE detection, illegal dumping, aggressive behavior detection, PTZ tracking, prolonged human stay, staff exclusion people counting, forklift detection, reverse movement detection, vehicle zone presence, road pedestrian detection, work vehicle hazard detection, bullying detection, vehicle queue management, and hybrid AI boost applications |
| Events and Actions | |
| System Events | Tamper detection, alarm input, virtual alarm input, video loss/recovery, disarm, recurrence, login, and system start |
| Action Handlers | HTTP, TCP, FTP, email, S3, VMS, ONVIF, and audio back channel through the camera speaker |
| Event and Action Rules | Event combining rules, pre-event and post-event snapshots, and annotated video stream support |
| Audio and Interfaces | |
| Audio Input | 1 × 3.5mm audio line-in jack |
| Audio Output | 1 × 3.5mm audio line-out jack |
| Ethernet Interfaces | 2 × 10/100/1000 Base-T Ethernet ports |
| USB | 1 × USB 3.0 port |
| RS-485 | 1 × full-duplex four-wire RS-485 interface |
| RS-232 | 1 × RS-232 D-sub 9 port |
| Wiegand | 1-channel input and 1-channel output |
| Alarm I/O and Expansion | |
| Alarm Inputs | 4-channel digital inputs, 0-30V |
| Relay Outputs | 4-channel relay output Up to 3A and 30VDC/250VAC; NO/COM/NC terminal block |
| LTE/GPS Expansion | 1 × Mini PCIe slot for optional LTE Cat 4/GPS (GNSS) modem |
| SIM Slot | 1 × micro-SIM slot |
| Antenna Connectors | 2 × 50-ohm SMA female connectors for main antennas 1 × 50-ohm SMA female connector for GPS/GNSS antenna Optional LTE/GPS module and antennas |
| Storage | |
| Internal SD Card | 1 × internal SD card slot |
| NVMe SSD Expansion | 1 × M.2 M-Key slot for M.2 2280 NVMe SSD 8-channel recording license available as an option |
| System Features | |
| Watchdog | Supported |
| Real-Time Clock | Supported |
| Factory Reset | Factory reset button |
| Cooling | Fanless design |
| LED Indicators | Power, system status, alarm input, and alarm output indicators Three-color LEDs |
| Electrical | |
| Power Supply | 12VDC, 3.3A adapter DC input range: +9V to +36V |
| Power Consumption | 16W Without NVMe SSD |
| Mechanical | |
| Dimensions (W × D × H) | 213.6 × 175.8 × 60 mm 8.4 × 6.9 × 2.4 in |
| Net Weight | 1.5 kg (3.3 lb) |
| Gross Weight | 2.2 kg (4.9 lb) |
| Installation | Wall-mount or desktop-mount |
| Environmental Conditions | |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) Without NVMe SSD -20°C to 60°C (-4°F to 140°F) With commercial NVMe SSD |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Certifications and Compliance | |
| Certifications | CE, FCC, KC, UKCA |
| Compliance | NDAA compliant |
