Ganz - ZN-AIBOX4-PRO - New Generation AI-Based Intelligent Video Analytics Solution, 4 Channel
Product Overview

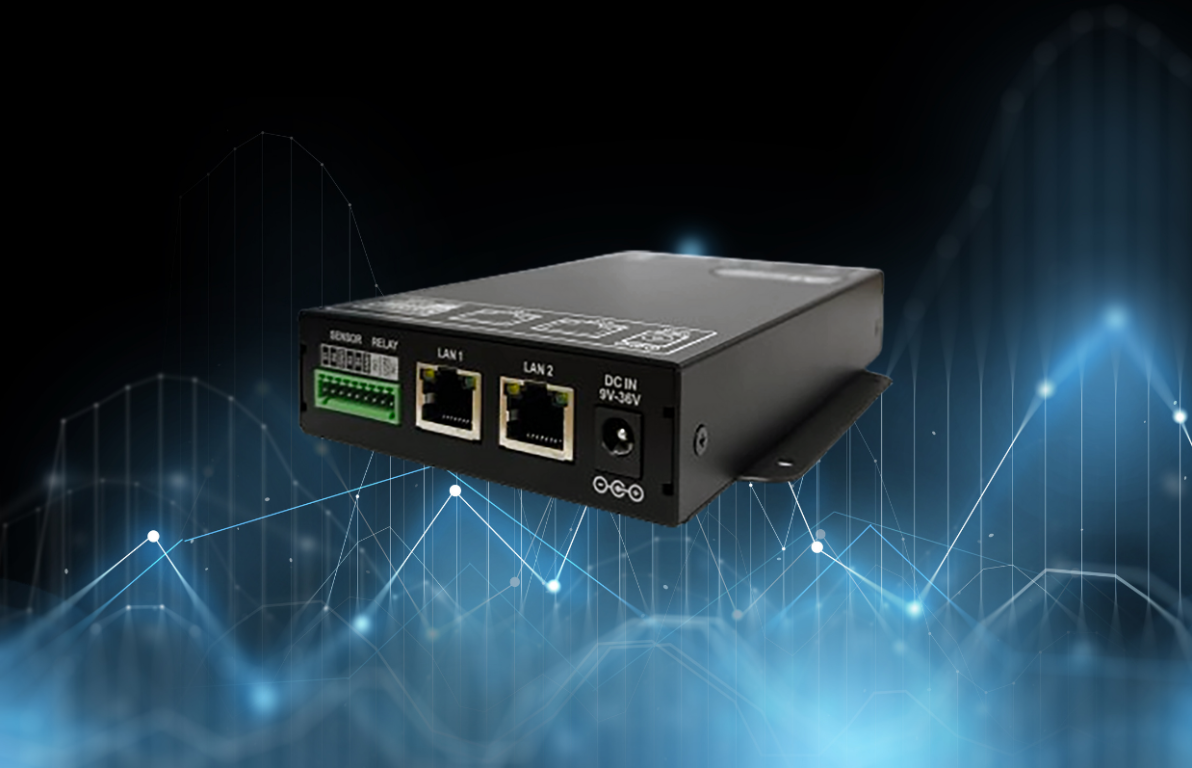

The Ganz ZN-AIBOX4-PRO is a compact, fanless AI video analytics appliance for on-premise processing of up to four IP camera channels. It supports more than 50 AI applications, 4K video input at up to 30 fps, and simultaneous analytics based on scene interpretation and human behavior analysis. RTSP and ONVIF compatibility, event-action automation, and optional cloud dashboard and local NVMe recording provide flexible deployment options.
Key Configuration
Model: ZN-AIBOX4-PRO | Camera Capacity: 4 channels | Video Input: Up to 4K at 30 fps, H.265/H.264 via RTSP or ONVIF | Connectivity: 2 × 10/100Mbps RJ-45, USB 2.0, audio line input/output | Power: DC 9-36V, 12V/3.3A adapter
Key Features
- · Supports four IP camera channels with on-premise AI processing
- · Provides more than 50 AI video analytics applications
- · Supports multiple AI algorithms running on a single channel
- · Accepts 4K video at up to 30 fps and 2MP video at up to 120 fps
- · Supports RTSP, RTSP over HTTP/S, and ONVIF video input
- · Includes people, vehicle, zone, occupancy, virtual fence, stopping, and enter/exit detection
- · Event actions support HTTP, TCP, FTP, email, S3, VMS, ONVIF, and audio back-channel handlers
- · Provides four alarm inputs and one dry-contact relay output
- · Includes dual 10/100Mbps Ethernet ports, USB 2.0, and audio line input/output
- · Supports optional M.2 NVMe recording, cloud dashboard, and per-channel analytics licenses
Technical Context
The appliance processes video locally using AI-based scene interpretation, enabling analytics and event detection without relying on external cloud processing. Its event-action engine can combine system and analytic events with snapshots, annotated streams, notifications, VMS commands, and network actions. Optional application licenses extend the pre-installed analytics package with functions such as LPR, advanced heatmaps, PPE detection, PTZ tracking, and workplace safety monitoring.
Installation Notes
The fanless unit supports desk or wall mounting and measures 94 × 153 × 28 mm. It operates from DC 9-36V with a maximum consumption of 6.7W without an NVMe SSD. The operating temperature range is -30°C to 70°C without an NVMe SSD, or -15°C to 50°C with a commercial NVMe SSD; relative humidity is 10% to 90% non-condensing.
| Technical Specifications | |
| Product Model | ZN-AIBOX4-PRO |
| Product Type | On-premise AI and video analytics appliance |
| Camera Channel Capacity | Up to 4 camera channels |
| AI Application Capacity | More than 50 AI applications Multiple AI algorithms can run simultaneously on a single channel |
| AI Processing | Advanced human behavior analysis, multi-level false-alarm reduction, scene interpretation, and hybrid AI boost mode |
| AI Applications | |
| Pre-installed Applications | People counting, stay and go, vehicle counting, enter/exit detection, zone counting, speed anomaly detection, multi-zone counting, occupancy counting, virtual fence, occupancy car counting, and stopping detection |
| Optional Applications | LPR-US, LPR-Europe, LPR-Japan, LPR-Korea, advanced heatmap, PPE detection, illegal dumping, aggressive behavior detection, PTZ tracking, prolonged human stay, staff exclusion people counting, forklift detection, reverse movement detection, vehicle zone presence, road pedestrian detection, work vehicle hazard detection, bullying detection, vehicle queue management, and hybrid AI boost applications |
| Video | |
| Maximum Video Input | 4K at 30 fps 2MP at up to 120 fps |
| Video Input Protocols | RTSP, RTSP over HTTP/HTTPS, and ONVIF |
| Supported Video Formats | H.265 and H.264 |
| Video Output Methods | RTSP over TCP/UDP, RTSP over WebSocket, and RTSP over HTTP/HTTPS |
| Events and Actions | |
| System Events | Tamper detection, alarm input, virtual alarm input, video loss/recovery, disarm, recurrence, login, and system start |
| Action Handlers | HTTP, TCP, FTP, email, S3, VMS, ONVIF, and audio back channel through the camera speaker |
| Event and Action Rules | Event combining rules, pre-event and post-event snapshots, and annotated video stream support |
| Audio and Interfaces | |
| Audio Input | 1 × 3.5mm audio line-in jack 10kΩ, 1Vrms |
| Audio Output | 1 × 3.5mm audio line-out jack 600Ω, 1Vrms |
| Ethernet Interfaces | 2 × RJ-45 10/100 Base-T Ethernet ports |
| USB | 1 × USB 2.0 port |
| RS-485, RS-232, and Wiegand | Not supported |
| Alarm I/O | |
| Alarm Inputs | 4-channel digital input, 0-30V Pulled up to 5V through 10kΩ |
| Relay Output | 1-channel dry-contact relay 30VDC/250VAC, NO/COM/NC terminal block |
| Storage and System Features | |
| Internal SD Card | 1 × internal SD card slot |
| NVMe SSD Expansion | 1 × M.2 M-Key slot for M.2 2280 NVMe SSD Optional 4-channel recording license |
| Watchdog | Supported |
| Real-Time Clock | Supported |
| Cooling | Fanless design |
| Factory Reset | Factory reset button |
| LED Indicators | Power and system status indicators Three-color LEDs |
| Electrical | |
| Power Supply | 12VDC, 3.3A adapter DC input range: +9V to +36V |
| Power Consumption | 6.7W Without NVMe SSD |
| Mechanical | |
| Dimensions (W × D × H) | 94 × 153 × 28 mm 3.7 × 6 × 1.1 in |
| Net Weight | 0.45 kg (1 lb) |
| Gross Weight | 1.05 kg (2.3 lb) |
| Installation | Desktop or wall mount |
| Environmental Conditions | |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) Without NVMe SSD -15°C to 50°C (5°F to 122°F) With commercial NVMe SSD |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Certifications and Compliance | |
| Certifications | CE, UKCA, FCC, KC planned |
| Compliance | NDAA compliant |
