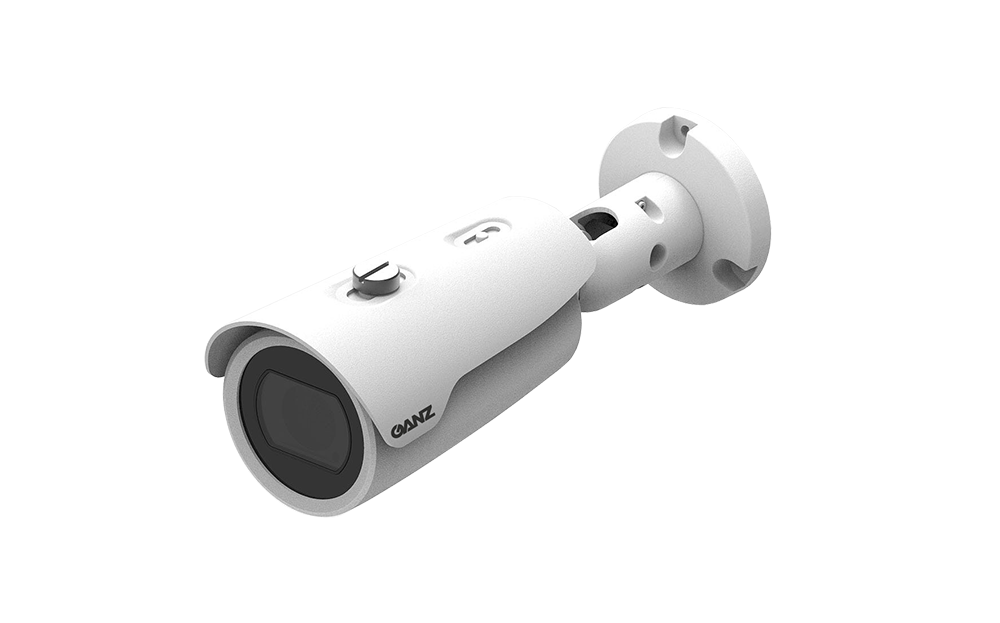

Ganz - ZN-B5M212DP - 5MP IR, IP Bullet, 2.8-12mm with AI-Based Smart Motion Detection (outdoor)
Part number:
ZN-B5M212DP
Price:
5MP IR, IP Bullet, 2.8-12mm with AI-Based Smart Motion Detection (outdoor)
Features:
- 5 Megapixel Resolution
- 2.8-12mm MFZ Lens
- AI-Based Smart Motion Detection
- Smart IR up to 90’
- True Day/Night & True WDR
- Triple Power - 12VDC, 24VAC, PoE
- IP67
- NDAA Compliant
| Model | ZN-B5M212-DP | |
| CAMERA | Max Res / Frame Rate | 2592 x 1520 / 30fps |
| Sensor | 1/2.8” Progressive scan CMOS | |
| Recording Pixels | 2592 x 1520 | |
| LENS | Lens | MFZ 2.8 ~ 12mm |
| Aperture / Iris | F1.4, P-iris | |
| Optical Zoom | x4.3 | |
| Angle of View (H / V / D) | 95.9/67.3/123.7 ~ 29.8/22.3/36.51 (TBD) | |
| VIDEO | Day & Night | Removable IR Cut Filter |
| D -> N threshold | SW selectable | |
| N -> D threshold | SW selectable | |
| Min. illumination | 0.02 Lx / F1.4 at color | |
| Micro SD Card | Yes | |
| Analog Video Out | No | |
| 3D DNR | Yes | |
| WDR | True WDR / 120dB | |
| Image Compression | H.264 / H.265 / MJPEG | |
| VBR+ | Yes | |
| Streaming | Triple Streaming (2 x H.264/H.265 + 1 x JPEG) | |
| SDK | HTTP based API, Onvif Profile S | |
| AI | Object Detector and Tracker | |
| Video Analytics | Yes | |
| INTERFACE | Alarm In / Out | 1 / 1 |
| AUDIO | Audio In / Out | 1x RCA (whip) / 1x RCA (whip) |
| Audio CODEC | G.711 | |
| POWER | Power Supply | 12VDC / 24VAC / PoE (class-3) |
| Power Consumption | 13.3W | |
| PHYSICAL | Temperature / Ambient Humidity | -22o ~ 140o F (-30o ~ 60o C) / less than 90%, Non-condensing |
| Materials | Aluminum diecasting | |
| IR Number / Distance | 4 ea / 90' (30M), Smart IR | |
| Weight | 2.2lbs / 1.02kg | |
| Dimensions mm | 12.2" (straight) x 4.1" (base) / 310.9mm (straight) x 105.3mm (base) | |
| Certifications | IP67, IK10, Onvif Profile S, NDAA Compliant |
