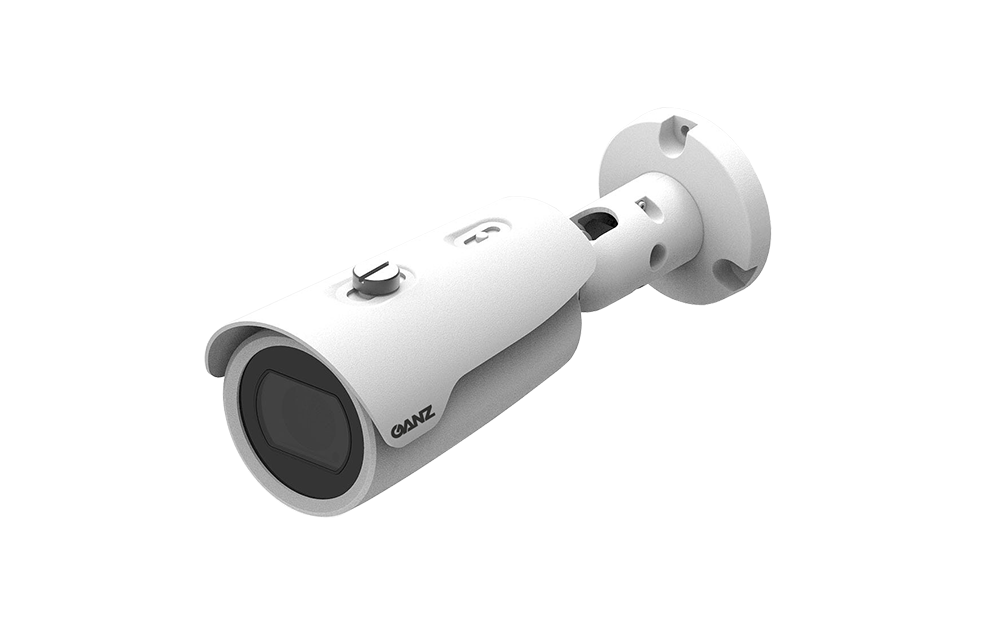

Ganz - ZN-B8M213DP - 4K IR, IP Bullet, 2.7~13.5mm MFZ with AI-Based Smart Motion Detection (outdoor)
Part number:
ZN-B8M213DP
Price:
4K IR, IP Bullet, 2.7~13.5mm MFZ with AI-Based Smart Motion Detection (outdoor)
Features:
- 4K resolution
- 2.7~13.5mm MFZ
- AI-Based Smart Motion Detection
- Smart IR up to 90’
- True Day/Night & True WDR
- Triple Power - 12VDC, 24VAC, PoE
- IP67
- NDAA Compliant
| MODEL | ZN-B8M213DP |
| Image Sensor | 1/2.8” CMOS Progressive scan |
| Effective Pixel | 3840 x 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), BW: 0 Lux (IR LED) |
| Electric Shutter Speed | Auto/Manual, 1/4 ~ 1/10000s |
| IR distance / LED distance | Adaptive IR, 30m |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Pan/Tilt/Rotation | 360 / 90 / 360 |
| LENS | |
| Focal Length / Focus | 2.7~13.5mm / Auto |
| Aperture | F1.4 |
| Iris | P-iris |
| Angle of View FOV (H/V/D) | 94.9/86.2/121.5 ~ 28.5/17.6/33.6 (TBD) |
| VIDEO | |
| Video Compression | H.264 / H.265 / MJPEG |
| Streaming Capacity | Triple Streaming + SVC Stream (3 x H.264/H.265 + 1 x SVC + 1 x JPEG) |
| Stream | Main stream: 3840x2160, 2592x1944, 2592x1520, 2304x1296, 2048x1536, 1920x1080, 1280x1024, 1024x768, 1280x720, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 Second/Third stream: 640x480, 640x360, 352x288, 352x240 |
| Max Video Frame-rate | 3840x2160 20fps, 2592x1944 30fps |
| Video Bit-rate | Main Stream : 512 ~ 15000 kbps Second Stream : 512 ~ 8000 kbps Third Stream : 512 ~ 8000 kbps |
| Video Bit-rate Control | CBR/VBR/VBR+ |
| Enhancement | BLC, 3DNR, TWDR (120dB) |
| White Balance | ATW / Manual |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off/Manual (8 Zone) |
| Flip Horizontal / Flip Vertical | Support |
| Privacy Masking | On / Off (4 Area, Polygon) |
