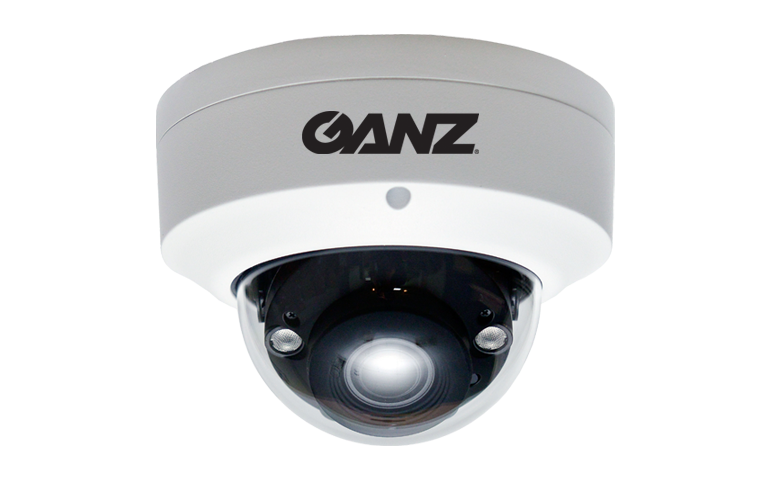

Ganz - ZN-D5M212DLP - 5MP IR, IP Dome, 2.8-12mm with AI-Based Smart Motion Detection (indoor)
Part number:
ZN-D5M212DLP
Price:
5MP IR, IP Dome, 2.8-12mm with AI-Based Smart Motion Detection (indoor)
Features:
- 5 Megapixel Resolution
- 2.8 - 12mm Motorized Varifocal Lens
- MFZ system allows zoom and focus directly from PC
- True WDR (Wide Dynamic Range)
- True Day/Night Performance
- Smart IR LEDs
- AI-Based Smart Motion Detection
- Triple Power (12VDC/24VAC/PoE)
- External alarm / audio I/O
- NDAA Compliant
| Model | ZN-D5M212-DLP |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 2592 x 1944 (5MP) |
| Minimum Illumination | Color: 0.003 Lux @ (F1.4, AGC ON) BW: 0 Lux (IR LED) |
| Day / Night Performance | True Day / Night (ICR) |
| Day / Night Threshold | SW selectable |
| Wide Dynamic Range | True WDR / 120dB |
| Iris | P-Iris |
| Digital Noise Reduction | 3D DNR |
| Lens | 2.8~12mm MFZ |
| Field of View (H/V/D) | 95.9/67.3/123.7 ~ 29.8/22.3/36.51 (TBD) |
| IR LED | Smart IR LEDs (90’ Range) |
| Max. Resolution | 2592x1944 @30fps |
| Image Compression | H.264 / H.265/ MJPEG |
| Optical Zoom | 4.3x |
| Analog Output | No |
| Bit Rate (VBR+) | Yes |
| Audio Compression | G.711 |
| Audio Input / Output | 1 / 1 |
| Stream | Triple Streaming (2 x H.264/H.265 + 1 x JPEG) |
| Privacy Mask | On / Off (4 Area, Polygon) |
| Video Analytics | Yes |
| AI | Object detector and Tracker |
| Micro SD Card | yes |
| System Compatibility | ONVIF (Profile S), CGI |
| Power Supply | 12VDC / 24VAC / PoE (Class-2) |
| Power Consumption | 13.08W |
| Operating Temperature | -4°F ~ 122°F (-20 °C ~ 50 °C) |
| Operating Humidity | 0% - 90%, Non-condensing |
| Material | Polycarbonate |
| Dimensions | 5.9“ ø x 4.3“ / 150.4mm ø x 109.3mm (h) |
| Weight | 1.65 lbs / 0.75kg |
| Certifications | Onvif Profile S, IK10, NDAA Compliant |
