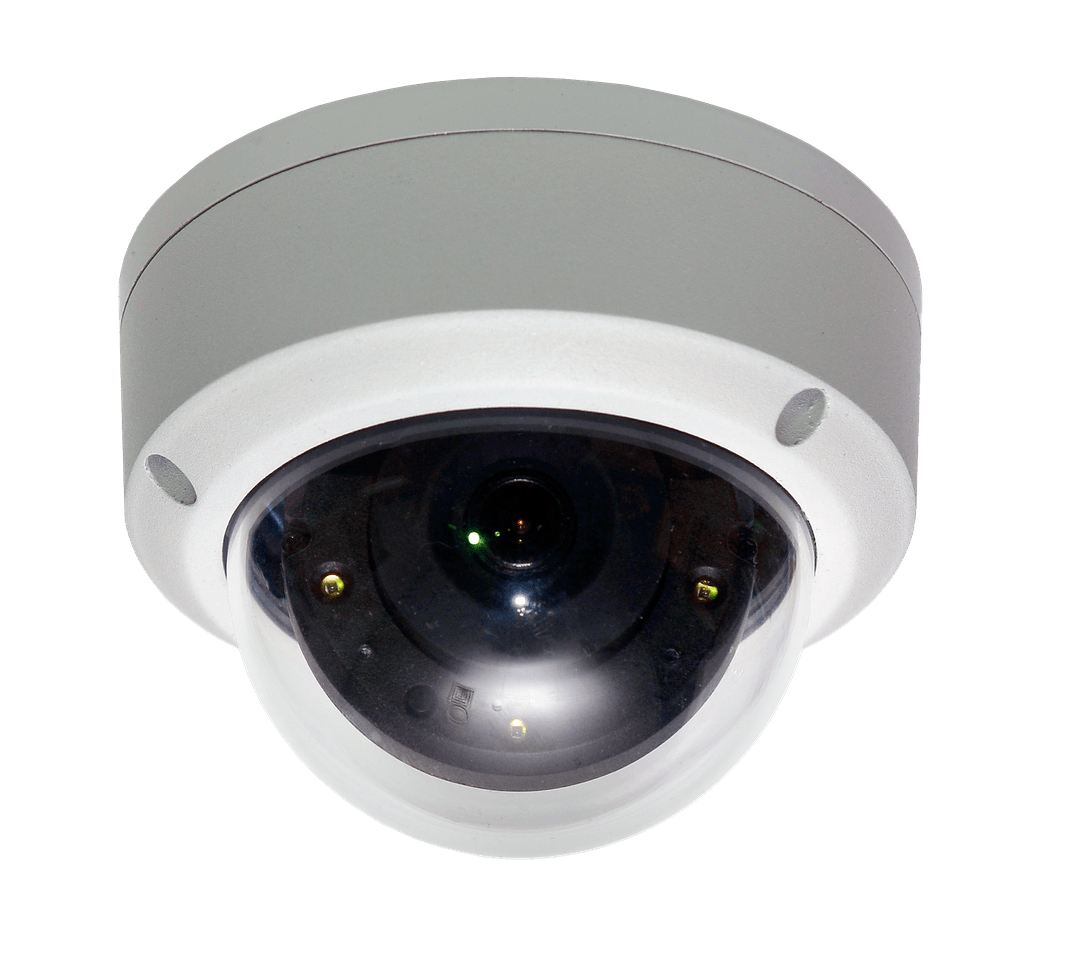

Ganz - ZN-VD5F28DL - 5MP IR, IP Mini Dome, 2.8mm with AI-Based Smart Motion Detection (indoor/outdoor)
Part number:
ZN-VD5F28DL
Price:
5MP IR, IP Mini Dome, 2.8mm with AI-Based Smart Motion Detection (indoor/outdoor)
Features
- 5 Megapixel Resolution
- AI-Based Smart Motion Detection
- 2.8mm Fixed Lens
- Smart IR up to 49’
- True Day/Night & True WDR
- 12VDC, PoE
- IP67, IK10
- Suitable for indoor or outdoor use
- NDAA Compliant
| Model | ZN-VD5F28-DL |
| Image Sensor | 1/2.8” CMOS Progressive scan |
| Effective Pixels | 2592 x 1944 (5MP) |
| Minimum Illumination | Color: 0.003 Lux @ (F1.6, AGC ON) BW: 0 Lux (IR LED) |
| Day / Night Performance | True Day / Night (ICR) |
| Day / Night Threshold | SW selectable |
| Wide Dynamic Range | True WDR / 120dB |
| Iris | Fixed Iris |
| Digital Noise Reduction | 3D DNR |
| Lens | 2.8mm Fixed Lens |
| Field of View (H/V/D) | 105.2 / 75.7 / 135.9 (TBD) |
| IR LED | SMART IR LEDs (66’ Range) |
| Max. Resolution | 2592x1944 @30fps |
| Image Compression | H.264 / H.265 / MJPEG |
| Analog Output | Yes (Installation Only) |
| Bit Rate (VBR+) | Yes |
| Audio Compression | G.711 |
| Stream | Triple Streaming + SVC Stream (3 x H.264/H.265 + 1 x SVC + 1 x JPEG) |
| Audio Input / Output | 1 / 1 |
| Privacy Mask | On / Off (4 Area, Polygon) |
| Micro SD Card | yes |
| AI | Object Detector and Tracker |
| Video Analytics | yes |
| Alarm Input / Output | 1 / 1 |
| Power Supply / Consumption | 12VDC / PoE (Class-1) |
| Operating Temperature | - 4°F ~ 122°F (-20 °C ~ 50 °C) |
| Operating Humidity | 0% - 90%, Non-condensing |
| Material | Aluminum Diecasting |
| Dimensions | 4.5 ø x 3.2“ / 114mm (ø) x 81.8mm (h) |
| Weight | 1.1 lbs / 0.5kg |
| Certifications | IP67, IK10, Onvif Profile S, NDAA Compliant |
