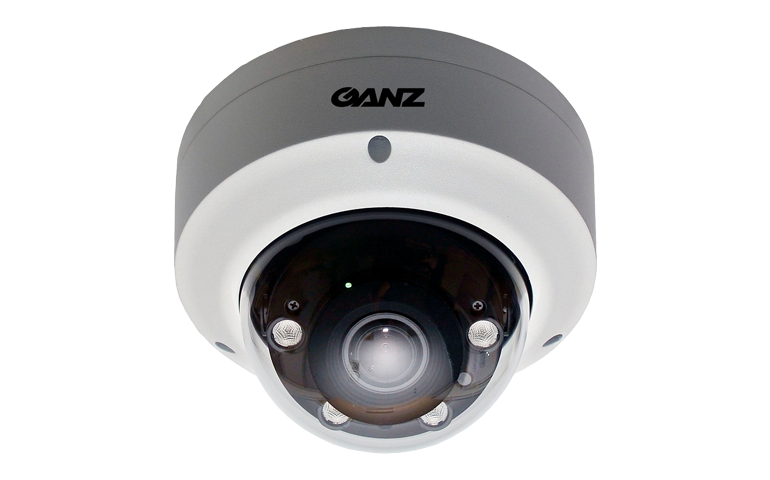

Ganz - ZN-VD8M213DLP - 4K IR, IP Dome, 2.7~13.5mm P-Iris with AI-Based Smart Motion Detection (outdoor)
Part number:
ZN-VD8M213DLP
Price:
4K,2.7-13.5mm MFZ, Smart IR, T-DN, T-WDR, H.264/H.265, POE,12VDC,24VAC, IP67, AI Motion detection
Features:
- 4K resolution
- 2.7~13.5mm MFZ Lens
- Smart IR up to 98’
- Ai-based smart motion detection
- True Day/Night & True WDR
- 4.3x optical zoom
- P-Iris
- 12VDC, 24VAC, PoE
- IP67, IK10
- NDAA Compliant
| MODEL | ZN-VD8M213DLP | |
| Image Sensor | 1/2.8” CMOS Progressive scan | |
| Effective Pixel | 3840 x 2160 | |
| Minimum Illumination | Color: 0.003 Lux @ (F1.4, AGC ON) BW: 0 Lux (IR LED) | |
| Electric Shutter Speed | Auto/Manual, 1/4 ~ 1/10000s | |
| IR Distance / Led Distance | Adaptive IR, 30m | |
| Day & Night | Auto (ICR) / Color / B/W / Schedule | |
| Pan/Tilt/Rotation | 353 / 70 / 227 | |
| LENS | ||
| Focal Length / Focus | 2.7~13.5mm / Auto | |
| Aperture | F1.4 | |
| Iris | P-iris | |
| Angle of View FOV (H/V/D) | 94.9/86.2/121.5 ~ 28.5/17.6/33.6 (TBD) | |
| VIDEO | ||
| Video Compression | H.264 / H.265 / MJPEG | |
| Streaming Capacity | Triple Streaming + SVC Stream (3 x H.264/H.265 + 1 x SVC + 1 x JPEG) | |
| Stream | Main Stream: 3840x2160, 2592x1944, 2592x1520, 2304x1296, 2048x1536, 1920x1080, 1280x1024, 1024x768, 1280x720, 704x576, 704x480, 640x480,640x360, 352x288,352x240 Second/Third Stream : 640x480, 640x360,352x288,352x240 | |
| Max Video Frame Rate | 3840x2160 20fps, 2592x1944 30fps | |
| Video Bit-Rate | Main Stream : 512 ~ 15000 kbps. Second Stream : 512 ~ 8000 kbps, Third Stream : 512 ~ 8000 kbps | |
| Video Bit-Rate Control | CBR/VBR/VBR+ | |
| Enhancement | BLC, 3DNR, TWDR (120dB) | |
| White Balance | ATW / Manual | |
| Gain Control | Auto | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off / On (4 Zone, Rectangle) | |
| Region Of Interest | Off/Manual (8 Zone) | |
| Flip Horizontal / Flip Vertical | Support | |
| Privacy Masking | On / Off (4 Area, Polygon) |
