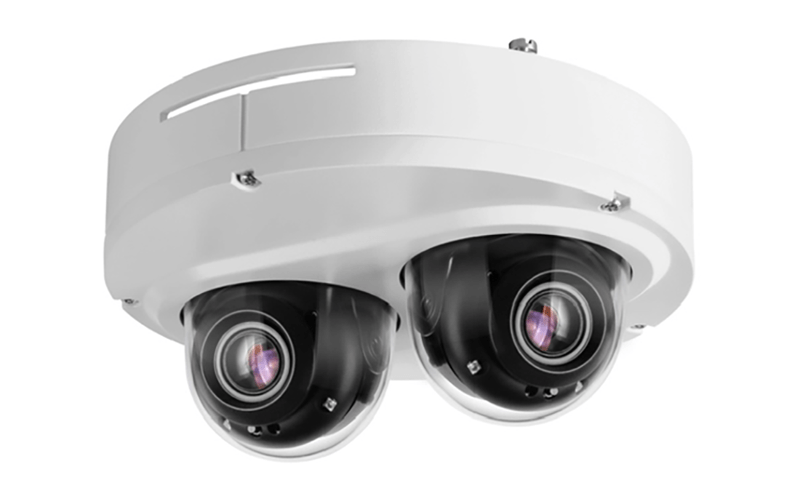

Ganz - ZN1A-2D6DTMZ71 - 10MB IR Dual Sensor IP Camera with 2.7 – 13.5mm Motorized Lens & GXi Video Analytic Technology (Indoor/outdoor)
Part number:
ZN1A-2D6DTMZ71
Price:
10MP Dual Sensor, 2.7-13.5mm Motorized, TWDR, 12VDC/POE+, Low Light, IP67, IK10.
Features:
- 2 x 5MP (10MP), 30fps at 5MP per sensor
- H.265, H.264, and MJPEG compression
- Superior low light performance
- Remote zoom and focus lens (auto-focus)
- One IP address for two cameras
- GXi Video Analytic Technology provides intelligent analysis of video with application areas including intrusion detection, vehicle monitoring, abandoned-object detection, people counting, and loitering detection, as well as camera tampering and failure detection. All at an affordable price.
- SMART IR with 2 LEDs per camera
- SMART Bitrate Control & Region of Interest
- Suitable for indoor or outdoor use
- Power over Ethernet (IEEE 802.3af) / 12VDC
- ONVIF Compliant (Profile S)
- IP67, IK10
- NDAA Compliant
| Model | ZN1A-2D6DTMZ71 | |
CAMERA | Image Sensor | 4 x SONY STARVIS EXMOR 1/2.8” 5M CMOS |
| Effective Pixels | 2592(H) x 1944(V) per sensor | |
| Scanning System | Progressive scanning | |
| AGC Control | Auto | |
| IRIS Type | Auto Exposure | |
| Minimum Illumination | Color: 0.13Lux / B/W: 0.005 Lux | |
| Lens | 2.8 – 8 mm,F1.6, Surround View,Motorized Focus &Zoom lens | |
| Angle of View | Horizontal: Approx. 93° (Wide) to 51° (Tele) | |
| Shutter Time | Auto / Manual: 1/30~ 1/32,000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) | |
| Day &Night | True Day& Night (Removable IR-cut filter) | |
| Wide DynamicRange | True WDR, 120 dB or above | |
| S/N Ratio | 50 dB | |
| IR LED | 2 x High PowerLED per camera | |
IR ILLUMINATOR | IR Working Distance | 30m |
VIDEO | Video Compression | H.265, H.264, MJPEG |
| Profile | H.264 : MP / HP, H.265: MP | |
| Multiple Streaming Performance | 2592x1944/30 + 480p30 withH.264,H265 + MJPEG | |
| Max Resolution | 2592 x 1944 | |
| Video Bit Rate | 100Kbps ~ 10Mbps, Multi-rate for Preview and Recording | |
| Bitrate Control | Multi Streaming CBR/VBR (Controllable framerate and Bandwidth) | |
| Digital NoiseReduction | 3D-DNR | |
| Privacy Mask | 16 programmable zones | |
| Special Features | SMART BitrateControl, Region of Interest | |
| Other Image Processing | Configurable Exposure, White Balance, Sharpness | |
| Analog Output | 1 (Installation only), CVBS 1.0V p-p (75Ώ), 4:3 aspect ratio, Camera selectable | |
| AUDIO | Audio Compression | G.711 |
| Audio input/ output | 1 / 1 (Forthe 1st Camera) | |
EVENT | Event Trigger | Motion Alarm,Temperature critical, DI |
| Pre-Post Recording | Pre: 1~5 sec / Post: 1~240 sec | |
| Event Notification | FTP, E-mail, Alarm-out, SD card | |
NETWORK | Ethernet Standard | 10/100/1000Base-T(1Gbps) |
| IP | IPv4 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | |
| Security | HTTPS(SSL), IP filtering, 802.1x, Digest Authentication | |
| Plug In | ONVIF Profile S, CGI API | |
GENERAL | Material | Aluminum Die-casting, White |
| External I/O Terminals | 1 x Alarm In / 1 x AlarmOut (For the 1st Camera) | |
| Language on web page | English | |
| Power Source | 12VDC, UltraPoE (IEEE 802.3btClass5) | |
| Power Consumption | 12VDC Max 23W, PoE Max 25W | |
| Operating Conditions | Humidity 10 ~ 90% RH (non-condensing) [DC12V / PoE] -22°F ~ 122°F / -30°C ~ 50°C | |
| Certifications | FCC, CE, IP67, IK10 | |
| Weight | 4.6 lbs. / 2.1 kg | |
| Dimensions (D x H) | Ø8.3” x 3.6” / Ø210mm x 92mm | |
EDGE STORAGE | Storage | 4 x microSD / microSDHC / microSDXC (cardnot included) |
