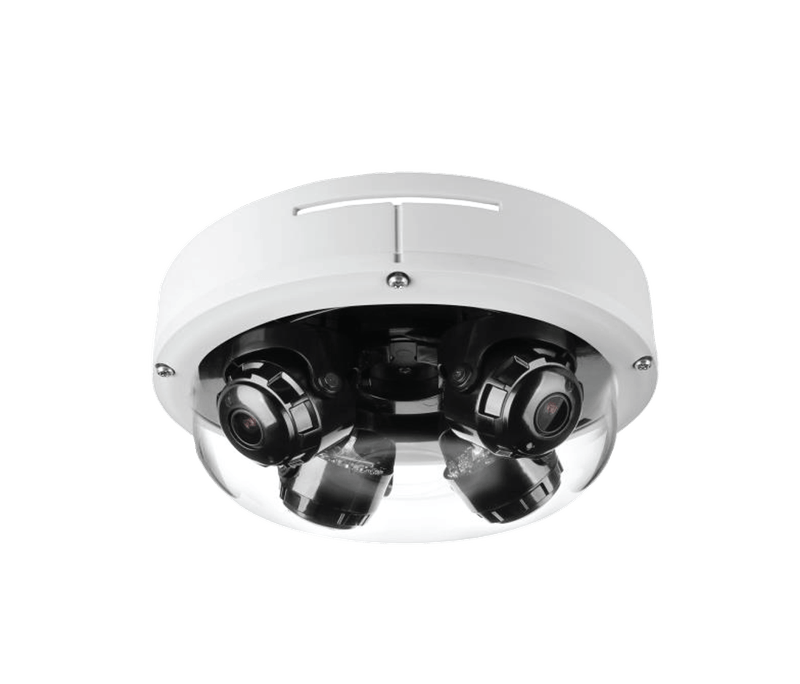

Ganz - ZN1A-4D6DTMZ67 - 20MP 360° Surround View IP Camera with 2.8–8mm MFZ & GXi Video Analytic Technology
Part number:
ZN1A-4D6DTMZ67
Price:
20MP (4x5MP) Multi Sensor, 2.8-8mm, MFZ, TWDR, 12VDC/ULTRA POE , Low Light, IP67, IK10.
Features:
- 4 x 5MP (20MP), 30fps at 5MP per sensor
- H.265, H.264, and MJPEG compression
- Flexible positioning for four camera heads
- Easy position setting by a magnet
- One IP Address for four video streams in CORTROL VMS
- 2.8–8mm MFZ
- GXi Video Analytic Technology provides intelligent video analysis with application areas, including intrusion detection, vehicle monitoring, abandoned-object detection, people counting, and loitering detection, as well as camera tampering and failure detection.
- SMART Bitrate Control & Region of Interest
- Power over Ethernet (IEEE 802.3af) / 12VDC
- ONVIF Compliant (Profile S)
- NDAA Compliant
- IP66
| Specifications | |
| MODEL ZN1A-4D6DTMZ67 | |
| Image Sensor | 4 x SONY STARVIS EXMOR 1/2.8” 5M CMOS |
| Effective Pixels | 2592(H) x 1944(V) per sensor |
| Scanning System | Progressive scanning |
| AGC Control | Auto |
| Iris Type | Auto Exposure |
| Minimum Illumination | Color: 0.13 Lux / B/W : 0.005 Lux |
| Lens | 2.8 – 8 mm, F1.6, Motorized Focus & Zoom lens |
| Angle of View | Horizontal: Approx. 93° (Wide) to 51° (Tele) |
| Shutter Time | Auto / Manual: 1/30 ~ 1/32,000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |
| Day & Night | True Day & Night (Removable IR-cut filter) |
| Wide Dynamic Range | True WDR, 120 dB or above |
| S/N Ratio | 50 dB |
| VIDEO | |
| Video Compression | H.265, H.264, MJPEG |
| Profile | H.264: MP / HP, H.265: MP |
| Multiple Profile Streaming Performance | 2592x1944/30 + 480p 30 bandwidth H.264, H265 + MJPEG |
| Max Resolution | 2592 x 1944 |
| Video Bit-Rate | 100Kbps ~ 10Mbps Multi-rate for Preview and Recording |
| Bit rate Control | Multi Streaming CBR/VBR (Controllable Frame-rate and Bandwidth) |
| Digital Noise Reduction | 3D-DNR |
| Privacy Mask | 16 programmable zones |
| Special Features | SMART Bit-rate Control, Region of Interest |
| Other Image Processing | Configurable Exposure, White Balance, Sharpness |
| Analog Output | 1 (installation only) CVBS 1.0V p-p (75 Ω), 4:3 aspect ratio |
| AUDIO | ||
| Audio Compression | G.711 | |
| Audio input / output | 1 / 1 (for the first camera) | |
| EVENT | ||
| Event Trigger | Motion Alarm, Temperature-critical, DI | |
| Pre-Post Recording | Pre: 1~5 sec / Post: 1~240 sec | |
| Event Notification | FTP, E-mail, Alarm-out, SD card | |
| NETWORK | ||
| Ethernet Standard | 10/100/1000Base-T (1Gbps) | |
| IP | IPv4 | |
| Protocol | TCP/IP, UDP, Auto IP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF | |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication | |
| Plug-in | ONVIF Profile S, CGI API | |
| GENERAL | ||
| Material | Aluminum Die-casting, White | |
| External I/O Terminals | 1 x Alarm In / 1 x Alarm Out (for the first camera) | |
| Language on Web Page | English | |
| Power Source | 12VDC, PoE+(IEEE 802.3at Class4) | |
| Power Consumption | 12VDC Max 23W, PoE Max 25W | |
| Operating Conditions | -4°F ~ 122°F (-20°C ~ 50°C) 12VDC / PoE Humidity 10 ~ 90% RH (non-condensing) | |
| Approvals | FCC, CE, IP66 | |
| Weight | 4.2 lbs. (1.9 kg) | |
| Dimensions (D X H) | Ø8.3” x 3.6” (Ø210mm x 92mm) | |
| EDGE STORAGE | ||
| Storage | 1x microSD / microSDHC / microSDXC (card not included) | |
