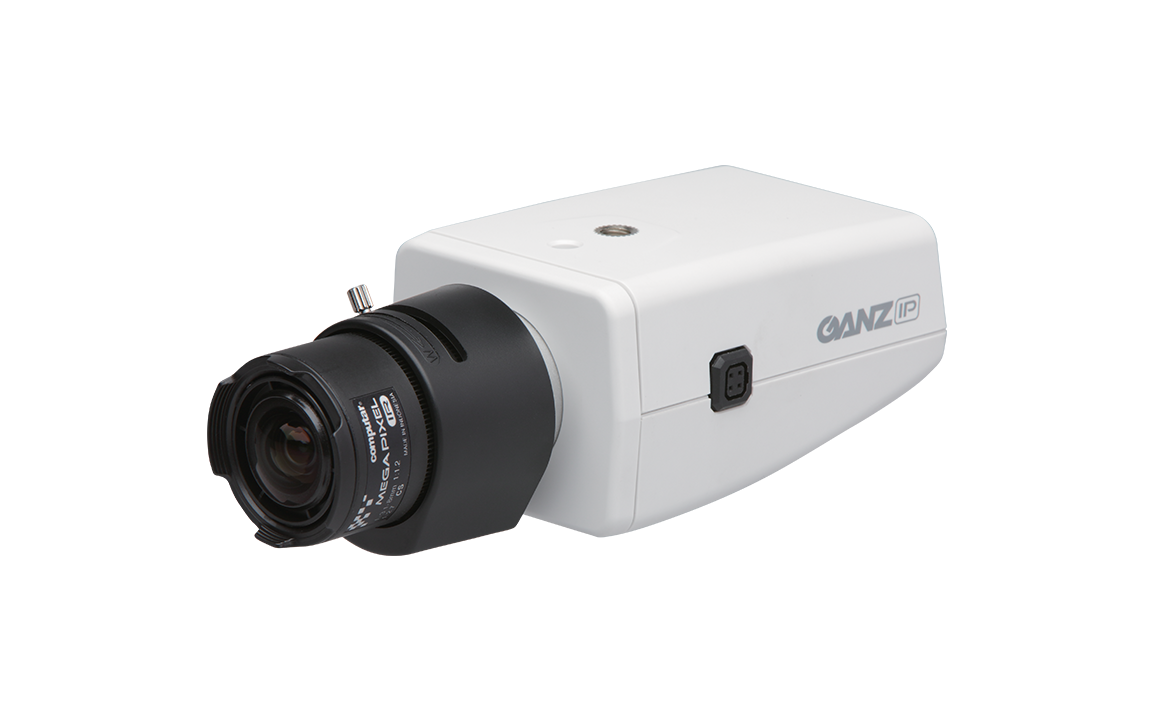

Ganz - ZN1A-C4 - 1080p IP Box Camera with GXi Video Analytics (indoor)
Part number:
ZN1A-C4
Price:
The PixelPro ZN1A-C4 1080p IP box camera features GXi Video Analytic Technology. GXi Technology maximizes the PixelPro's surveillance capabilities by bringing an added feature set of Imbedded Intelligence Technology, WDR performance, and full video recording to SD card to this already full-featured series.
Features:
- 1080p HD Resolution
- 1/2.9” Progressive Scan CMOS
- Embedded Intelligence Technology provides intelligent analysis of video with application areas including intrusion detection, vehicle monitoring, abandoned-object detection, people counting and loitering detection, as well as camera tampering and failure detection. All at an affordable price.
- Dual-Streaming IP Video - H.264 and MJPEG Compression
- Digital Day/Night and Digital WDR Performance
- C/CS Mount selectable
- Compatible with Computar® Megapixel Lenses
- Text Overlay, Video Motion Detection
- Video recording to SD/SDHC memory card
- ONVIF Compliant (Profile S)
- PoE (IEEE 802.3af)/12VDC
| MODEL | ZN-NH22XE | ZN1-C4 | |
| Camera Module | Image Sensor | SONY EXMOR 1/2.9" 1080p CMOS | |
| Effective Pixels | 1920 x 1080 | ||
| Scanning System | Progressive Scan | ||
| AGC control | Supported | ||
| Minimum Illumination (F1.2) | Color: 0.5 lux B/W : 0.001 lux (DSS ON) | Color : 0.5Lux B/W : 0.001 lux (DDS ON) | |
| Lens | CS | ||
| Day & Night | True Day & Night (Removable IR Cut Filter) | Digital Day & Night | |
| WDR | Digital WDR | ||
| DNR (Digital Noise Reduction) | Supported | ||
| DSS (Digital Slow Shutter) | 2X ~ 16X | ||
| White Balance | ATW1 / ATW2 / Push / Manual | ||
| BLC | On (possible to designate zone) / Off | ||
| Iris | Manual / DC Iris | ||
| Video | Compression Format | H.264 Baseline, Main, High profile(MPEG-4 Part 10/ AVC), MJPEG(Motion JPEG) | |
| Number of Streams | Dual Stream, Configurable streams in H.264, MJPEG | ||
| Resolutions | 1920 x 1080(Full HD), 1280 x 720(720p), 1120 x 630, 960 x 540(qHD), 800 x 450, 640 x 360(HVGAW), 480 x 270, 320 x 180 | ||
| Frame rate | H.264 : Max 30 fps in all resolution MJPEG : Max 30 fps in all resolution | ||
| Deinterlacing | - | ||
| Motion Detection | Supported | ||
| Text Overlay | Supported | ||
| Analog Output | NTSC / PAL (3 minutes, only for installation purpose) | - | |
| Audio | Input | 1 channel | - |
| Output | 1 channel | - | |
| Compression Format | G.711 μ-Law | - | |
| Function | DI | 1 channel | - |
| DO | 1 channel | - | |
| RS-485 | Supported | - | |
| Network | 10/100 Base-T | ||
| Protocol | QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1 | ||
| USB 2.0 | Supported | - | |
| SD Memory Card Slot | SD slot (up to 64GB) | microSD slot (SDHC supported) | |
| Electrical | Power Source | 12VDC, PoE | PoE |
| Power Over Ethernet | Supported (IEEE 802.3af) | ||
| Power Consumption (Approx) | 6.0W @ 12VDC | 3.84W @ PoE | |
| Environmental | Operating Temperature (Not include cold start) | [12VDC] 0˚C ~ 50˚C (32˚F ~ 122˚F); [PoE] 0˚C ~ 45˚C (32˚F ~ 113˚F) | 0˚C ~ 40˚C |
| Operating Humidity | Up to 85% RH (Non-condensing) | ||
| Mechanical | Dimensions | 70.5(W) x 63.9(H) x 137.9(D) mm 2.8” x 2.5” x 5.4” | 64(W) x 50(H) x 97.5(D) mm 2.52" x 1.97" x 3.84" |
| Weight (Approx) | 470g | 200g | |
| Certifications | CE / FCC | ||
| Onvif | Supported | ||
