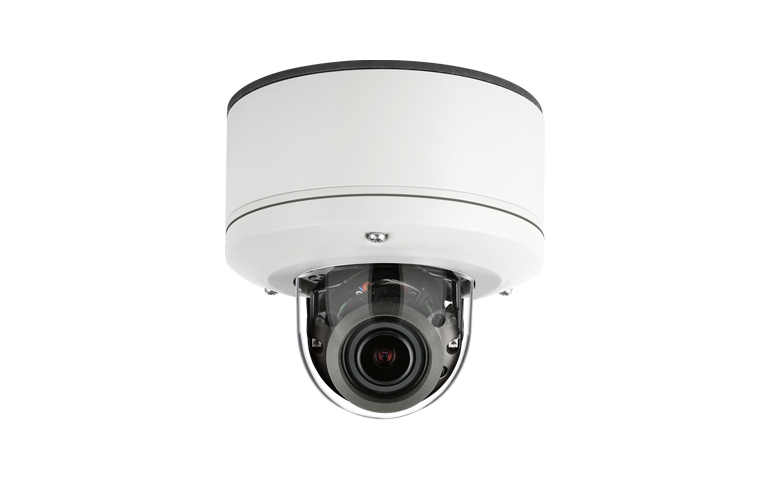

Ganz - ZN1A-D6DTMZ56U - 5MP, 2.7-13.5mm, MFZ, PoE/12VDC, T-WDR, IR, Low light, microSD Card Slot
Part number:
ZN1A-D6DTMZ56U
Price:
5MP, 2.7-13.5mm, MFZ, PoE/12VDC, T-WDR, IR, Low light, microSD card slot
Features:
- 5 Megapixel Resolution
- 1/2.8” Sony STARVIS EXMOR
- 2.7-13.5mm Varifocal Lens
- Triple-Streaming IP Video
- True Day/Night & WDR Performance
- Remote Zoom & Focus (auto-focus)
- SMART IR with 2 LEDs for up to 80' of illumination
- SMART Bitrate Control & Region of Interest
- Power over Ethernet (IEEE 802.3af) / 12VDC
- ONVIF Compliant (Profile S)
- NDAA Compliant
| Model | ZN1A-D4DTMZ56U ZN1A- D6DTMZ56U | ||
| Image Sensor | 1/2.8” SONY STARVIS Exmor 2.13MP CMOS | 1/2.8” SONY STARVIS Exmor 5MP CMOS | |
| Effective Pixels | 1920 x 1080 | 2592 x 1944 | |
| Scanning System | Progressive scanning | ||
| AGC Control | Auto | ||
| Iris Type | P-Iris | ||
| Camera | Minimum Illumination | Color: 0.02 Lux (DSS on) / B/W : 0 Lux (IR on) | |
| Lens | 2.8mm ~ 12mm, with MFZ | 2.7-13.5mm with MFZ | |
| Angle of View | Horizontal: Approx. 96° (Wide) to 35° (Tele) | ||
| Shutter Speed | Automatic / Manual: 1/30 ~ 1/32,000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10) | ||
| Day/Night Performance | True Day / Night (ICR) | ||
| Wide Dynamic Range | True WDR, 120dB or above | ||
| S/N Ratio | 50 dB | ||
| Video | Video Compression | H.265, H.264 Baseline, Main, High profile, MJPEG (Motion JPEG) | |
Multiple Profile Streaming Performance | 2592 x 1944 @30fps & 480 @30 fps with H.264, H265 & MJPEG | 1080p @30fps & D1(704x480 or 704x576) @30fps with H.264, H.265 & MJPEG | |
| Max Resolution | 1920 x 1080 | 2592 x 1944 | |
| Video Bit Rate | 100Kbps ~ 10Mbps Multi-rate for Preview and Recording | ||
| Bit Rate Control | Multi Streaming CBR/VBR (Controllable frame rate and Bandwidth) | ||
| Digital Noise Reduction | 3D-DNR | ||
| ROI (Region of Interest) | Supported | ||
| SMART Bitrate Control | Supported | ||
| Analog Output | 1 (Installation only) CVBS 1.0V p-p (75Ω), 4:3 aspect ratio | ||
| Other Image Processing | Configurable Exposure, White Balance, Sharpness | ||
| Privacy Mask | 16 programmable zones | ||
| Audio | Audio Streaming | Two Way | |
| Audio Compression | G.711 | ||
| Audio Input / Output | 1/1 | ||
| Event | Event Trigger | Motion Alarm, Temperature critical, DI | |
| Pre-Post Recording | Pre: 1~5 sec / Post: 1~240 sec | ||
| Event Notification | FTP, E-mail, Alarm-out, SD card | ||
| Network | Ethernet Standard | 10 / 100 Base-T | |
| IP | IPv4 | ||
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | ||
| Security | HTTPS (SSL), IP Filtering, 802.1x, Digest Authentication | ||
| Plug In | ONVIF Profile S, CGI API | ||
