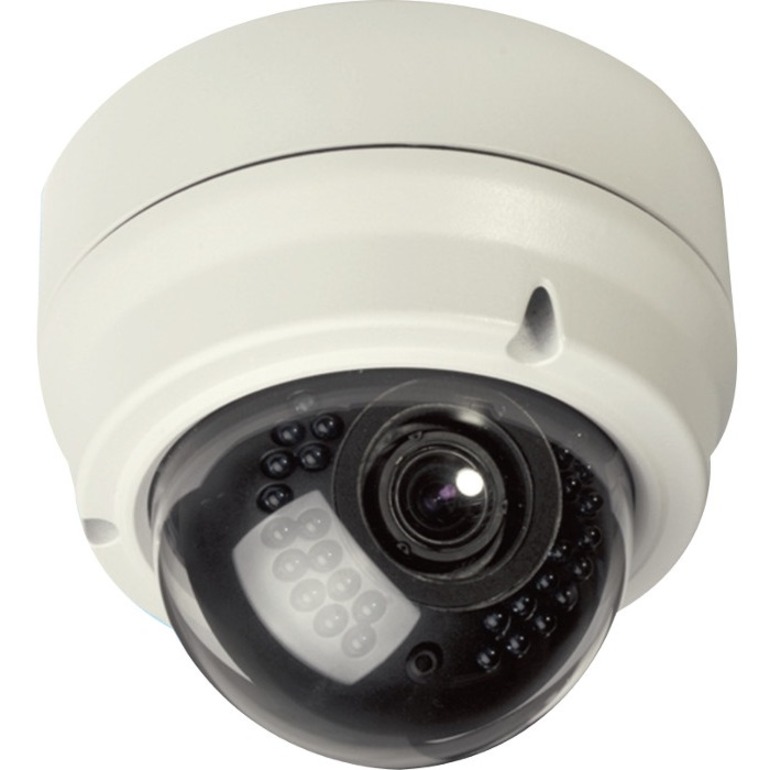

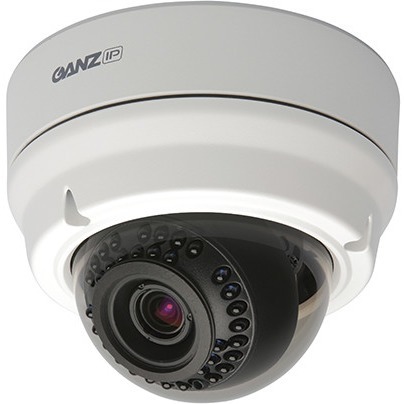

Ganz - ZN1A-DNT352XE-M - 1080p, 3-9mm, MFZ, POE/12VDC, WDR, microSD card slot, IP66
Part number:
ZN1A-DNT352XE-M
Price:
1080p, 3-9mm, MFZ, POE/12VDC, WDR, microSD card slot, IP66
Features:
- 1080p HD resolution
- Built-in 3-9mm Lens
- Imbedded Intelligence Technology
- WDR and True Day/Night Performance
- ProSet system allows zoom and focus directly from your PC
- Text overlay for easy identification of video
- Video motion detection
- Dual-Streaming IP Video - H.264 and MJPEG compression
- recording to SD cards (card not included)
- ONVIF Profile (S) compliant
- 12 VDC/PoE (IEEE 802.3af)
- IP66 for all weather use
- 36 Smart IR LEDs for over 82' of illumination
- Built-in heater, IP66 for all weather conditions
| Models | ZN-DN312XE-M | ZN-DNT352XE | |
| Camera | Description | Indoor Dome with ProSet Remote Zoom & Focus | Outdoor Dome, 3-9mm Varifocal lens |
| Image Sensor | 1/2.7” CMOS | ||
| Effective Pixels | 1920 x 1080 | ||
| Scanning System | Progressive scanning | ||
| AGC Control | Auto | ||
| Auto IRIS (DC) | Supported | ||
| Minimum Illumination | Color: 0.5 Lux B/W, 0.001 Lux (DSS ON) | ||
| Lens | 3-9mm, F1.2, Optical 3x | ||
| Angle of View | Horizontal: Approx. 93° (Wide) to 31.7° (Tele) / Vertical: Approx. 68.4° (Wide) to 23.8° (Tele) | ||
| Shutter Time | 1/5000s to 1/2s | ||
| Day/Night Performance | True Day & Night (Removable IR-cut filter) | ||
| WDR Performance | Digital WDR | ||
| Video | Video Compression | H.264 Baseline, Main, High profile, MJPEG (Motion JPEG) | |
| Resolutions | 1920 x 1080, 1280 x 720, 1120 x 630, 960 x 540, 800 x 450, 640 x 360, 480 x 270, 320 x 180 | ||
| Frame Rate | H.264/ MJPEG: Max 30fps in all resolution | ||
| Image Settings | Configurable brightness, contrast, saturation, sharpness | ||
| Orientation Control | Flip & Mirror | ||
| Noise Filter | Supported (0 ~ 3) | ||
| Smart Bitrate Control | Supported (It works in VBR mode) | ||
| Exposure Adjustment | +1.0, +0.6, +0.3, 0, -0.3, -0.6, -1.0 EV | ||
| White Balance | ATW1 / ATW2 / Push / Manual | ||
| Flicker Control | Normal, 50Hz, 60Hz | ||
| DSS (Sens-up) | 2X ~ 16X | ||
| BLC | On (possible to designate zone) / Off | ||
| Burnt-in Text | Time stamp and text caption overlay | ||
| Privacy Mask | 4 configurable regions | ||
| Analogue Output | NTSC / PAL (3 minutes, only for installation purpose) | ||
| Audio | Audio Streaming | Two-way | |
| Audio Compression | G.711-uLaw | ||
| Audio input / output | Supported | ||
| Network | Ethernet Standard | 10 / 100 Base-T | |
| Protocol | QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1 | ||
| Security | Multi-level access with password protection | ||
| Integration | Application Programming Interface | Software Development Kit (SDK) available. ONVIF Compliant (Profile S) | |
| Event Sources | Video Motion Detection; Tamper Detection; Video Content Analytics (Imbedded Intelligence); Network Setting Change; Sensor (DI) | ||
| Event Actions | File upload: E-mail, FTP / Notification: E-mail, FTP, HTTP, TCP / Trigger-Alarm (DO) | ||
| Event Metadata Streaming (RTSP/RTP) | Video Motion Detection (MD); Video Content Analytics (Imbedded Intelligence) | ||
| Imbedded Intelligence (standard) | Analytics Engine | Advanced tracking algorithm with rich library of detection behaviors | |
| Detection | 40 zones (Multi-segment Polygons and Lines) in total | ||
| Zones and Rules | 60 rules in total | ||
| Tamper Detection | Supported | ||
| Camera Shake Cancellation | Supported | ||
| Imbedded Intelligence (optional) | Detection Behavior | Enter, Exit, Appear, Disappear, Stop, Direction, Dwell filter; Tailgating; | |
| 3D Behavior | Perspective Corrected Size and Speed Filters | ||
| Counting | 20 counters in total | ||
| Counting Line | High accuracy people and vehicle counting | ||
| Meta Data | Plain XML Format | ||
| Physical | Material | Plastic (ABS); Ivory | Aluminum, Anti-vandal bubble (PC); Ivory |
| Edge Storage | 1x MicroSD/MicroSDHC memory card slot (card not included) | ||
| External I/O Terminals | 1x Alarm In, 1x Alarm Out | ||
| Users | Live viewing for up to 10 clients | ||
| Power / Consumption | 12VDC, PoE / 4.92W @ DC 12V | DC 12V, PoE / 14.52W @ DC 12V | |
| Operating Conditions | Humidity up to 85% RH (non-condensing) | ||
| Operating Temp. | 32°F ~ 122°F /0°C ~ 50°C | -40°C ~ 50°C (-40°F ~ 122°F); [PoE] 0°C ~ 50°C (32°F ~ 122°F); Built-in heater | |
| Dimensions | 5.7" ø x 4.8" / 144mm ø x 121mm H | TBD | |
| Weight | 1.1 lbs / 520g | 2.6 lbs / 1.2kg | |
| Approvals | ONVIF Compliant (Profile S), FCC, CE, KC | ONVIF Compliant (Profile S), FCC, CE, KC, IP66, IK10 | |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
