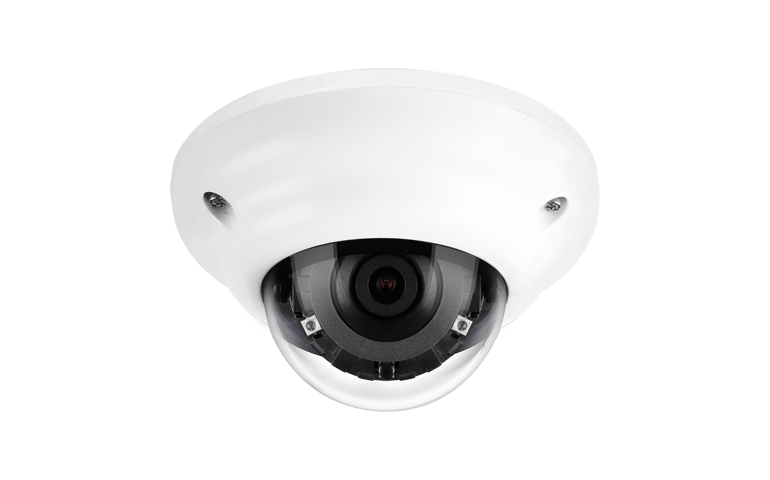

Ganz - ZN1A-M4DTFN3 - 1080p IP Low Light Mini IR Dome with 2.8mm Lens & GXi Video Analytic Technology
Part number:
ZN1A-M4DTFN3
Price:
1080p IP Low Light Mini IR Dome with 2.8mm Lens & GXi Video Analytic Technology
Features:
- 1080p HD Resolution
- 1/2.8” Sony STARVIS EXMOR Sensor
- 2.8mm Fixed Lens
- Video Analytic Technology for intelligent analysis of video with application areas including intrusion detection, vehicle monitoring, abandoned-object detection, people counting and loitering detection, as well as camera tampering and failure detection. All at an affordable price.
- Triple-Streaming IP Video
- True Day/Night & WDR Performance
- SMART IR with 2 LEDs for up to 59' of illumination
- SMART Bitrate Control & Region of Interest
- Power over Ethernet (IEEE 802.3af) / 12VDC
- ONVIF Compliant (Profile S)
- IP67
- NDAA Compliant
| Model | ZN1A-M4DTFN3 | ZN1A-M6DTFN3 | |
| Camera | Image Sensor | 1/2.8” SONY STARVIS Exmor 2.13MP CMOS | 1/2.8” SONY STARVIS Exmor 5MP CMOS |
| Effective Pixels | 1920 x 1080 | 2592 x 1944 | |
| Scanning System | Progressive scanning | ||
| AGC Control | Auto | ||
| Iris Type | Auto-Iris | ||
| Minimum Illumination | Color: 0.03 Lux (DSS on) / B/W : 0 Lux (IR on) | ||
| Lens | 2.8mm, F2.0 Fixed Lens | ||
| Angle of View | Horizontal: Approx. 115° / Vertical Approx. 64° | ||
| Shutter Speed | Automatic / Manual: 1/30 ~ 1/32,000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10) | ||
| Day/Night Performance | True Day / Night (ICR) | ||
| Wide Dynamic Range | True WDR, 120dB | ||
| S/N Ratio | 50 dB | ||
| Video | Video Compression | H.265, H.264 Baseline, Main, High profile, MJPEG (Motion JPEG) | |
| Multiple Profile Streaming Performance | 2592 x 1944 @30fps & 480 @30 fps with H.264, H265 & MJPEG | 1080p @30fps & D1(704x480 or 704x576) @30fps with H.264, H.265 & MJPEG | |
| Max Resolution | 1920 x 1080 | 2592 x 1944 | |
| Video Bit Rate | 100Kbps ~ 10Mbps Multi-rate for Preview and Recording | ||
| Bit Rate Control | Multi Streaming CBR/VBR @ H.264 (Controllable frame rate and Bandwidth) | ||
| Digital Noise Reduction | 3D-DNR | ||
| ROI (Region of Interest) | Supported | ||
| SMART Bitrate Control | Supported | ||
| Other Image Processing | Configurable Exposure, White Balance, Sharpness | ||
| Privacy Mask | 16 programmable zones | ||
| Audio | Audio Streaming | Two Way | |
| Audio Compression | G.711 | ||
| Audio Input / Output | 1 (Built-In Mic) / 0 | ||
| Event | Event Trigger | Motion, Temperature critical | |
| Pre-Post Recording | Pre: 1~5 sec / Post: 1~240 sec | ||
| Event Notification | FTP, E-mail, SD card | ||
| Network | Ethernet Standard | 10 / 100 Base-T | |
| IP | IPv4 | ||
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | ||
| Security | HTTPS (SSL), IP Filtering, 802.1x, Digest Authentication | ||
| Plug In | ONVIF Profile S, CGI API | ||
| Embedded Intelligence (standard) | Analytics Engine | VCA Technology’s advanced tracking algorithm with rich library of detection behaviors | |
| Detection Zones | 40 zones (Multi-segment Polygons and Lines) in total | ||
| Rules | 60 rules in total | ||
| Tamper Detection | Supported | ||
| Embedded Intelligence (optional) | Detection Behavior | Enter, Exit, Appear, Disappear, Stop, Direction, Dwell filter; Tailgating; Color Filter | |
| Logic Rules | Extends standard rules to allow various combinations of the inputs | ||
| 3D Behavior | Perspective Corrected Size and Speed Filters | ||
| Object Classification | Configured Max./Min. object sizes and Max./Min. speeds | ||
| People Tracking | Tracks individuals separately among overlapped multiple people | ||
| Counting | 20 counters in total | ||
| Counting Line | High accuracy people and vehicle counting | ||
| Counter Report | Generates counter reports based on the counter database | ||
| Heatmap Report | Shows relative crowd density of the 24 hour period (criterion: midnight) | ||
| Meta Data | JSON format, Plain XML Format | ||
| Edge Storage | Storage | 1x MicroSD memory card slot / microSDHC / microSDXC (card not included) | |
| Physical | Material | Aluminum Die-Casting; White | |
| Language | English | ||
| IR LEDs | 2 Smart IR LEDs (59’ Range) | ||
| Power Source | 12VDC, PoE (IEEE 802.3af) | ||
| Power Consumption | 12VDC Max. 3.7W / PoE Max 5.5W | ||
| Operating Conditions | [12VDC/PoE] -4°F ~ 122°F (-20°C ~ 50°C) / Humidity 10% to 90% RH (non-condensing) | ||
| Dimensions | 4.1” (Ø) x 2.4” / 105mm (Ø) x 60.7mm | ||
| Weight | 0.9 lbs / (400g) | ||
| Certifications | FCC, CE, IP67, Onvif S | ||
