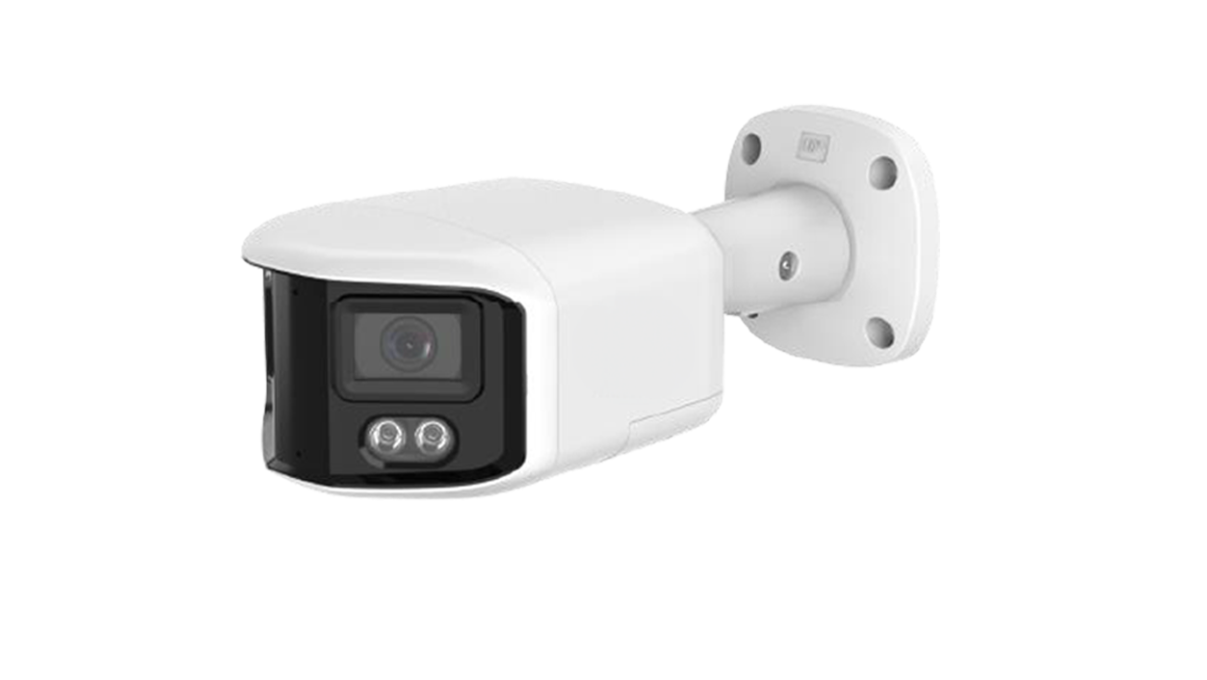

Ganz - ZN8-2D8WTFN3 - 8MP 180° Panoramic Bullet IP Camera with Analytics

Product Overview

The Ganz ZN8-2D8WTFN3 is an 8MP 180° panoramic bullet network camera with dual 5MP progressive-scan CMOS sensors and dual 2.8mm fixed lenses. It produces a seamless 180° wide-angle image at up to 4608 × 1728 resolution and supports human and vehicle detection, intelligent scene analytics, people counting, heat maps, and illegal-parking detection. Built-in IR and warm-light illumination, two-way audio, local SD recording, PoE, and IP66 protection support versatile outdoor surveillance.

Key Configuration

Model: ZN8-2D8WTFN3 | Resolution: Up to 8MP, 4608 × 1728 at 15 fps | Lens: Dual fixed 2.8mm, F1.6 | Connectivity: 10/100Mbps RJ-45, PoE IEEE 802.3af, ONVIF, SDK | Protection: IP66

Key Features

• · Dual 1/2.8-inch CMOS sensors provide 5MP imaging per sensor
• · 180° horizontal field of view provides panoramic scene coverage
• · Outputs up to 4608 × 1728 resolution at 15 fps in splicing mode
• · Supports human and vehicle detection and target capture
• · Intelligent analytics include intrusion, line crossing, loitering, wrong-way, illegal parking, and smart motion detection
• · Supports people counting and heat-map analysis
• · IR illumination reaches 20m and warm-light illumination reaches 30m
• · Built-in microphone and speaker support two-way audio communication
• · Built-in microSD slot supports cards up to 256GB
• · Supports True WDR, 2D/3D noise reduction, ROI, defog, HLC, and BLC

Technical Context

The dual-lens design combines two camera views into a seamless 180° panoramic stream, while multi-channel mode can provide separate outputs for different monitoring layouts. Human- and vehicle-based analytics can trigger alarms for intrusion, line crossing, wrong-way movement, illegal parking, and other defined events. Dual streams, ROI, and H.265/H.264-compatible network workflows help balance panoramic coverage, bandwidth, and recording requirements.

Installation Notes

The metal camera measures 227.7 × 110 × 80 mm and weighs 0.82 kg. It supports pan, tilt, and rotation adjustment, operates from 12V DC or PoE IEEE 802.3af, and consumes up to 11.5W. The unit operates from -30°C to 60°C at less than 90% relative humidity and provides IP66 protection. It includes one alarm input and output, one audio input and output, and supports ceiling, wall, or other suitable mounting arrangements.
