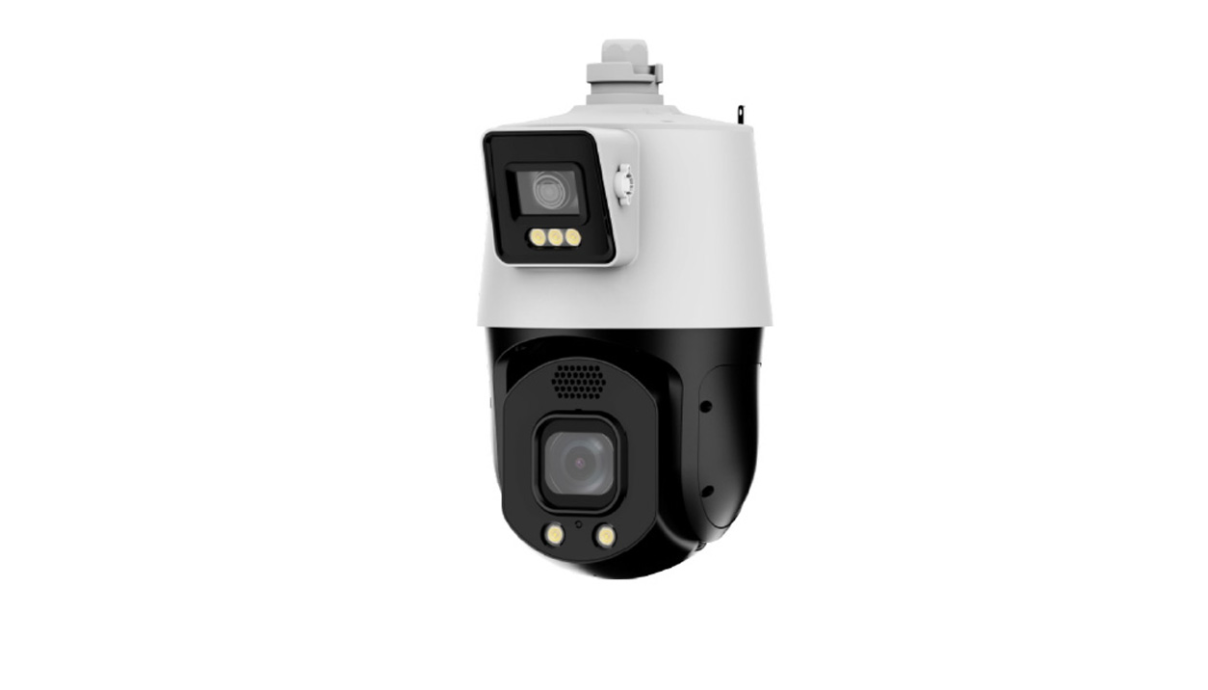

Ganz - ZN8-2P5X30DL-H - 5" 4MP + 5MP Dual Lens IP PTZ Camera
Product Overview
The Ganz ZN8-2P5X30DL-H is a dual-lens 4MP + 5MP network PTZ camera combining a panoramic sensor with a motorized detail camera. The panoramic channel provides a 180° view, while the detail channel uses 30x optical zoom and 16x digital zoom for long-range observation. AI-based human, vehicle, face, smoke, and flame detection, Smart IR up to 200m, auto tracking, two-way audio, local recording, and IP66 protection support advanced outdoor surveillance.
Key Configuration
Model: ZN8-2P5X30DL-H | Resolution: Panoramic 4MP and detail 5MP | Lens/Zoom: Panoramic 2.8mm F1.0; detail 5.3-159mm F1.6-F4.3, 30x optical and 16x digital zoom | Connectivity: 10/100Mbps RJ-45, PoE+ IEEE 802.3at, ONVIF, SDK | Storage/Protection: microSD up to 1TB, IP66
Key Features
- · Panoramic 1/1.8-inch 4MP and detail 1/2.8-inch 5MP STARVIS CMOS sensors
- · Panoramic channel provides a 180° horizontal field of view
- · Detail camera supports up to 2592 × 1944 resolution at 25/30 fps
- · 30x optical zoom and 16x digital zoom support long-range detail monitoring
- · Supports face, human, vehicle, smoke, and flame detection
- · Intelligent analytics include intrusion, line crossing, loitering, wrong-way, illegal parking, and people counting
- · Auto tracking and deep-learning perimeter protection support active surveillance
- · IR illumination reaches up to 200m and warm light reaches up to 50m on the detail channel
- · Supports True WDR, 3D noise reduction, ICR, defog, DIS, and ROI
- · Built-in microphone and speaker support two-way audio communication
Technical Context
The dual-lens architecture combines continuous panoramic awareness with a separately controlled PTZ detail view. The detail camera provides programmable pan, tilt, presets, patrols, scans, and smart tracking, while the panoramic channel supports full-frame, four-corner, and mosaic display modes. Triple streaming, ROI, and H.265/H.264-compatible workflows help balance coverage, detail, bandwidth, and recording requirements.
Installation Notes
The metal camera measures 176.0 × 211.3 × 303.9 mm and weighs approximately 4.5 kg. It supports 24VAC, 36VDC, or PoE+ IEEE 802.3at power, with 36VDC standard-equipped, and includes two alarm inputs, two alarm outputs, audio input/output, and a reset button. The camera operates from -40°C to 60°C at less than 90% relative humidity and provides IP66 protection. Wall, ceiling, corner, pole, and junction-box mounting accessories are available separately.
| Technical Specifications | |
| Product Model | ZN8-2P5X30DL-H |
| Product Type | Dual-lens IP PTZ camera with panoramic and detail views |
| Camera Configuration | Panoramic camera: 1/1.8-inch 4MP STARVIS CMOS Detail camera: 1/2.8-inch 5MP STARVIS CMOS |
| Analytics | Face, human, vehicle, smoke, and flame detection and capture |
| Camera and Lens | |
| Detail Camera Resolution | 2592 × 1944 |
| Panoramic Camera Resolution | 2592 × 1520 |
| Detail Lens | Motorized 5.3mm to 159mm lens |
| Panoramic Lens | Fixed 2.8mm lens |
| Detail Aperture | F1.6 to F4.3 |
| Panoramic Aperture | F1.0 |
| Detail Field of View | Horizontal: 56.8° to 2.6° Vertical: 42.7° to 2.0° |
| Panoramic Field of View | Horizontal: 112° Vertical: 60° |
| Optical Zoom | 30× detail-camera optical zoom |
| Focus Control | Automatic, manual, or semi-automatic for detail camera |
| Minimum Illumination | Detail: 0.005 lux at F1.6, AGC on; 0 lux with light on Panoramic: 0.0001 lux at F1.0, AGC on; 0 lux with light on |
| Electronic Shutter | Automatic/manual, 1/5 to 1/20,000s |
| Day/Night | Fixed filter for detail camera Automatic ICR for panoramic camera |
| Wide Dynamic Range | True WDR |
| PTZ | |
| Pan Range | 0° to 360°, endless |
| Tilt Range | -15° to +90°, auto-flip |
| Pan Speed | 0.1° to 180°/s Preset speed: 180°/s |
| Tilt Speed | 0.1° to 90°/s Preset speed: 90°/s |
| Presets | 400 |
| Patrol and Scan | 6 tracks, 12 scans, and 12 patrols Up to 32 presets per patrol |
| Auto Tracking | Supported |
| Power-Off Memory | Supported |
| 3D Positioning | Supported |
| Idle Motion | Preset positions, patrols, scans, and tracks can be activated after 1 to 240 minutes without a command |
| Illumination | |
| Illuminator Type | IR and warm light |
| IR Illumination Distance | Up to 200m (656.17ft) |
| Warm-Light Illumination Distance | Detail camera: up to 30m (98.4ft) Panoramic camera: up to 50m (196.85ft) |
| IR Wavelength | 850nm |
| Illumination Control | Automatic/manual |
| Video | |
| Streaming Capability | 3 streams |
| Stream 1 | Detail: 2592 × 1944, 2592 × 1520, 1920 × 1080, or 1280 × 720 at 25/30 fps Panoramic: 2592 × 1520, 2304 × 1296, 1920 × 1080, or 1280 × 720 at 25/30 fps |
| Stream 2 | D1, VGA, or CIF at 25/30 fps |
| Stream 3 | VGA, CIF, or QVGA at 25/30 fps |
| Bit Rate Control | CBR and VBR |
| Bit Rate | Stream 1: 200Kbps to 12Mbps Stream 2: 100Kbps to 6Mbps Stream 3: 100Kbps to 3Mbps |
| Smart Encoder | Supported |
| Region of Interest | Supported |
| Image Adjustment | Brightness, sharpness, contrast, and saturation |
| Scene Settings | Indoor, outdoor, and mirror |
| Exposure Mode | Automatic, manual, or shutter priority |
| White Balance | Automatic, tungsten, fluorescent, daylight, shadow, or manual |
| Noise Reduction | 2D/3D digital noise reduction |
| Image Enhancement | HLC, BLC, defog, WDR, and anti-shake |
| Privacy Masking | Up to 40 zones with configurable mask color |
| Intelligent Video Analytics | |
| Object Detection | Face, human, and vehicle detection and capture |
| Detection Modes | Full-frame, four-corner frame, and mosaic |
| Intelligent Analysis | Intrusion, single line crossing, double line crossing, loitering, wrong-way detection, illegal parking, smart motion detection, enter area, leave area, and people counting |
| Smoke and Flame Detection | Supported |
| Smart Tracking | Supported |
| Audio and Alarm | |
| Audio Interface | 1-channel input and 1-channel output |
| Audio Compression | G.711 A-law, G.711 μ-law, and RAW_PCM |
| Audio Bit Rate | 64Kbps for G.711 128Kbps for RAW_PCM |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Alarm Interface | 2-channel input and 2-channel output |
| Alarm Triggers | IVS, motion detection, alarm input, network alarm, disk alarm, day/night switch alarm, and abnormal sound detection |
| Alarm Actions | Alarm recording, alarm output, FTP upload, SMTP upload, and audible alarm output |
| Network | |
| Network Interface | 1 × 10/100 Base-T Ethernet RJ-45 connector |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, 802.1X, SNMP, and multicast |
| Interoperability | ONVIF Profiles S/T/G/M, SDK, and CGI |
| Concurrent Streams | Up to 10 channels |
| User Access | 32 or more users Administrator, Operator, and Media User levels |
| Security | IP address filtering, HTTPS, illegal login lock, and IEEE 802.1X |
| Web Viewer | Internet Explorer 11 or earlier, Chrome, Firefox, and Microsoft Edge |
| Storage and Interfaces | |
| SD Card | Built-in slot, up to 1TB |
| RS-485 | 1 |
| CVBS Interface | 1 × BNC |
| Reset Button | Supported |
| Electrical | |
| Power Supply | 24VAC, 36VDC, or PoE+, IEEE 802.3at 36VDC power supply included as standard |
| Power Consumption | Less than W Value not specified in the source datasheet |
| Mechanical | |
| Housing Material | Metal |
| Ingress Protection | IP66 |
| Product Dimensions | 176.0 × 211.3 × 303.9 mm 6.93 × 8.32 × 11.96 in |
| Net Weight | Approximately 4.5 kg |
| Installation | Wall mount |
| Environmental Conditions | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | Less than 90% RH |
| Certifications and Compliance | |
| Certifications | CE-EMC and FCC |
| Accessories | |
| Included Accessory | Wall bracket |
| Optional Accessories | Ceiling bracket, corner mount, pole mount, and junction box |
