Ganz - ZN8-4D6DTMZ71 - 4 × 5MP 4-Directional Multi-Sensor Network Camera with MFZ and Analytics

Product Overview

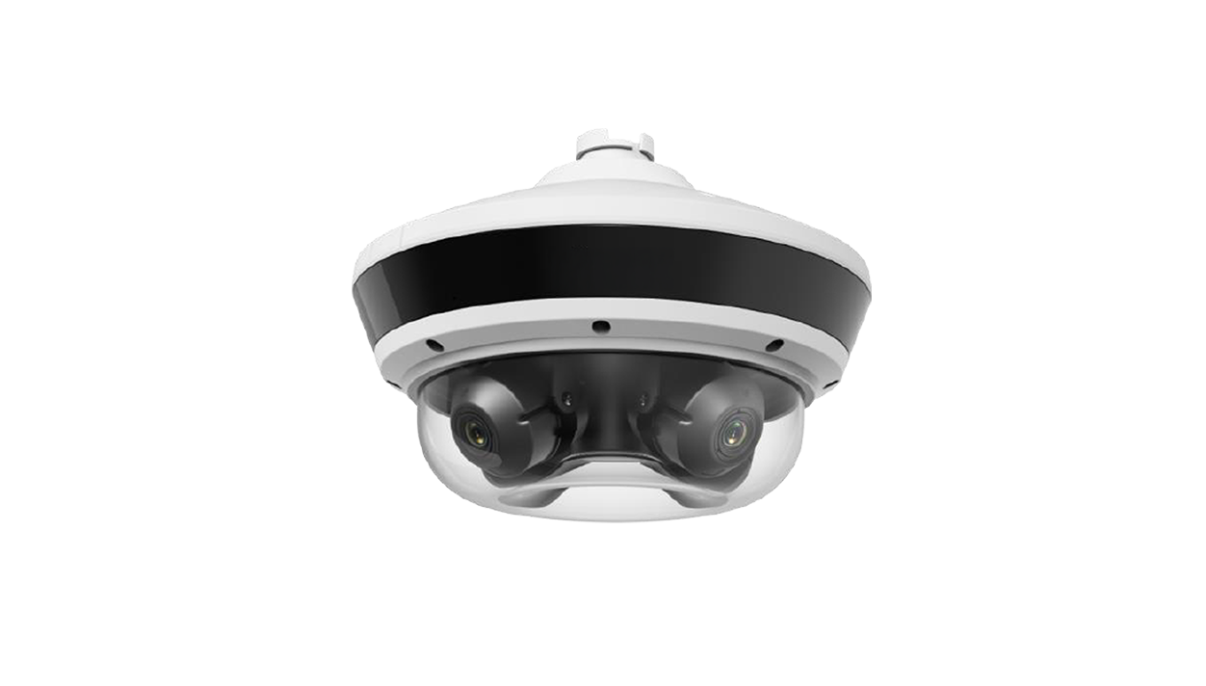

The Ganz ZN8-4D6DTMZ71 is a four-directional multi-sensor network camera with four 5MP 1/2.8-inch STARVIS CMOS sensors and four motorized 2.7-13.5mm lenses. Each lens provides up to 5MP resolution at 25/30 fps, enabling flexible multi-area surveillance from a single camera housing. Intelligent human, vehicle, and face analytics, Smart IR up to 40m, built-in audio, local SD recording, PoE+, IP67, and IK10 protection support demanding outdoor installations.

Key Configuration

Model: ZN8-4D6DTMZ71 | Resolution/Capacity: 4 × 5MP, up to 2592 × 1944 per lens | Lens: 4 × motorized 2.7-13.5mm, F1.6 | Connectivity: 100/1000Mbps RJ-45, PoE+ IEEE 802.3at, ONVIF Profile S/T/G/M | Protection: IP67, IK10

Key Features

• · Four 1/2.8-inch STARVIS CMOS sensors provide 5MP imaging per sensor
• · Four adjustable motorized lenses provide independent multi-directional coverage
• · Each lens supports 2592 × 1944 resolution at 25/30 fps
• · Supports human, vehicle, and face detection and capture
• · Intelligent analytics include intrusion, line crossing, loitering, wrong-way, illegal parking, enter-area, leave-area, and people counting
• · Smart IR illumination reaches up to 40m
• · Supports True WDR, 2D/3D noise reduction, ROI, HLC, BLC, and defog
• · Built-in microphone and one-channel audio input/output support audio monitoring
• · Built-in microSD slot supports cards up to 1TB
• · Provides four alarm inputs, two alarm outputs, RS-485, and CVBS output

Technical Context

The four-sensor architecture allows the camera to monitor multiple directions while maintaining independent lens adjustment and focus. Three video streams per sensor support different quality and bandwidth requirements, while target-based analytics can trigger alarms for human or vehicle events. PoE+ simplifies deployment by carrying power and network data over one Ethernet connection.

Installation Notes

The aluminum-alloy camera measures Ø282 × 206.3 mm and weighs 4 kg without the bracket. It supports pan adjustment from -180° to 180°, tilt from 0° to 130°, and rotation from 0° to 355°. The unit operates from 12V DC or PoE+ IEEE 802.3at, consumes up to 20W, and operates from -40°C to 60°C at less than 90% relative humidity. A wall bracket is included; junction-box and ceiling brackets are optional.
