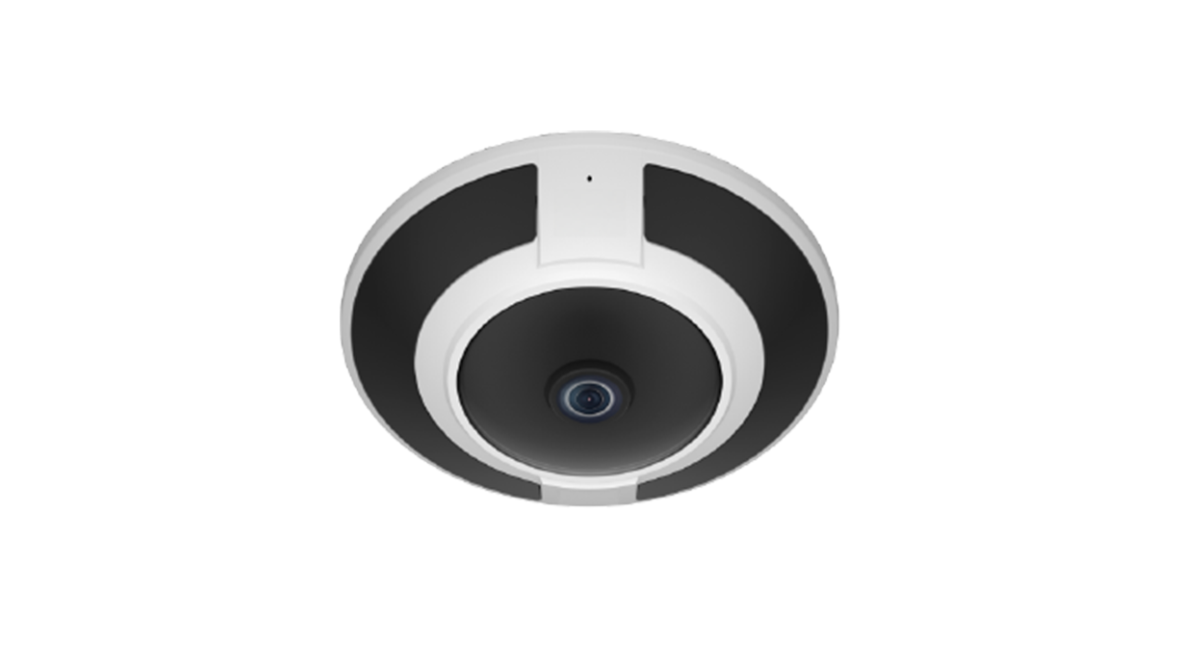

Ganz - ZN8-80F12F18NL - 12MP Fisheye Network Camera with Analytics
Product Overview
The Ganz ZN8-80F12F18NL is a 12MP fisheye network camera with a 1/1.7-inch progressive-scan CMOS sensor and fixed 1.8mm lens providing a 180° × 180° field of view. It supports 4000 × 3000 resolution at up to 25 fps, multi-mode dewarping, human and vehicle detection, and intelligent analytics including intrusion, line crossing, loitering, wrong-way detection, people counting, and heat mapping. The camera includes Smart IR up to 15m, built-in audio, microSD recording up to 1TB, PoE, and IP66 protection.
Key Configuration
Model: ZN8-80F12F18NL | Resolution/Capacity: 12MP, 4000 × 3000 at 25 fps | Lens: Fixed 1.8mm, F2.4, 180° × 180° view | Connectivity: 10/100Mbps RJ-45, PoE IEEE 802.3af, ONVIF, SDK | Storage/Protection: microSD up to 1TB, IP66
Key Features
- · 1/1.7-inch CMOS sensor delivers 12MP resolution at up to 25 fps
- · Fixed 1.8mm F2.4 lens provides a 180° × 180° fisheye view
- · Supports multiple dewarping and front-end image-correction modes
- · Provides human and vehicle detection with target-based alarm triggering
- · Intelligent analytics include intrusion, single and double line crossing, loitering, and wrong-way detection
- · Supports people counting, heat maps, smart motion detection, and ROI
- · Smart IR illumination reaches up to 15m
- · Built-in microphone and one-channel audio input/output
- · Built-in microSD slot supports cards up to 1TB
- · Supports PoE IEEE 802.3af and IP66 weather protection
Technical Context
The fisheye lens provides panoramic coverage, while client-side and on-board dewarping can present the image as a fisheye view, panorama, cylinder, or multiple virtual PTZ views. Intelligent analytics are available in single-channel mode and can trigger events based on specified human or vehicle targets. Dual streams and ROI support help balance image detail, bandwidth, and recording requirements.
Installation Notes
The metal camera measures Ø130 × 38.3 mm and weighs 0.5 kg. It supports ceiling, wall, or table mounting and operates from 12V DC or PoE IEEE 802.3af, with maximum power consumption of 9W. The operating temperature range is -30°C to 60°C at less than 90% relative humidity. Optional pendant and wall-mount accessories are available.
| Technical Specifications | |
| Product Model | ZN8-80F12F18NL |
| Product Type | 12MP fisheye network camera |
| Camera | |
| Image Sensor | 1/1.7-inch progressive-scan STARVIS CMOS |
| Maximum Resolution | 4000 × 3000 |
| Lens Type | Fixed lens |
| Focal Length | 1.8 mm |
| Iris | Fixed iris |
| Maximum Aperture | F2.4 |
| Angle of View | 180° × 180° |
| Minimum Illumination | Color: 0.01 lux at F2.4, AGC on Black and white: 0 lux with IR |
| Electronic Shutter | Auto/manual, 1/5 to 1/20,000s |
| Day/Night | Automatic ICR |
| IR Illumination | Up to 15 m (49.2 ft) Automatic/manual IR control |
| DORI Distance | Detect: 34.5 m (113.2 ft) Observe: 13.8 m (45.3 ft) Recognize: 6.9 m (22.6 ft) Identify: 3.45 m (11.3 ft) |
| Video | |
| Streaming Capability | 2 streams |
| Main Stream | Fisheye, 180° panorama, 360° panorama, 4PTZ, fisheye + 3PTZ, and multi-channel modes Up to 4000 × 3000 at 25 fps |
| Sub Stream | Fisheye, 180° panorama, 360° panorama, 4PTZ, fisheye + 3PTZ, and multi-channel modes Up to 25 fps |
| Bit Rate Control | CBR and VBR |
| Bit Rate | Single-channel mode: Stream 1: 500Kbps to 16Mbps; Stream 2: 100Kbps to 6Mbps Multi-channel mode: Stream 1: 500Kbps to 12Mbps; Stream 2: 100Kbps to 6Mbps |
| Smart Encoder | Supported |
| Region of Interest | Supported in single-channel and fisheye modes |
| Image Adjustment | Brightness, sharpness, contrast, and saturation |
| White Balance | Automatic/manual |
| Noise Reduction | 2D/3D digital noise reduction |
| Image Enhancement | HLC, BLC, and defog |
| Wide Dynamic Range | DWDR |
| Signal-to-Noise Ratio | 55dB |
| Motion Detection | Supported |
| Privacy Masking | Supported in single-channel and fisheye modes |
| Audio | |
| Audio Compression | G.711A, G.711U, and RAW_PCM |
| Audio Bit Rate | 64Kbps for G.711 128Kbps for RAW_PCM |
| Audio Interface | 1-channel input and 1-channel output |
| Built-in Microphone | Supported |
| Analytics and Dewarping | |
| Object Detection | Human and vehicle detection |
| Intelligent Analysis | Intrusion, single line crossing, double line crossing, loitering, wrong-way detection, smart motion detection, people counting, and heat map |
| Fisheye Display Modes | Client-side and on-board dewarping |
| Client-side Dewarping | Fisheye, fisheye + 3PTZ, fisheye + 8PTZ, 4PTZ, cylinder, 180° panorama, 360° panorama, 360° panorama + PTZ, 360° panorama + 3PTZ, 360° panorama + 6PTZ, 360° panorama + 8PTZ, and half sphere |
| On-board Dewarping | Fisheye, 360° panorama, 4PTZ, 180° panorama, and fisheye + 3PTZ |
| Network | |
| Network Interface | 1 × 10/100 Base-T Ethernet RJ-45 connector |
| Protocols | IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, UDP/IP, RTSP/RTCP/RTP, IGMP/multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, ICMP, ARP, and TLS |
| Interoperability | ONVIF and SDK |
| Streaming Method | Multicast |
| Maximum User Access | 10 users |
| Web Viewer | Internet Explorer 11 or earlier, Chrome, and Firefox |
| Web Interface Languages | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, and Hungarian Default: English |
| Storage and Alarm Interfaces | |
| SD Card | Built-in slot, up to 1TB |
| Alarm Interface | 1-channel input and 1-channel output |
| Reset Button | Supported |
| Electrical | |
| Power Supply | 12VDC, -15% to +20% PoE, IEEE 802.3af |
| Power Consumption | 9W maximum |
| Mechanical | |
| Housing Material | Metal |
| Mounting Options | Ceiling mount, wall mount, or table mount |
| Product Dimensions | 130 mm diameter × 38.3 mm 5.12 × 1.51 in |
| Net Weight | 0.5 kg (1.10 lb) |
| Environmental Conditions | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66 |
| Certifications and Compliance | |
| Certifications | CE and FCC |
