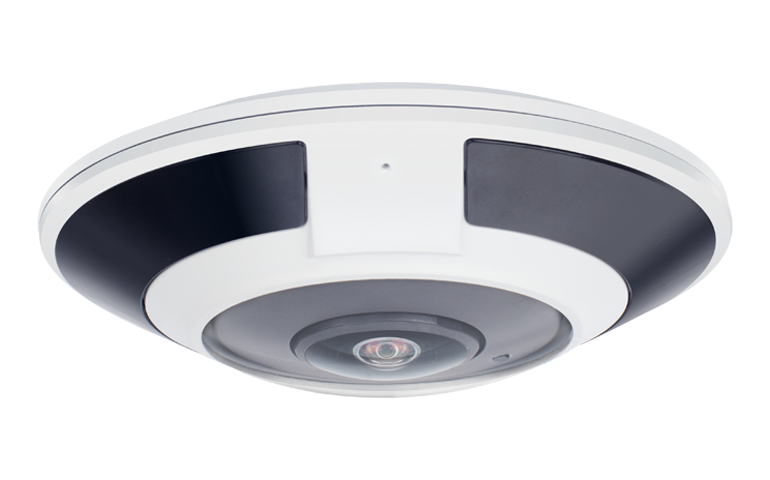

Ganz - ZN8-F12F18NL - 12 MP, 360 Degree Fisheye Indoor/Outdoor Dome, POE, 12VDC
Part number:
ZN8-F12F18NL
Price:
12 MP, 360 Degree Fisheye Indoor/Outdoor Dome, POE, 12VDC
Features:
- 1/1.7” Progressive Scan CMOS
- 360° Panoramic
- 12 Megapixel Resolution
- 3D DNR, dWDR, ICR, BLC, ROI, Defog, EIS
- 6 Smart IR LEDs (49’ range)
- Multiple Dewarping Mode
- IP66
- PoE / 12VDC
| ZN8-F12F18NL | ||
| CAMERA | Image Sensor | 1/1.7” Progressive Scan CMOS |
| Minimum Illumination | Color: 0.009 Lux @ (F1.2,AGC ON), B/W: 0 Lux @ (IR LED ON) | |
| Day / Night Performance | True Day / Night (ICR) | |
| Shutter Speed | 1/5 - 1/20000 | |
| Iris | Fixed | |
| Wide Dynamic Range | dWDR | |
| Digital Noise Reduction | 2D / 3D | |
| Lens | 1.83mm | |
| Field of View | 360° (180° x 180°) | |
| SMART IR LED | 6 IR LEDs (49’ range) | |
| IMAGE | Video Compression | H.265 High / Main / Baseline Profile, MJPEG |
| Bit Rate (CBR / VBR) | Main stream:500Kbps-16Mbps; Sub stream 100Kbps-8Mbps | |
| Audio Compression | G.711, RAW PCM | |
| Max. Resolution | 12 Megapixel (4000 x 3000) @ 20fps | |
| Stream | Stream1: 4000×3000 @20fps, 4096×2160/3840×2160/ 3000×3000/2560×2560/1920×1080 @25/30fps Stream 2:1280×960/D1/720×720 @25/30fps | |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness | |
| Dewarping | 1F+3/5/7,4PTZ, Fisheye,180/360 degrees panorama | |
| HLC | Yes | |
| NETWORK | Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast |
| Alarm Trigger | Motion detection, Network disconnect, Disk alarm ,I/O alarm | |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player | |
| Security | User Security authentication, Reset, Hardware WatchDog | |
| Languages | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian | |
| INTERFACE | Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio In / Out | 1 Ch Audio in / 1 Ch Audio out (Built-in microphone) | |
| Alarm In / Out | 1 Ch Alarm in / 1 Ch Alarm out | |
| Edge Storage | Micro SD/SDHC/SDXC slot, Max 128GB | |
| POWER | Power Supply | 12VDC / PoE |
| Power Consumption | 5W (IR LED Off) / 9W IR LED (On) | |
| Operating Temperature/ Humidity | -40°F ~ 140°F / Less than 90% RH | |
| PHYSICAL | Weather Rating | IP66 |
| Dimensions | 5.1”(Ø) x 1.5”(H) / 130mm(Ø) x 38.3mm(H) | |
| Weight | 1.1lbs / 500g | |
| Certifications | CE, FCC, ONVIF (Profile S & G) | |
