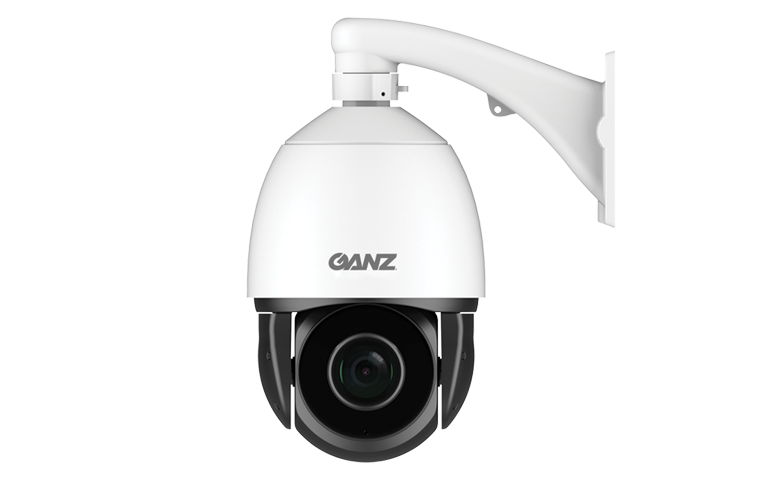

Ganz - ZN8-P3X30DL-H - 3MP Outdoor 30x PTZ Dome with a 4.5-135mm Lens and Smart IR
Part number:
ZN8-P3X30DL-H
Price:
3MP, Outdoor Smart IR 30x PTZ, 4.5-135mm, WDR, 24VAC, IP66.
Features:
- 1/2.8" Progressive Scan CMOS
- 30X Optical Zoom,16X Digital Zoom
- HD 3MP
- Multiple Streams
- Smart IR Range 200m
- Auto Tracking
- Low bitrate, good low-light performance
- 3D DNR,WDR,ICR, IVS
- Auto-Tracking
- IP66
| Model | ZN8-P3X30DL-H |
| Image Sensor | 1 / 2.8” Progressive Scan CMOS |
| Minimum Illumination | Color 0.01Lux (F1.2, AGC ON); b/w 0Lux (IR LED ON) |
| Day / Night Performance | True Day / Night (ICR) |
| S/N Ratio | 55dB |
| Wide Dynamic Range | Digital WDR (120dB) |
| Shutter Speed | 1/5-1/20000s |
| Digital Noise Reduction | 2D / 3D |
| Image Enhancement | BLC / HLC / WDR |
| White Balance | Auto / Tungsten / Fluorescent / Daylight / Shadow / Manual |
| Gain Control | Auto / Manual |
| Mirror / Defog | Yes / Yes |
| Region of Interest (ROI) | Off / On (8 Zone) |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| IR LED | 10 IR LEDs (656’ range) |
| Max. Resolution | 2048 x 1536 @30fps |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 4.5-135mm (Motorized) / F1.6 ~ F1.4 |
| Angle of View | 59.8° ~ 2.3° |
| Zoom | 30x Optical / 16x Digital |
| Focus Control | Auto / Manual |
| Close Focus Distance | 1000mm~1500mm |
| Pan/Tilt Range | Pan: 0°~360° endless, Tilt: -10°~90° |
| Manual Control Speed | Pan: 0.1°~180°/s, Tilt: 0.1°~90°/s |
| Preset Speed | Pan: 180°/s, Tilt: 90°/s |
| Preset | 400 |
| PTZ Mode | 6 Track, 12 Tour, 12 Scan |
| Speed Setup | Auto / Manual (0-8) |
| Idle Motion | Activate Preset / Scan / Tour / Track if there is no command in the specified period |
| Auto Tracking | Yes |
| All specifications are subject to change without notice. | |
| ZN8-P3X30DL-H | 3 Megapixel Network IR PTZ Dome |
| Model | ZN8-P3X30DL-H |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Audio Interface | 1ch Audio In,1ch Audio Out |
| Audio Compression | G.711,RAM_PCM |
| Audio Bit Rate | 8kbps (G.711), 16kps (RAW_PCM) |
| Bit Rate (CBR / VBR) | Stream1: 200kbps~12Mbps, Stream2: 100kbps~6Mbps, Stream3: 100kbps~6Mbps |
| 3 Streams | Stream1: 2048×1536 / 1920×1080 / 1280×720 @25 / 30fps |
| Stream2: D1 / VGA / 640×360 / CIF / QVGA @25 / 30fps Stream3: VGA / CIF/ QVGA @25 / 30fps | |
| Network Protocols | IPv4 / IPv6, 802.1x, HTTP, HTTPS, TCP / IP, UDP / IP, RTSP, DHCP, NTP, RTCP / RTP, PPPoE, SMTP, |
| DNS, UPnP, FTP, APR, SNMP | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Management Software | SunView |
| Streaming Method | Unicast |
| Max User Access | 10 Users |
| Edge Storage | NAS, Local PC for instant recording, Micro SD card 128GB |
| Smart Phone | IOS, Android |
| System Compatibility | Onvif, CGI |
| Web Viewer | <IE11, Chrome, Firefox |
| Alarm | 7ch Alarm In, 2ch Alarm Out |
| RS485 | Yes |
| BNC Output | Yes |
| Reset Buttom | Built-in |
| Power Supply | 24VAC / PoE (Adapter optional) |
| Power Consumption | Less than 40W |
| Operating Temperature | Starting Temperature -40°F ~ 140°F (-40°C ~ 60°C) Working Temperature -67°F ~ 140°F (-55°C ~ 60°C) |
| Storage Conditions | Less than 90% RH |
| Weather Rating | IP66, TVS4000V |
| Material | Metal |
| Dimensions | 8.9”(Ø) x 14.3”(H) / 226mm(Ø) x 362.8mm(H) |
| Weight | 11.5 lbs / 5.2 kg |
| Certifications | CE, FCC, IP66 |
