Ganz - ZN8-P4X30DL-H - 3MP Outdoor 30x PTZ Dome with a 4.5-135mm Lens and Smart IR

Product Overview

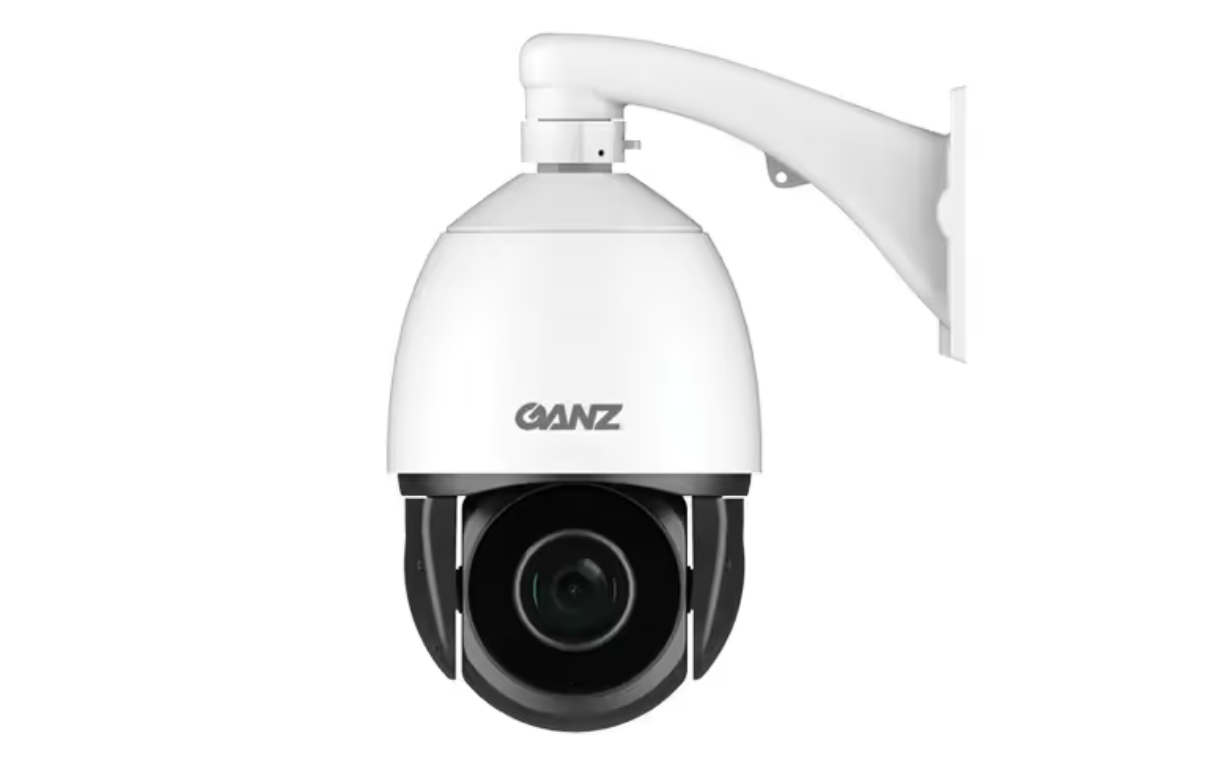

The Ganz ZN8-P3X30DL-H is a 3MP network IR PTZ dome camera with a 1/2.8-inch progressive-scan CMOS sensor and 30x motorized optical zoom. It delivers up to 2048 × 1536 resolution at 30 fps and combines True Day/Night imaging, 10 Smart IR LEDs with a 656 ft range, auto tracking, and intelligent perimeter analytics. The metal IP66 housing supports 24VAC or PoE operation for demanding outdoor surveillance installations.

Key Configuration

Model: ZN8-P3X30DL-H | Resolution: 3MP, up to 2048 × 1536 at 30 fps | Lens/Zoom: Motorized 4.5-135mm, 30x optical and 16x digital zoom | Connectivity: 10/100Mbps RJ-45, ONVIF, CGI, RS-485, BNC | Protection: IP66, 4kV TVS surge protection

Key Features

• · 1/2.8-inch progressive-scan CMOS sensor provides 3MP resolution
• · Motorized 4.5-135mm lens provides a 59.8° to 2.3° viewing angle
• · 30x optical zoom and 16x digital zoom support detailed long-range observation
• · 10 Smart IR LEDs provide illumination up to 656 ft
• · True Day/Night operation uses an ICR filter for low-light imaging
• · Supports 2D/3D noise reduction, digital WDR, BLC, HLC, defog, and ROI
• · Auto tracking and IVS analytics support perimeter, virtual fence, loitering, object, speed, and illegal-parking detection
• · Pan rotation is endless from 0° to 360° with tilt from -10° to 90°
• · Supports up to 400 presets, 6 tracks, 12 tours, and 12 scan patterns
• · Supports H.265, H.264, and MJPEG compression with three video streams

Technical Context

The PTZ mechanism combines continuous pan rotation, wide tilt coverage, programmable presets, tours, scans, and tracks for flexible area surveillance. Auto tracking can follow detected subjects, while IVS rules analyze events such as virtual-fence crossing, loitering, abandoned or removed objects, abnormal speed, and illegal parking. Triple streaming and H.265 compression help balance image quality, bandwidth, and recording requirements.

Installation Notes

The metal dome measures Ø226 × 362.8 mm and weighs 5.2 kg. It supports 24VAC or PoE power, with maximum consumption below 40W, and includes 7 alarm inputs, 2 alarm outputs, audio input/output, RS-485, and BNC output. The camera is rated IP66 and operates from -55°C to 60°C. Ceiling, wall, corner, and pole mounting accessories are available separately.
