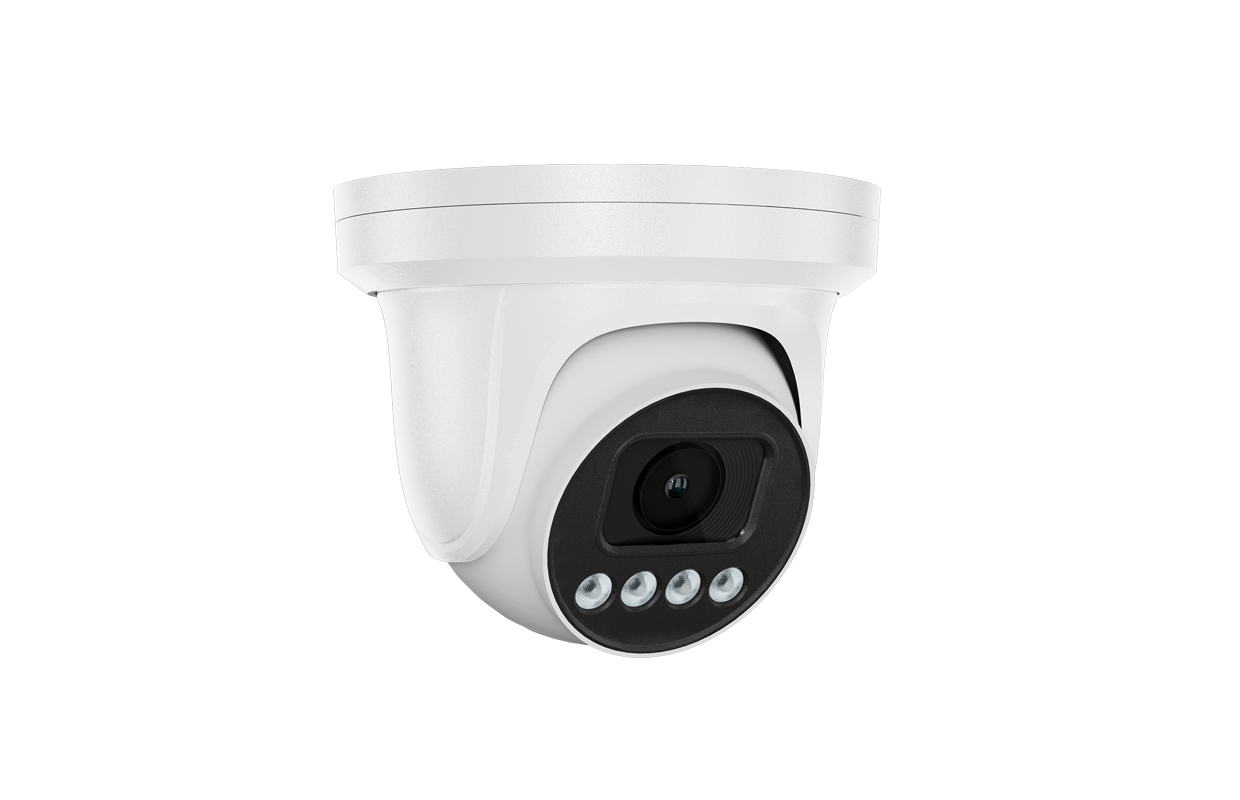

Ganz - ZN8-T6TZF71 - 5MP IR 2.7-13.5 Motorized Varifocal Turret IP Camera
Ganz - ZN8-T6TZF71 - 5MP IR 2.7-13.5 Motorized Varifocal Turret IP Camera
Part number:
ZN8-T6TZF71
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

5MP IR 2.7-13.5 Motorized Varifocal Turret IP Camera



Features

  • 1/2.8” progressive scan CMOS
  • Max. 5MP(2592×1944) 25/30fps resolution
  • WDR, 3D DNR, ROI, HLC, BLC, Defog
  • Support face, human, vehicle detection and capture
  • Smart events: intrusion, single line crossing, double line crossing, loitering, wrong way, people counting
  • Smart IR distance up to 40m
  • Built-in microphone
  • 1/1 channel audio input/output, 1/1 channel alarm input/output
  • Built-in SD card slot
  • IP66
  • PoE/12VDC
  • NDAA Compliant
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution5MP (2592x1944)
Electronic ShutterAuto/Manual, 1/5 ~ 1/20,000s
Min. illuminationColor: 0.03 Lux @ (F1.6, AGC ON) ,B/W: 0 Lux @ (IR LED ON)
Day & NightIR cut filter
IR DistanceUp to 40 m (131.2 ft)
Illumination On/Off ControlAuto/Manual
Pan/Tilt/Rotation RangePan: 0˚ ~ 355˚, Tilt: 0˚ ~ 80˚, Rotation: 0˚ ~ 360˚
Lense
Lens TypeMotorized
IrisFixed Iris
Focal Length2.7 ~ 13.5 mm
F NumberF1.6
Angle of ViewH: 87.5° ~ 26°, V: 64.8° ~ 19.9°
Video
Streaming Capability3 Streams
Stream/Frame RateStream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @ 25/30fps Stream2: D1, VGA, CIF @ 25/30fps Stream3: VGA, CIF, QVGA @25/30fps
Bit Rate ControlCBR/VBR
Bit RateStream1: 200kbps~12Mbps Stream2: 100kbps~6Mbps Stream3: 100kbps~3Mbps
Region of InterestOff/On (8 Zone, Rectangle)
Smart EncodeSupport
Image AdjustmentBrightness, Sharpness, Contrast, Saturation adjustable
Aisle ModeSupport
MirrorSupport
White BalanceAuto/Manual
Day/NightSetting Auto, Day, Night, Time
Smart IRSupport
Noise Reduction2D/3D DNR
Image EnhancementHLC, BLC, Defog
Wide Dynamic RangeTrue WDR
S/N Ratio55dB
Motion DetectionSupport
Privacy MaskingSupport
Smart Function
Multi-ObjectDetection Supports face, human, vehicle detection and capture
Smart EventsIntrusion, Single line crossing, Double line crossing, Loitering, Wrong way, People counting Support alarm triggering by specified target types (human and vehicle)
Audio
CompressionG.711, RAW_PCM
Bit Rate8kbps, 16kps, 64kbps
ProtocolsIPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL
InteroperabilityONVIF, SDK, CGI
Streaming MethodUnicast
Max. User Access10 Users
Web ViewerIE11, Chrome, Firefox, Microsoft Edge
LanguageEnglish, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English
Name
Description
Size
Downloads
File
Datasheet
0.5mb
