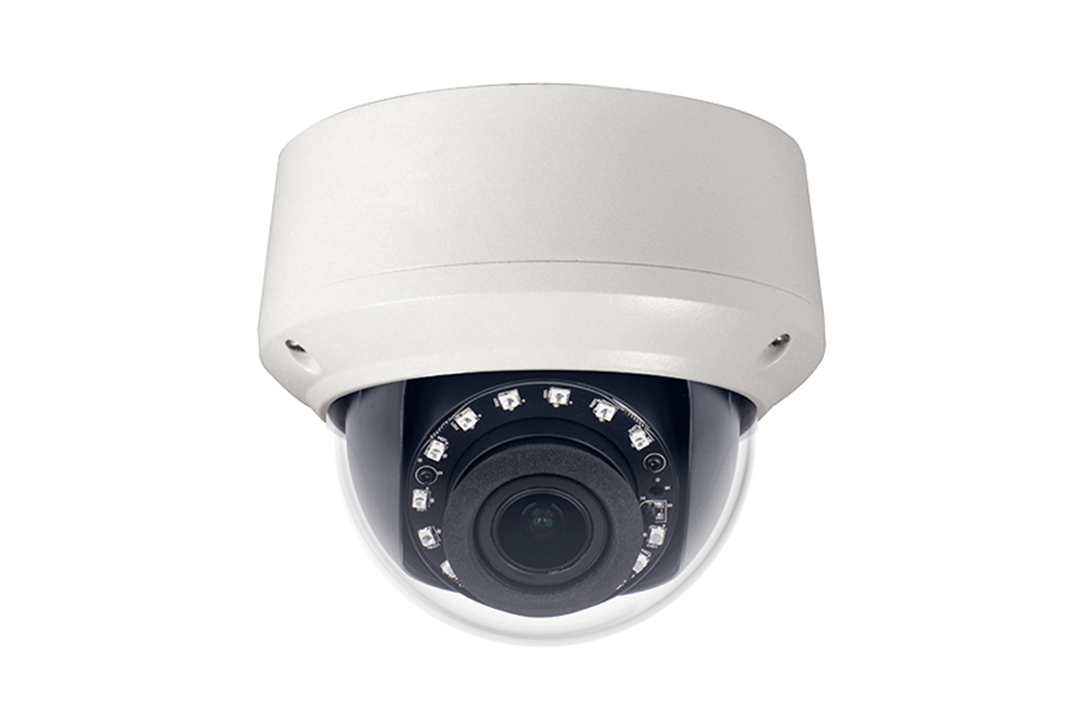

Ganz - ZN8-VD4M212-NIR - 4MP, Outdoor Dome 2.7-12mm, Smart IR, T-WDR, POE/12VDC, IP66, IK10, H264/265
Part number:
ZN8-VD4M212-NIR
Price:
4MP, Outdoor Dome 2.7-12mm, Smart IR, T-WDR, POE/12VDC, IP66, IK10, H264/265
Features
- 1/3” Progressive Scan CMOS
- 2.7-12mm Motorized Lens
- 4 Megapixel
- Smart IR Up to 98’
- 3D DNR, dWDR
- Supports ROI, Corridor Mode, HLC
- IP67, IK10
- PoE/12VDC
| Model | ZN8-VD4M212-NIR |
| Image Sensor | 1 / 3” Progressive Scan CMOS |
| Minim um Illumination | Color:0.01Lux@(F1.2,AGC ON) ; B/W:0LUX@(IR LED ON) |
| Day / Night Performance | True Day / Night (ICR) |
| Wide Dynamic Range | Digital WDR / >120dB |
| Shutter Speed | 1/5s-1/20000s |
| Auto Iris | Fixed |
| Digital Noise Reduction | 2D / 3D |
| Lens | 2.7-12mm Motorized Lens |
| Field of View | 90° ~ 35° |
| IR LED | 15 IR LEDs (98’ Range) |
| Max. Resolution | 2592*1520/2560*1440/20fps,2304*1296/30fps,1920x1080/30fps |
| Video Compression | H.264/265, MJPEG |
| Bit Rate (CBR / VBR) | Main stream: 500kb-12000kb; Sub stream 100kb-6000kb |
| Audio Compression | G.711, RAW_PCM |
| Stream | Stream1 2592*1520/2560*1440/2304*1296/1920x1080 Stream 2 D1 to QVGA |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast |
| Alarm Trigger | Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad, Motion Detection, Network disconnect, Disk alarm, I/O alarm |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player |
| Security | User Security Authentication, Reset, Hardware Watch Dog |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian (Sunell Brand) |
| System Compatibility | Onvif |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Power Supply | 12VDC/PoE (24VAC Optional) |
| Power Consumption | 3W(IR LED OFF) / 5W (IR LED ON) |
| Operating Temperature | Starting Temperature: -22 °F ~ 140 °F (-30 °C ~ 60 °C) Working Temperature: -40 °F ~ 140 °F (-40 °C ~ 60 °C) |
| Operating Humidity | 0% - 90% RH |
| Dimensions | 5.1” (Ø) x 4.4” / 130mm (Ø) x 112mm |
| Weight | 2.0 lbs / 900g |
| Certifications | CE, FCC, Onvif, IP67, IK10 |
