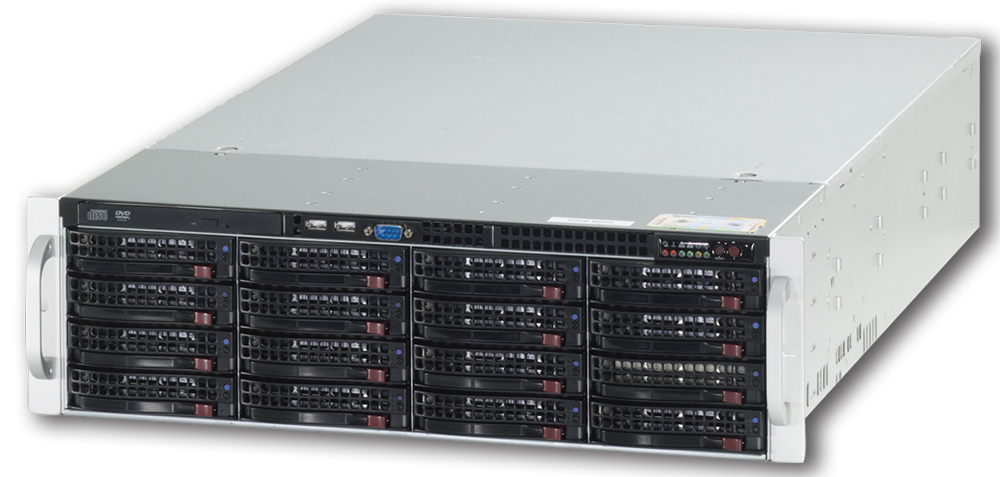

Ganz - ZNR-126TB-RL -10x18TB(180TB raw), 6Gb/s HDD's, RAID5, 240G NVME, Win11 Pro (64bit), Intel i9-12900 (16 Core, 2.40Ghz CPU)
Part number:
ZNR-126TB-RL
Price:
10x18TB(180TB raw), 6Gb/s HDD's, RAID5, 240G NVME, Win11 Pro (64bit), Intel i9-12900 (16 Core, 2.40Ghz CPU), Intel UHD Graphics 770, 32GB RAM, 1x 2.5Gb Nic, 1x 1Gb Nic, 2x Hot Spare HDD's, Redundant Hot Swap PS, Dimensions 660 x 432 x 132 (mm)
Features
- RAID-5 Network Video Recorder (NVR) server for up to 128 channels
- Advanced Intel i9-12900 (16 Core)
- Internal Hot Swappable HDD configurations from 54TB to 144TB
- Two (2) redundant & (2) hot spare drives included, not counted as storage
- Intel 770 UHD 128 Bit/2GB video adapter with HDMI & DVI outputs
- 32GB of RAM fully buffered
- Pre-installed with Windows 11 Pro (64 Bit) on a dedicated solid-state drive
- Advanced cooling system ensures optimal performance & long-term reliability
- NDAA compliant
| ZNR RAID-5 Lite | 48TB ~ 286TB | 288TB ~ 462TB | 4802TB ~ 924TB |
| Power Supply | (2) Antec Trio 820W PS (redundancy) | (2) Antec Trio 820W PS (redundancy) | (2) Antec Trio 960W PS (redundancy) |
| Form Factor | 3U, 16 Bay | 4U, 24 Bay | 4U, 48 Bay |
| Cooling System | 2x 120mm front fans, 2 x 80mm top fans | ||
| Operating System | Windows 11 Pro (64 Bit) on dedicated solid-state drive | ||
| NIC | 3x Intel 1Gbit Ethernet LAN | ||
| DVD/CD RW | N/A | ||
| Storage (SATA-3Gb/s-7200 RPM) | Hot Swap 48TB ~ 286TB | Hot Swap 224TB-378TB | Hot Swap 392TB-756TB |
| Graphics Card | Intel 770 UHD built-in graphics | ||
| CPU | Intel i9-12900 (16 Core) | ||
| RAM | 32GB fully buffered | ||
| Dimensions (W x D x H) | 27.5” x 17” x 5.2” | 27.5” x 17” x 6.9” | 32.8” x 17.2” x 6.9” |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
