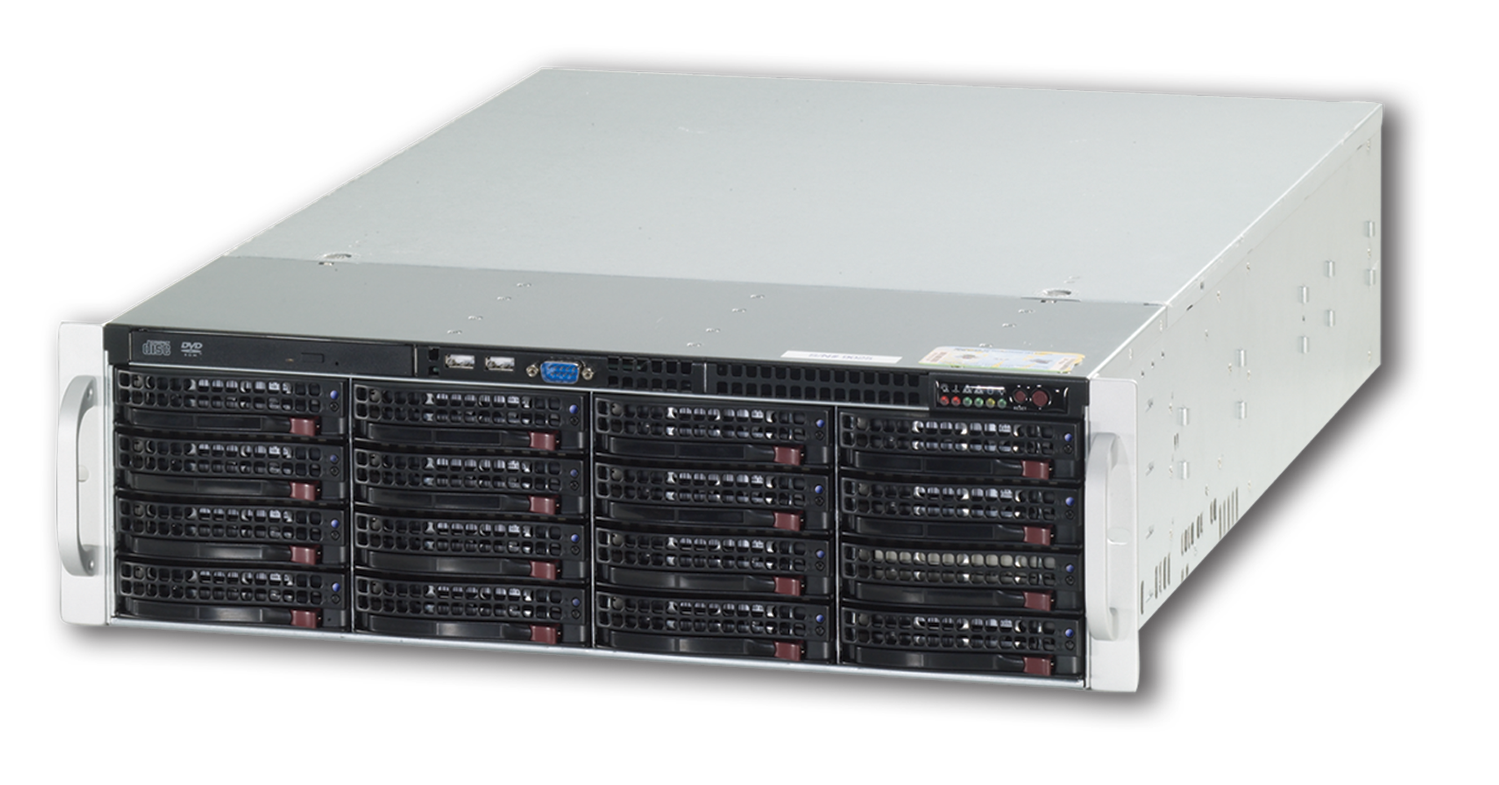

Ganz - ZNR-144TB-R - 11x18TB(198TB raw), 6Gb/s HDD's, RAID5, 240G NVME, Win 11 Pro (64bit), 1 x XEON W5-2465X 16 CORE CPU
Part number:
ZNR-144TB-R
Price:
11x18TB(198TB raw), 6Gb/s HDD's, RAID5, 240G NVME, Win 11 Pro (64bit), 1 x XEON W5-2465X 16 CORE CPU, 1x 64Bit 2G Video card, 32GB RAM, 1x 10Gb Nic, 1x 2.5Gb Nic, 2x Hot Spare HDD's, Redundant Hot Swap PS, Dimensions 660 x 432 x 132 (mm), 26” x 17” x 5.2” - Optional IPMI Remote Management
Features
- RAID-5 Network Video Recorder (NVR) for up to 128 channels
- Advanced Intel Xeon W5-2465X (16 Core) processor
- Internal Hot Swappable HDD configurations from 54TB to 924TB
- Two (2) redundant & (2) hot spare drives included, not counted as storage
- Graphics Card 128 bit/2GB (HDMI/DVI-I/VGA
- 32GB of RAM fully buffered
- Pre-installed with Windows 11 Pro (64-bit) on a 240GB NVME
- The advanced cooling system ensures optimal performance & long-term reliability
- 3-year Warranty
- NDAA compliant
| ZNR RAID-5 | 54TB ~ 286TB | 324TB ~ 462TB | 540TB ~ 924TB |
| Power Supply | (2) Antec Trio 820W PS (redundancy) | (2) Antec Trio 820W PS (redundancy) | (2) Antec Trio 960W PS (redundancy) |
| Form Factor | 3U, 16 Bay | 4U, 24 Bay | 4U, 48 Bay |
| Cooling System | 2x 120mm front fans, 2 x 80mm top fans | ||
| Operating System | Windows 11 Pro (64 Bit) on a 240NVME | ||
| NIC | 1x Intel Xeon WS-2465X Hexadeca-core (16 Core) 3.10GHz Processor | ||
| Storage (SATA-3Gb/s-7200 RPM) | 2x Hot Swap 54TB ~ 286TB | 2x Hot Swap 324TB-462TB | 2x Hot Swap 540TB-924TB |
| Graphics Card | 128 bit/2GB (HDMI/DVI-I/VGA) | ||
| CPU | 26” x 17” x 5.2” | ||
| RAM | 32GB fully buffered | ||
| Dimensions (W x D x H) | 26” x 17” x 5.2” | 27.5” x 17” x 6.9” | 32.79” x 17.24” x 6.92” |
| Optional IPMI Remote Management | Hardware and software-level with IPMI expansion card support, plus real-time monitoring and management software. | ||
