Ganz - ZNR-168TB-R - IP Raid5 NVR with XEON W5-2465X 16-Core CPU
Product Overview
The Ganz ZNR-RAID is a professional 3U RAID-5 Network Video Recorder designed to support up to 128 IP camera channels with Ganz CORTROL and compatible NVR software. This configuration provides 168TB of surveillance storage, two hot-spare drives, and redundant power supplies for reliable continuous recording. An Intel Xeon W5-2465X processor, 32GB fully buffered RAM, and 10Gbps and 2.5Gbps network interfaces support demanding enterprise surveillance workloads.
Key Configuration
Model: ZNR-RAID | Storage: 168TB RAID-5 storage with 2 hot-spare HDDs | Processor/Memory: Intel Xeon W5-2465X, 32GB fully buffered RAM | Connectivity: 1 × 10Gbps NIC, 1 × 2.5Gbps NIC | Operating System: Windows 11 Pro 64-bit on 500GB NVMe | Graphics: 64-bit 2GB graphics card with HDMI, DVI-I, and VGA
Key Features
- · RAID-5 network video recorder supports up to 128 IP camera channels
- · 168TB storage capacity is configured for continuous surveillance recording
- · RAID 5 provides distributed parity and protection against a single drive failure
- · Two hot-spare drives support rapid replacement and array recovery
- · Intel Xeon W5-2465X 16-core processor supports high-throughput NVR workloads
- · 32GB fully buffered RAM supports multi-channel video management
- · Windows 11 Pro 64-bit is installed on a dedicated 500GB NVMe drive
- · 10Gbps and 2.5Gbps network interfaces support high-bandwidth connectivity
- · 64-bit 2GB graphics card provides HDMI, DVI-I, and VGA outputs
- · Redundant power supplies and hot-swappable drive bays improve service continuity
Technical Context
RAID 5 distributes parity data across the storage array, allowing the recorder to continue operating after a single drive failure. Hot-spare drives are reserved for replacement and rebuild operations, while the NVMe system drive keeps Windows and applications separate from the main surveillance storage workload. The high-speed network interfaces provide bandwidth for large camera deployments and client access.
Installation Notes

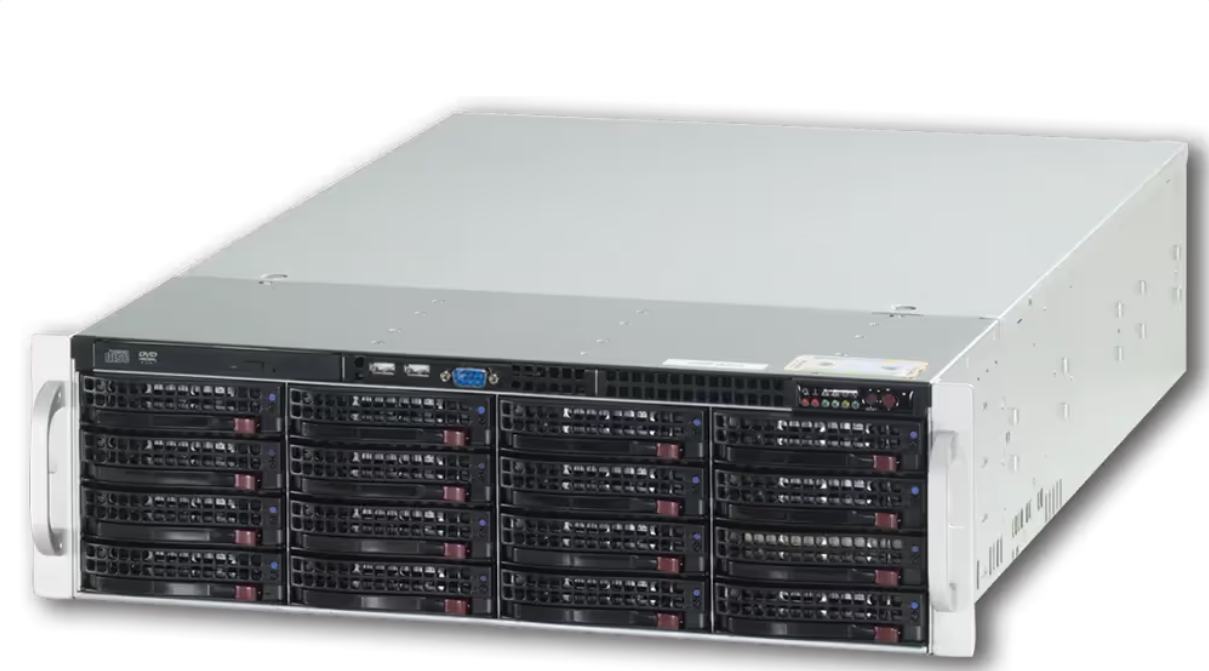

The recorder uses a 3U, 16-bay rackmount chassis measuring approximately 26 × 17 × 5.2 inches (W × D × H). Install it in a compatible rack with adequate airflow and access to the hot-swappable drive bays and redundant power supplies. The stated 168TB capacity may vary after RAID overhead and formatting.
| Technical Specifications | |
| Product Model | ZNR-168TB-R |
| Product Type | RAID-5 network video recorder (NVR) |
| Camera Capacity | Up to 128 IP cameras |
| Form Factor | 3U rackmount chassis 16-bay design with hot-swappable drive support |
| Processing and Operating System | |
| Processor | Intel Xeon W5-2465X CPU 16-core processor, 3.10 GHz |
| Graphics Card | 64-bit graphics card with 2GB video memory HDMI, DVI-I, and VGA outputs |
| System Memory (RAM) | 32GB fully buffered RAM |
| Operating System | Windows 11 Pro, 64-bit, pre-installed |
| Primary OS Drive | 500GB NVMe solid-state drive (SSD) |
| Storage and RAID | |
| Internal Storage | 168TB raw storage capacity |
| RAID Configuration | RAID 5 |
| Hard Drive Specification | SATA, 3Gb/s, 7,200 RPM |
| Hot Spare Drives | 2 hot spare drives included Hot spare drives are not counted as storage capacity |
| Drive Bays | 16 hot-swappable bays |
| Network Interfaces | |
| Network Interfaces | 1 × 10Gb Ethernet NIC 1 × 2.5Gb Ethernet NIC |
| Power and Cooling | |
| Power Supply | 2 × Antec Trio 820W redundant power supplies |
| Cooling System | 2 × 120mm front fans 2 × 80mm top fans |
| Mechanical | |
| Installation | Rack-mounted |
| Dimensions (W × D × H) | 26 × 17 × 5.2 in |
| Management | |
| Optional IPMI Management | Supported with an IPMI expansion card Provides remote hardware management and real-time monitoring |
| Certifications and Compliance | |
| Compliance | NDAA compliant |
| Warranty | 3-year warranty |
