Ganz - ZNR-168TB-RL - IP Raid5 NVR with Intel i9-14900 16 Core CPU

Product Overview

The Ganz ZNR-RAID-lite is a 3U RAID-5 Network Video Recorder designed to support up to 128 IP camera channels with Ganz CORTROL and compatible NVR software. This configuration combines seven 24TB 6Gb/s HDDs, two hot-spare drives, and redundant hot-swappable power supplies for resilient, high-capacity video recording. An Intel Core Ultra 9 285 processor, 32GB RAM, and dual network interfaces provide a strong platform for continuous surveillance operations.

Key Configuration

Model: ZNR-RAID-lite | Storage: 7 × 24TB HDD, 168TB raw capacity, RAID 5, 2 hot-spare HDDs | Processor/Memory: Intel Core Ultra 9 285, 32GB RAM | Connectivity: 1 × 2.5Gbps NIC, 1 × 1Gbps NIC | Operating System: Windows 11 Pro 64-bit on 500GB NVMe | Graphics: Intel UHD Graphics 770 | Power: Redundant hot-swappable power supplies

Key Features

• · RAID-5 network video recorder supports up to 128 IP camera channels
• · Seven 24TB 6Gb/s hard drives provide 168TB of raw storage before RAID configuration and formatting
• · RAID 5 provides distributed parity for continued operation after a single drive failure
• · Two hot-spare HDDs support rapid replacement and array recovery
• · Intel Core Ultra 9 285 processor handles demanding recording and client workloads
• · 32GB RAM supports multi-channel video management and background processing
• · Windows 11 Pro 64-bit is installed on a dedicated 500GB NVMe drive
• · Intel UHD Graphics 770 supports local display output for system operation
• · Includes one 2.5Gbps NIC and one 1Gbps NIC for flexible network design
• · Redundant hot-swappable power supplies improve system availability

Technical Context

RAID 5 distributes parity data across the seven-disk array, allowing the recorder to continue operating if one data drive fails. The two hot-spare drives are reserved for automatic or rapid rebuild operations and are not included in the stated 168TB raw capacity. Separating Windows 11 Pro on the NVMe drive keeps system and application activity independent from the main surveillance storage array.

Installation Notes

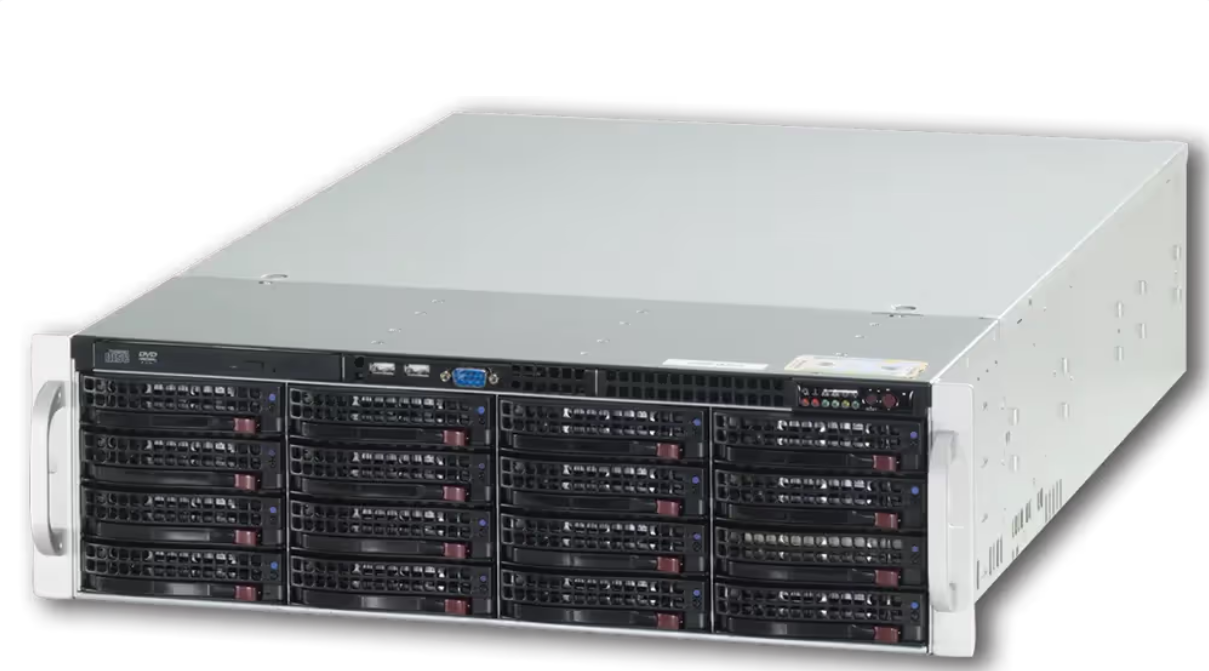

The recorder uses a 3U rackmount chassis measuring 660 × 432 × 132 mm (26 × 17 × 5.2 in). Install it in a compatible equipment rack with adequate front-to-back airflow and access for hot-swappable drives and redundant power supplies. The stated 168TB capacity is raw storage before RAID configuration and formatting.
