Ganz - ZNR-1U-225-24TB - Intel Core Ultra 5 225 CPU Network Video Recorder, 24TB

Product Overview

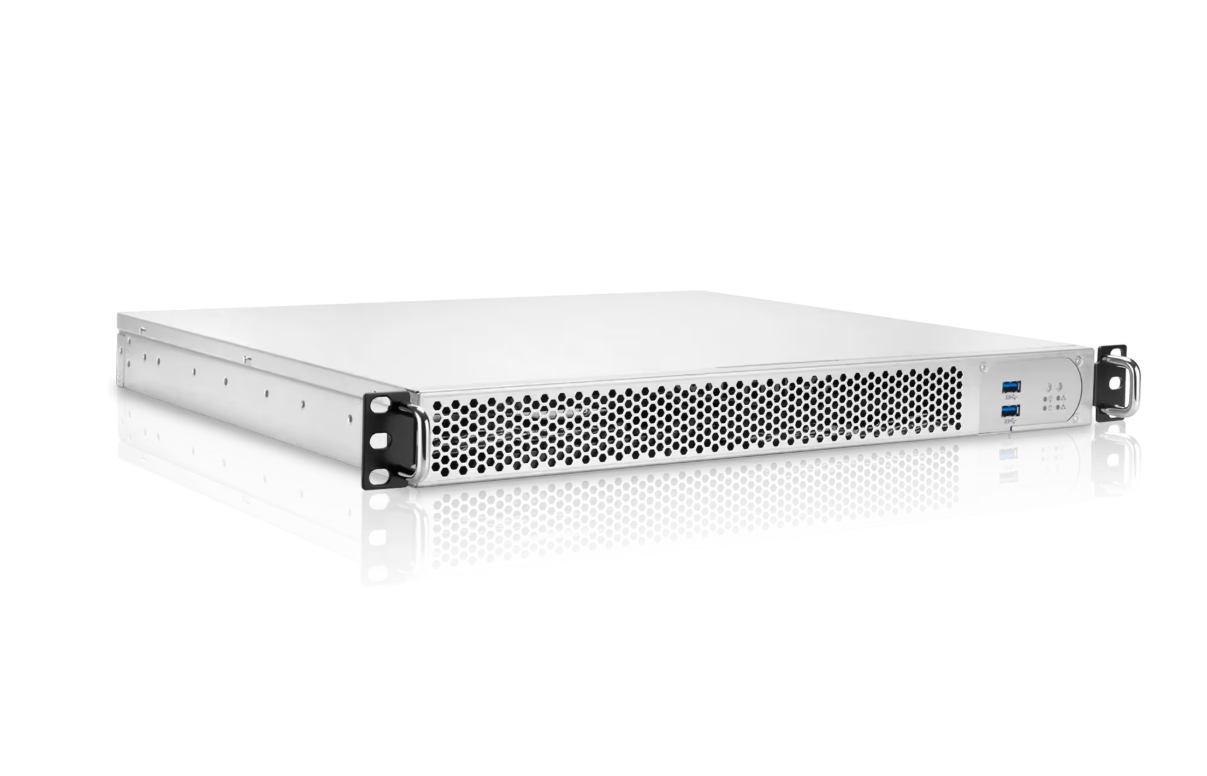

Ganz ZNR-1U-225-24TB is a professional 1U rackmount Network Video Recorder server with 24 TB of internal surveillance-grade storage. It combines an Intel Core Ultra 5 225 processor, a dedicated Windows 11 Pro operating environment, and dual Gigabit network interfaces for high-resolution multi-channel IP video recording and metadata processing in commercial and enterprise systems.

Key Configuration

Model: ZNR-1U-225-24TB | Device Type: 1U rackmount NVR server | Processor: Intel Core Ultra 5 225 | Storage: 24 TB surveillance-grade storage | System Drive: Dedicated SSD | Operating System: Windows 11 Pro | Network: Dual Gigabit Ethernet interfaces | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 1U rackmount form factor fits space-constrained server rooms and data-center racks
• · 24 TB of internal surveillance-grade storage supports extended video retention
• · Intel Core Ultra 5 225 processor supports multi-channel video decoding and metadata processing
• · Designed to handle concurrent high-resolution IP camera streams including 4K and 8K video
• · Windows 11 Pro provides the operating environment for the NVR server
• · Dedicated SSD separates operating-system activity from surveillance database write operations
• · Dual Gigabit network ports support separation of camera traffic and management traffic
• · Supports continuous high-definition recording and centralized video archiving
• · Optimized for Ganz CORTROL Premier standalone and CORTROL Global distributed deployments
• · Supports CORTROL automation rules, interactive E-maps, text insertion, and metadata workflows

Technical Context

The Intel Core Ultra 5 225 processing platform provides the compute foundation for multi-channel video decoding, recording services, and background metadata processing. Running Windows 11 Pro on a separate SSD keeps system operations independent from the high-volume storage activity generated by continuous surveillance recording. The dual Gigabit interfaces can be configured to isolate camera-network traffic from corporate client viewing and remote-management traffic, while the 1U form factor supports dense rack deployments.

Installation Notes

The recorder is intended for installation in a standard 1U server rack and for use with Ganz CORTROL VMS software or as a physical node in a CORTROL Global system. One Gigabit interface can be assigned to the camera network and the second to management or remote-client access. Storage configuration should match the camera count, stream resolution, recording schedule, retention period, and VMS storage policy.
