Ganz - ZNR-1U-225-30TB - Intel Core Ultra 5 225 CPU Network Video Recorder, 30TB

Product Overview

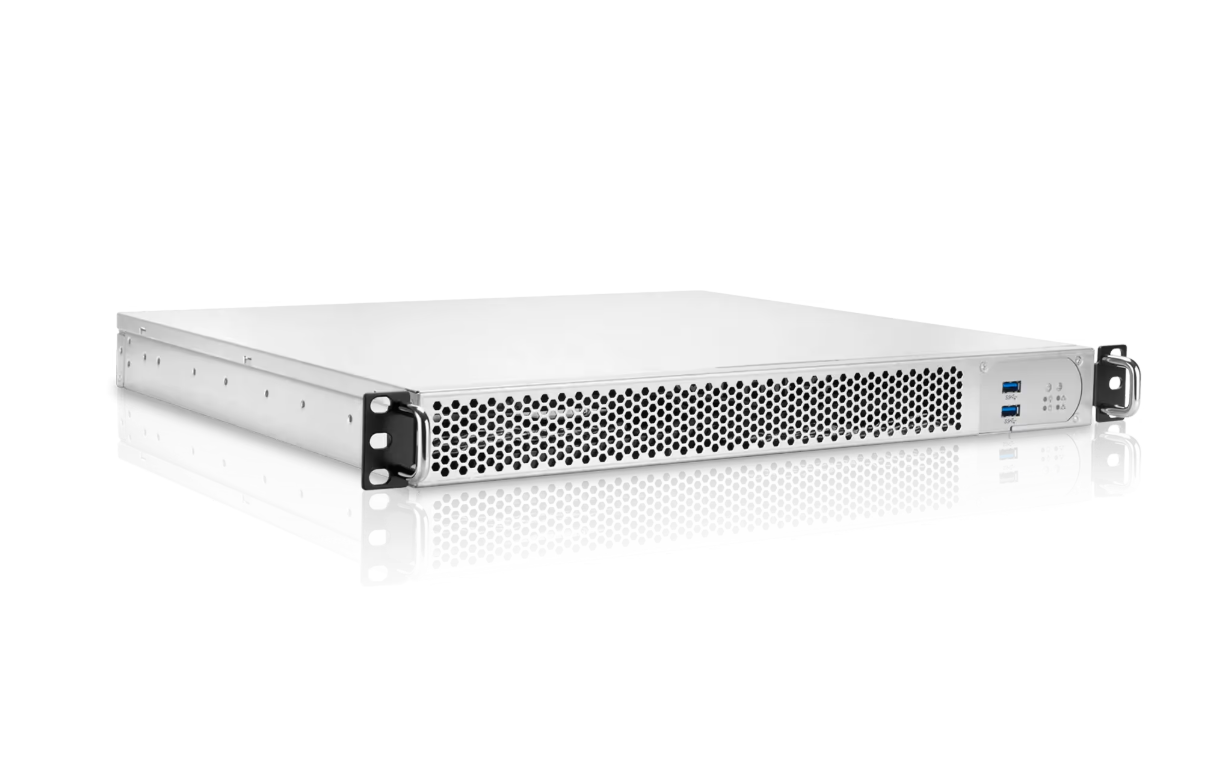

Ganz ZNR-1U-225-30TB is a professional 1U rackmount Network Video Recorder server with 30 TB of internal surveillance-grade storage. It combines an Intel Core Ultra 5 225 processor, Windows 11 Pro 64-bit on a dedicated M.2 SSD, and dual Gigabit network interfaces for high-resolution multi-channel IP video recording and efficient storage in commercial and data-center environments.

Key Configuration

Model: ZNR-1U-225-30TB | Device Type: 1U rackmount NVR server | Processor: Intel Core Ultra 5 225 | Storage: 30 TB surveillance-grade storage | System Drive: Dedicated M.2 SSD | Operating System: Windows 11 Pro 64-bit | Network: Dual Gigabit Ethernet interfaces | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 1U rackmount form factor fits standard 19-inch server racks and structured equipment rooms
• · 30 TB of internal surveillance-grade storage supports extended video retention
• · Intel Core Ultra 5 225 processor supports multi-channel video decoding and IP stream management
• · Designed to process concurrent high-resolution IP camera streams including 4K and 8K video
• · Windows 11 Pro 64-bit provides the operating environment for the NVR server
• · Dedicated M.2 SSD separates operating-system activity from surveillance database write operations
• · Dual Gigabit network interfaces support isolation of camera traffic from client and management traffic
• · Supports continuous 24/7 recording workloads and centralized video archiving
• · Optimized for Ganz CORTROL Premier standalone and CORTROL Global distributed deployments
• · Provides a hardware platform for CORTROL automation, map overlays, text insertion, and metadata workflows

Technical Context

The Intel Core Ultra 5 225 processor provides the processing foundation for high-resolution video decoding, multi-channel stream handling, and background metadata tasks. Running Windows 11 Pro on a separate M.2 SSD keeps operating-system services and security updates independent from the high-volume write operations generated by surveillance recording. The dual Gigabit interfaces can be configured to separate camera-network traffic from remote client and corporate management traffic, while the 1U chassis supports dense rack deployments.

Installation Notes

The recorder is intended for installation in a standard 1U server rack and use with Ganz CORTROL VMS software or as a physical recording node in a CORTROL Global system. One Gigabit interface can be assigned to the camera network and the second to management or remote-client access. Storage configuration should match the camera count, stream resolution, recording schedule, retention period, and VMS storage policy.
