Ganz - ZNR-1U-235-22TB - Intel Core Ultra 5 235 CPU Network Video Recorder, 22TB

Product Overview

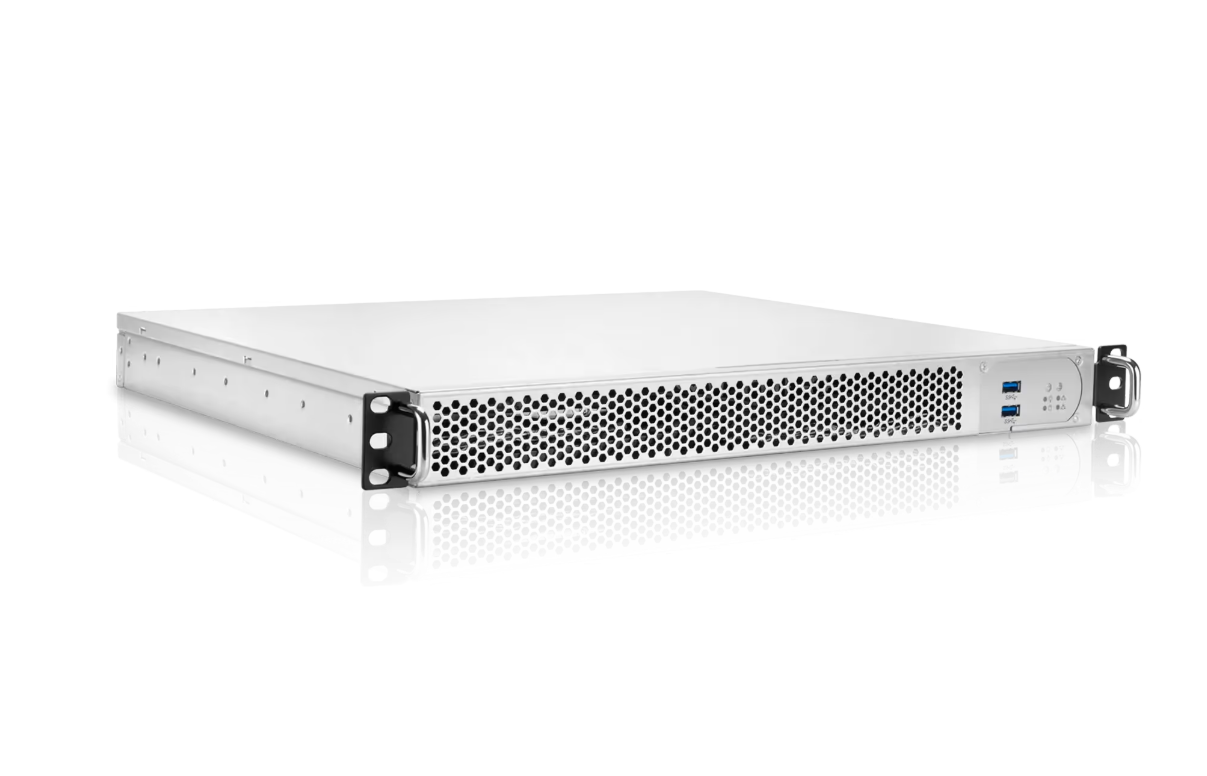

Ganz ZNR-1U-235-22TB is a professional 1U rackmount Network Video Recorder server with 22 TB of internal surveillance-grade storage. It combines an Intel Core Ultra 5 235 hybrid processor with integrated NPU acceleration, Windows 11 Pro on a dedicated NVMe SSD, and dual Gigabit network interfaces for efficient high-resolution video decoding and reliable multi-camera archiving.

Key Configuration

Model: ZNR-1U-235-22TB | Device Type: 1U rackmount NVR server | Processor: Intel Core Ultra 5 235, 14 cores (6 Performance, 8 Efficient) | Storage: 22 TB surveillance-grade HDD storage | System Drive: Dedicated NVMe SSD | Operating System: Windows 11 Pro | Network: Dual Gigabit Ethernet interfaces | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 1U rackmount form factor fits standard 19-inch server racks and data-center environments
• · 22 TB of internal surveillance-grade storage supports extended video retention
• · Intel Core Ultra 5 235 processor uses a 14-core hybrid architecture with 6 Performance and 8 Efficient cores
• · Integrated NPU assists compatible metadata grouping and server-side visual search workloads
• · Designed to process concurrent high-resolution IP camera streams including 4K and 8K video
• · Windows 11 Pro provides the operating environment for the NVR server
• · Dedicated NVMe SSD separates operating-system activity from surveillance database write operations
• · Dual Gigabit network interfaces support isolation of camera traffic from client and corporate traffic
• · Supports continuous 24/7 recording workloads and high-duty surveillance archiving
• · Optimized for Ganz CORTROL Premier standalone and CORTROL Global distributed deployments

Technical Context

The Intel Core Ultra 5 235 combines six Performance cores and eight Efficient cores to balance high-resolution video decoding with storage and system tasks. Its integrated NPU can assist compatible metadata grouping, timeline parsing, and visual search operations. Running Windows 11 Pro on a separate NVMe SSD keeps operating-system services and updates independent from the high-volume write activity generated by continuous surveillance recording. The dual Gigabit interfaces can be configured to separate camera traffic from client and corporate network traffic.

Installation Notes

The recorder is intended for installation in a standard 1U server rack and use with Ganz CORTROL VMS software or as a physical recording node in a CORTROL Global system. One Gigabit interface can be assigned to the camera network and the second to management or client access. Storage configuration should match the camera count, stream resolution, recording schedule, retention period, and VMS storage policy.
